If you have any assembly issues or are missing a part,
please call us for assistance. Our smarTrike® assembly
experts will assist you. DO NOT RETURN TO THE STORE
1-855-SMTRKUS
(1-855-768-7587)
20010002680(
)
X2
A3
A
20010007620
E
20010010680
I
20010015680(
)
X2
O
620
LOOK US UP ON YOUTUBE:
www.youtube.com/SmartTrikeo cial
PLEASE CALL
20010008620
B
20010014620
F
20010011620
J
20010004620
C
200100113620
GG
G
20010012620
K
20010016680
P
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SmarTrike Cruise 620
Summary of Contents for SmarTrike Cruise 620

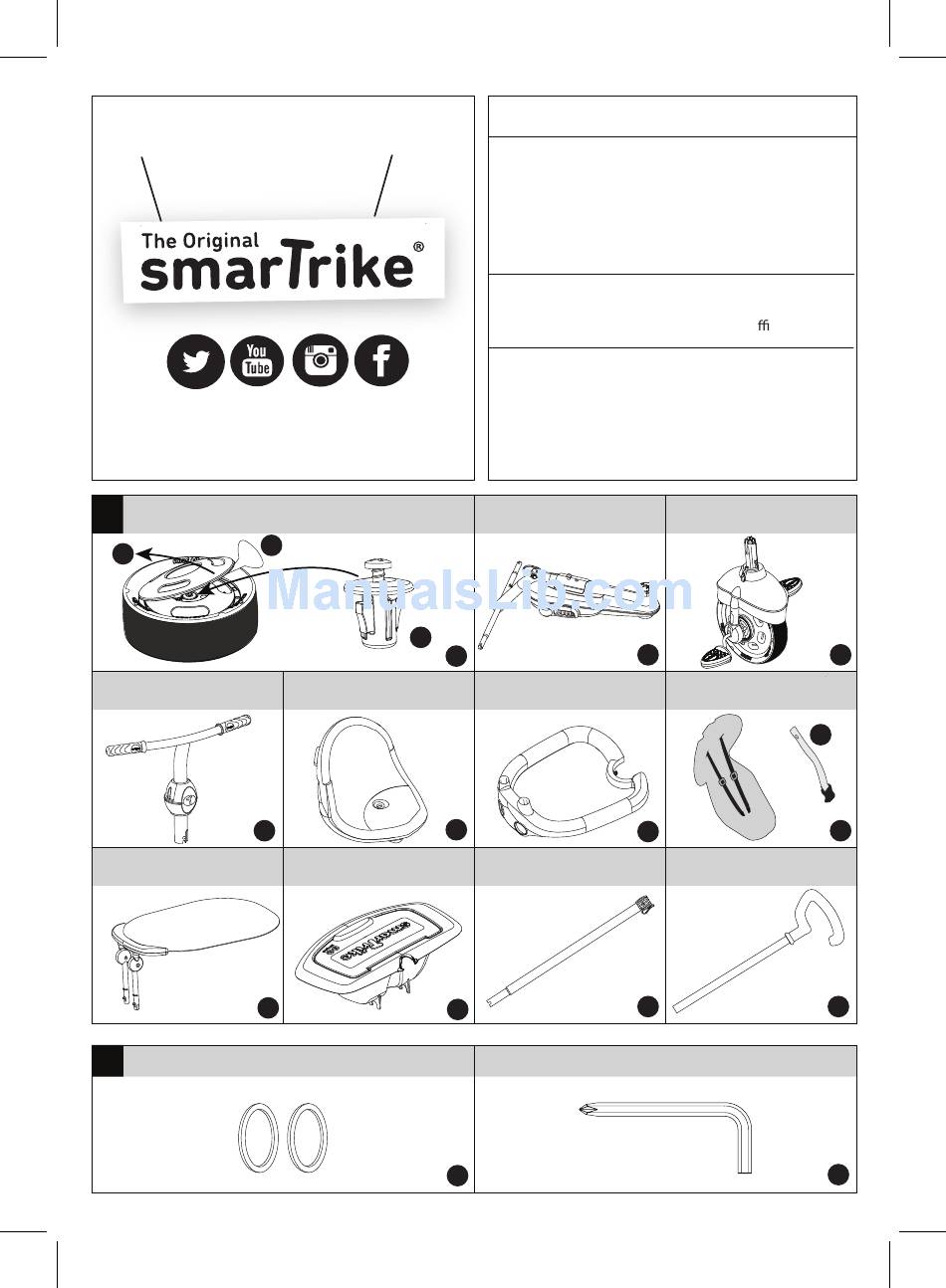

- Page 1 If you have any assembly issues or are missing a part, please call us for assistance. Our smarTrike® assembly experts will assist you. DO NOT RETURN TO THE STORE LOOK US UP ON YOUTUBE: www.youtube.com/SmartTrikeo cial PLEASE CALL 1-855-SMTRKUS www.smarTrike.com...
- Page 2 Step 1 Parts needed to complete this section Place the washer (O) on the axle (as shown) Connect each back wheel (A) to back axle Pull out plastic tabs from each rear wheel (A1) until the wheel cover opens. Take out white plugs+ screws (A3).
- Page 3 Step 2 Parts needed to complete this section Firmly insert white plug (A3) into axle opening, as shown. Align spring lock with dropout hole in axle and push rmly into position, until piece "clicks" into place. By using the Phillips screwdriver (P), screw part A3 into part A rmly tighten clockwise.
- Page 4 Step 3 Parts needed to complete this section Insert part D into part B all the way through the hole (as shown) Insert part D into part C all the way, until the spring meets the retaining head (as shown)
- Page 5 Step 4 Push down on the handlebar. There should be Push the red button and simultaneously no space between the wheel unit and the body turn the wheel 180º until you hear a 'click' . of the trike. The screw should not be visible. Push the apple rmly down to insert, slightly turn until you hear a "click".
- Page 6 Step 5 Parts needed to complete this section Take the seat (E), push the screw through the By using the "Allen" key (P), remove seat & the seat belt (GG). Screw into the most rear facing hole and rmly screw by turning counter clockwise. tighten with Allen key (P).
- Page 7 Step 6 Parts needed to complete this section With little force, push part F into the apple's holes until you hear a "click". Place safety bar holes into protrusions located at the back of the seat.
- Page 8 Step 7 Parts needed to complete this section WARNING: It may be dangerous to leave your child unattended. Use a safety belt as soon as your child can sit unaided. This seat is not suitable for children under 10 months. Any load attached to the handle a ects the stability of the product.
- Page 9 Step 8 Parts needed to complete this section Attach both sides of the canopy (H) into designated slots on head rest (G), until you hear a "click".
- Page 10 Step 9 Parts needed to complete this section By using the Phillips Push basket (I) rmly on screwdriver (P), remove screw to rear axle until it "clicks" by turning counter clockwise. into position (see 1 & 2). Attach basket rmly to vertical frame (as shown), use removed screw and turn clockwise until secured.
- Page 11 Step 10 Parts needed to complete this section Remove the screw from part J by turning counter clockwise. Insert part K into part J. Align the hole in part K with the correct hole in part J. Use Phillips screwdriver (P) to attach.
- Page 12 Step 11 Parts needed to complete this section WARNING: This product should be used on safe ground, it should not be used near steps, slopes, roadways, public highways or wet areas. Remove the securing pin Insert the assembled parent with securing lock, as handle (K) into the retaining shown.
- Page 13 Step 12 For the 10+ month stage, open Pull down both sides of the the footrests by pulling it down. footrest.
- Page 14 Parent control 10 M + When the clutch is pulled away from the wheel there is no pedal control and the wheel is in a free mode position.
- Page 15 Child control...
- Page 16 For the 24+ months stage, fold Push release button to place it up left and right footrest. back into frame (as shown). When the clutch is pushed closed and aligned with the front wheel, child has pedal control. 10M+ 18M+ 24M+ 30-36M 62027841603...
