Summary of Contents for SmarTrike Xtend Bike

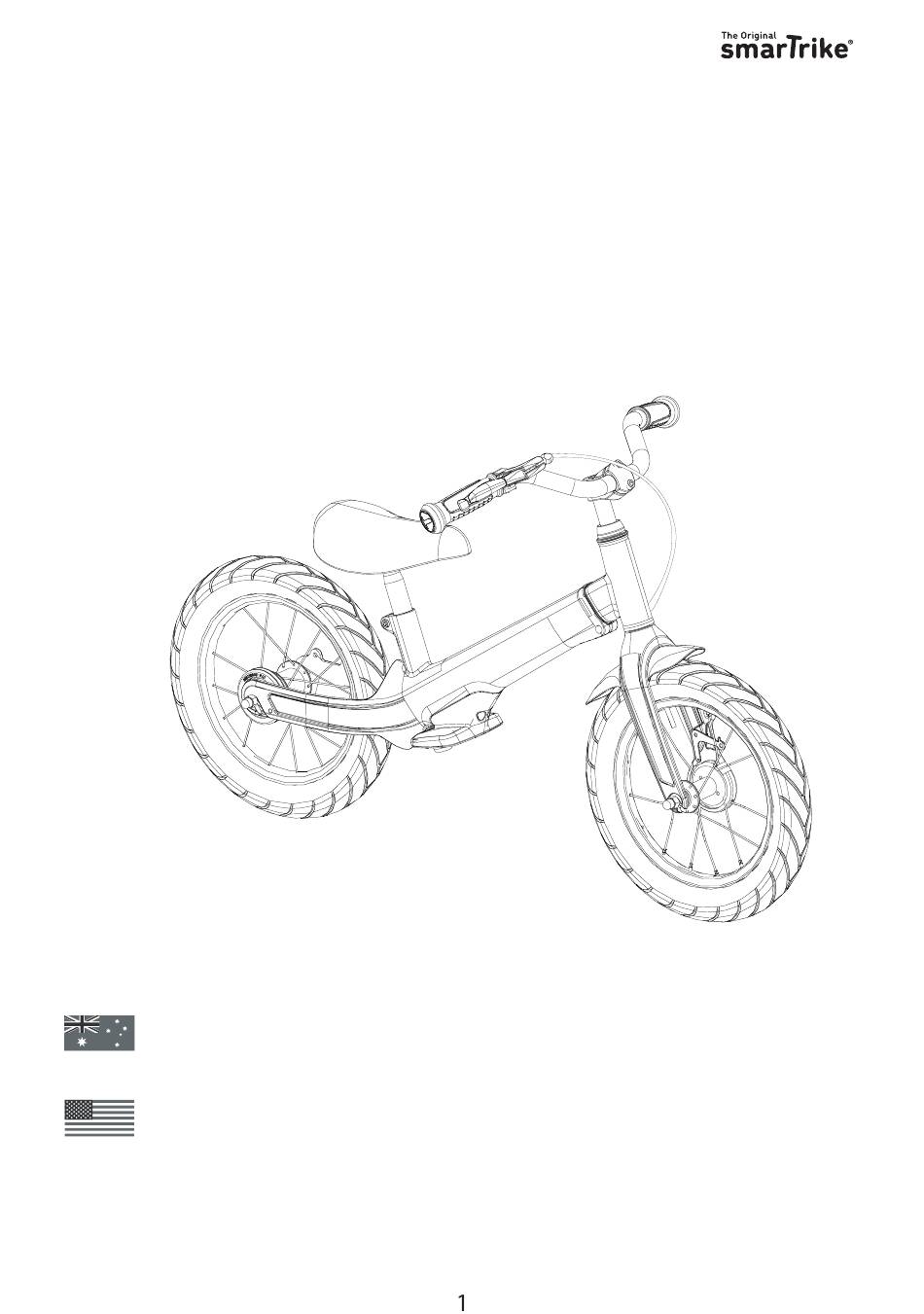

  • Page 1 Xtend Bike Assembly instructions Australia ENGLISH 20828279603...
  • Page 2 Balance Age 3 - 4yrs Pedal Age 4 - 6yrs Bike Age 6 - 7yrs Balance bike mode to pedal mode...
  • Page 3 Bicycle body Seat Pedal mechanism Back Front Chain Chain cover Handlebar Pedal Bell Reflector NOTE: This information is only available on the bicycle itself.
  • Page 4 Please follow all the instructions completely and carefully. Please read the entire manual through before starting assembly or maintenance. In case you are not confident with assembling this unit, please refer to a local bike shop. WARNING: Keep small components away from children during the assembly process. NOTE: All of the directions (right, left, front, rear, etc.) provided in this manual are as seen by the rider riding the bicycle.
  • Page 5 C. Test the brakes to make sure they A. To install the brakes, pull back the silver bolt are functioning. to expose the brake line, and insert the end of the brake line into the designated hole located on the brake lever. B.
  • Page 6: Installing The Pedals

    Installing the Pedals Assembly parts Step 1: Turn the bicycle in an upside down . Turn the bike upside down.
  • Page 7 A. Using the provided Allen key, Save the screws you have just removed for future steps. B. Remove the footrest remove the 3 screws in the footrest. Remove the plastic ring covering the gear on the back wheel. A. Install the chain on the large gear attached to the pedal mechanism. B.
  • Page 8 Use the screws from the footrest to install the pedal mechanism. A. In order to install the gear cover, remove the screw on the back fork by the gear. B. Place the gear cover over the pedal mechanism. C. Click the cover into place D.
  • Page 9 .can be found on the bottom of the crank housing as shown When installing the pedals, check the side indicators (L/R) on the pedals and pedal bars to make sure you are installing them correctly. Once you have matched the right pedal to the right side, use the open wrench to attach the pedals to the pedal bars.
  • Page 10 Extending the bike B. Pull the front half of the bike away from the back half. A. In order to extend the frame of the the bike, use the Allen key to loosen the bolt holding the body together. C. Re-fasten the bolt on the body of the bike.
  • Page 11 A. To raise the handlebar, use the Allen key to loosen the bolt at the top of the handlebar. B. Adjust the handlebar accordingly C. Re-fasten the bolt at the top of the handlebar.
  • Page 12 By/Par www.smarTrike.com Find us at @smarTrike 20828279603...
