SmarTrike Xtend Bike Maintenance Manual

Hide thumbs Also See for Xtend Bike:
Table of Contents

Advertisement

Quick Links

Download this manual
Xtend Bike
Warning and Maintenance
Australia
Usa
20832621303
1
ENGLISH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Xtend Bike and is the answer not in the manual?

Questions and answers

Related Manuals for SmarTrike Xtend Bike

Summary of Contents for SmarTrike Xtend Bike

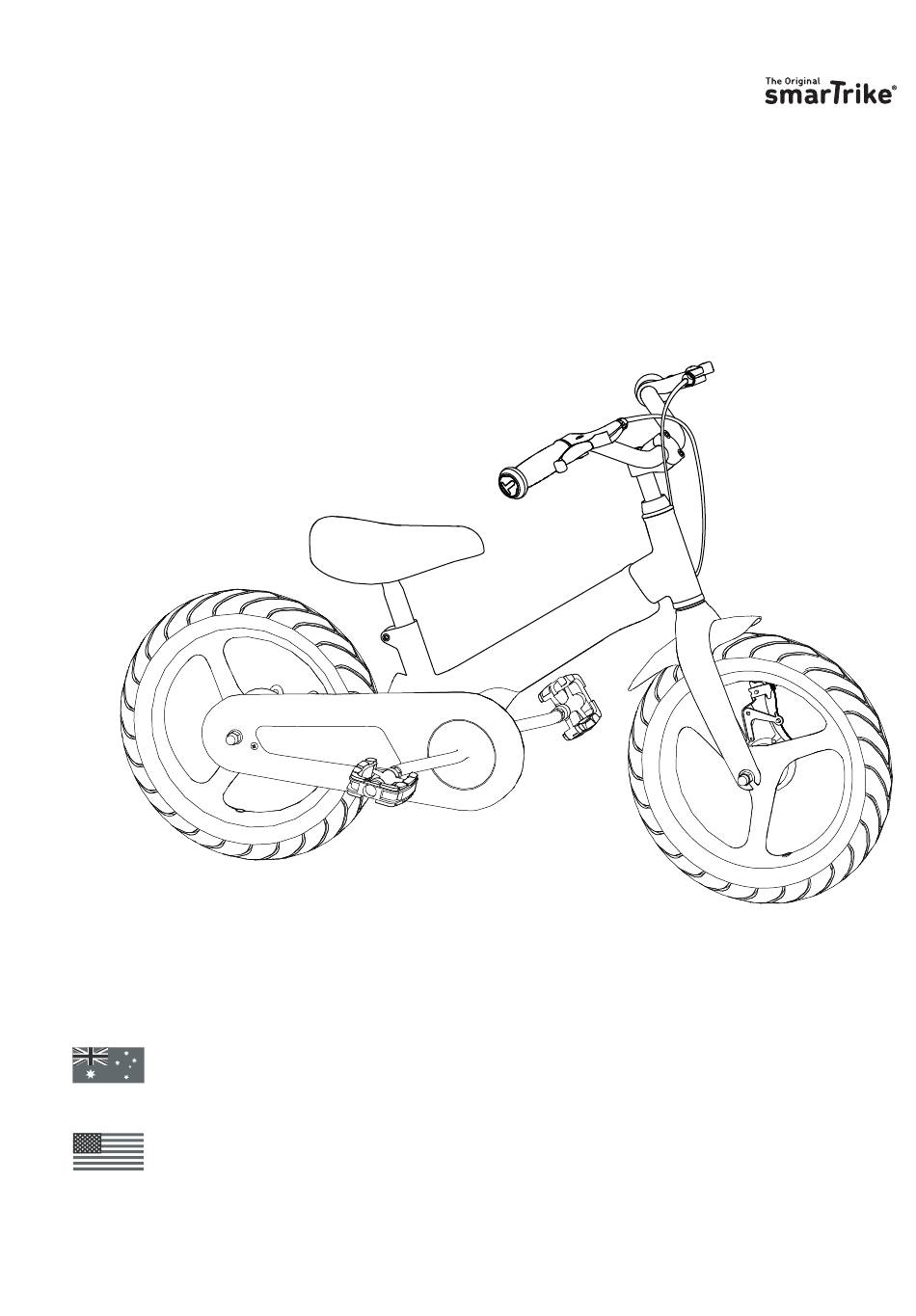

  • Page 1 Xtend Bike Warning and Maintenance Australia ENGLISH 20832621303...

  • Page 2: Owner's Bicycle Identification Record

    Owner’s Bicycle Identification Record Under the body tube NOTE: This information is available only on the bicycle. As shown in the image, our bicycle has the production date code stamped into its body (model / STR / month /year). Warning and Safety Information Meanings of Warnings: This symbol is highly crucial.

  • Page 3: Before You Ride

    Before You Ride WARNING! Before every ride, it is important to carry out the following safety instructions, 1.If the bicycle was unassembled when purchased, before first ride, ensure the bike has been assembled and adjusted exactly as written in assembly guide. 2.Ensure the handlebar and seat height are appropriate to the rider.

  • Page 4: Handlebar Adjustment

    Handlebar Adjustment fig B fig A 6mm / 0.23‘’ If necessary, loosen the handlebar clamp nut/screw F and rotate handlebar into a comfortable riding position (fig A, B). NOTE: Do not over tighten. See torque table for recommended torque. WARNING: If the handlebar clamp in not tight enough, the handlebar can slip in the stem. This can cause damage to the handlebar or stem, and can cause loss of control.

  • Page 5: Testing Stem And Handlebar Tightness

    Testing The Seat - Post Clamp Tightness To test the tightness of the seat-post clamp: Try turning the seat side-to-side. If the Seat Post moves in the seat tube: Tighten the Allen screw which is on the seat-post clamp. Repeat this test again, until the seat post does not move in the seat tube. Testing Stem and Handlebar Tightness To test the tightness of the stem: Straddle the front wheel of the bike between your legs.

  • Page 6: Lubrication And Maintenance

    Maintenance and Service - Tire 1. Bike’s Wear Parts: tires (incl. inner tubes), wheels, brake cable, brake block linings, chain, sprockets, handlebar grips, pedal system. All maintenance work requires expert knowledge, so please consult with your local bike shop. Please use genuine spare parts only. 2.
  • Page 7 Your new bicycle is built using global high-quality standards and is designed only for recreational use. It is not intended for commercial use or extreme riding. Subject to the highlighted limitations, this smarTrike bicycle is warranted to the original purchaser to be free from any kind of defects in materials...
  • Page 8 FOR SERVICE ASSISTANCE CALL (+61)1800951184 Congratulations on the purchas of your new bike! With proper assembly and maintenance it will o er you years of enjoyable riding! IMPORTANT: Carefully read and follow this manual ( and any other materials included with this bike) before riding. Please retain this manual for future use.
  • Page 9 RESPONSIBILITY OF THE OWNER IMPORTANT: Reading and following the information and instructions in this manual are assential to your ability to ride safely. 1. It is the responsibility of the owner or in the case of a younger rider the parents of the rider to be certain all assembly instructions have been followed, even if the bike has been assembled by the seller or a professional assembly company.
  • Page 10 4 years for the frame and fork, 12 months for all Other bicycle component parts. No other express or implied warranty given. smarTrike® will make sure to replace without charge the bicycle frame, fork or those component parts which are ascertained by smarTrike® to be defective in materials or manufacture under normal use and service during the applicable warranty period.

  • Page 11: Warranty Against Defects

    Contact smarTrike® on smartrike.com.au/pages/contact-us or customerservice.au@smartrike.com and explain the problem. An assessment will be made on the product based on the Warranty cover. In follow up, smarTrike® will also advise in writing whether you are required to return the purchased smarTrike product along with a copy of the receipt for inspection and how to do so.
  • Page 12 20832621303...
