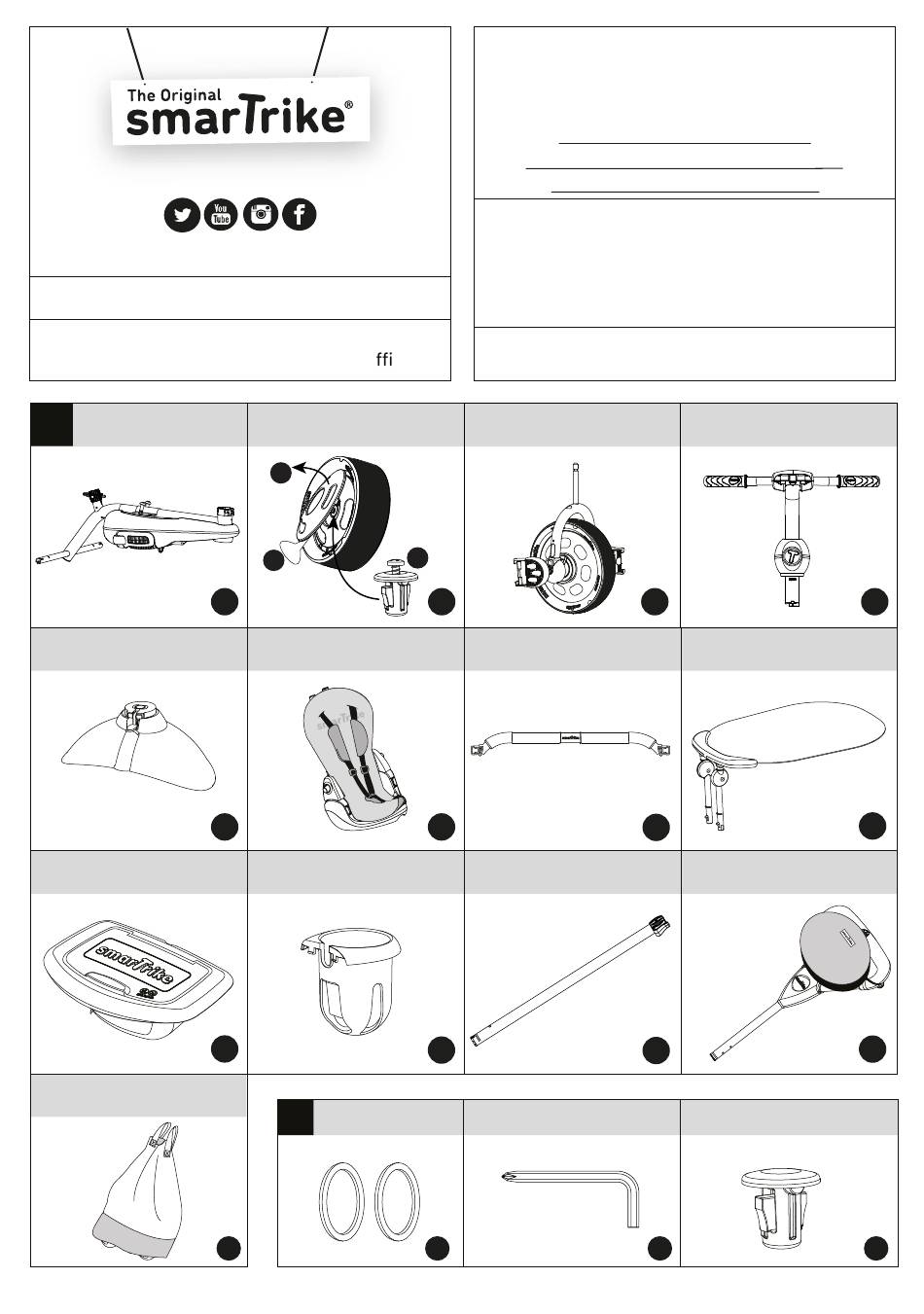

Thank you for buying smarTrike,
If you have any assembly issues or are missing
a part, please call us for assistance. Our
smarTrike® assembly experts will assist you.
DO NOT RETURN TO THE STORE
If you are experiencing problems with this
product, please call our HELP LINE.
9:30am – 5:00pm Monday to Friday
Not Bank Holidays or weekends.
You can also email us: help@mookie.co.uk
for assistance and advice.
(X2)
20010004620
(X3)
B3
B
20010008680
F
20010011680
J
20010016680
(X2)
N
-1-
UK: 0845 5046410
USA: 1-855-SMTRKUS
(1-855-768-7587)
20010005680
C
20010009680
G
20010012680
K
O
D
H
L
20010001630
P

Advertisement

loading
Need help?

Need help?

Do you have a question about the 680 and is the answer not in the manual?

Questions and answers

Summary of Contents for SmarTrike 680

  • Page 1 Thank you for buying smarTrike, If you have any assembly issues or are missing a part, please call us for assistance. Our smarTrike® assembly experts will assist you. DO NOT RETURN TO THE STORE If you are experiencing problems with this product, please call our HELP LINE.
  • Page 2 Step 1 Parts needed to complete this section Place the washer (N) on the axle (as shown) Connect each back wheel (B) to back axle Pull out plastic tabs from each rear wheel (B2) until the wheel cover(B1) opens. Take out white plugs+ screws (B3).
  • Page 3 Step 2 Parts needed to complete this section Firmly insert white plugs (B3) into axle opening, as shown. Align spring lock with dropout hole in axle and push firmly into position, until piece "clicks" into place. By using the Phillips screwdriv- er (O), screw part B3 into part B and tighten clockwise.
  • Page 4 Step 3 Parts needed to complete this section Insert part D into the Insert part E into part body all the way, C all the way through until the ball meets the hole (as shown) the retaining head.
  • Page 5 Step 4 Parts needed to complete this section Push the apple firmly down to insert, slightly turn until you hear a "click". Make sure white connector is not visible. Insert the wheel into the body of the trike all the way through in until the bolt meets the retaining head.
  • Page 6 Step 5 Parts needed to complete this section Take the reclining seat (F), lift bottom seat cover and push the By using the "Allen" screws through the seat's key (O), remove bottom holes. Screw tip into the screw by turning most rear facing hole and firmly counter clockwise.
  • Page 7 Step 6 Parts needed to complete this section Attach both sides of the canopy (H) into designated slots on the seat (as shown), until you hear a "click".
  • Page 8 Step 7 Parts needed to complete this section Push basket (I) firmly on to By using the Phillips screwdriver (O), remove screw by turning rear axle until it "clicks" counter clockwise. into position (see 1 & 2) Attach basket firmly to vertical frame (as shown), use removed screw and turn clockwise until secured.
  • Page 9 Step 8 Parts needed to complete this section Align part J into the designated holes in the center of the handlebar and push down firmly until it "clicks".
  • Page 10 Step 9 Parts needed to complete this section WARNING : Nut must be inserted correctly and secured. Keep the nut in place, remove the screw from part K by turning counter clockwise. Before assembly, ensure parent bag faces upwards and storge Insert part L into part K.
  • Page 11 Step 10 Parts needed to complete this section WARNING: This product should be used on safe ground, it should not be used near steps, slopes, roadways, public highways or wet areas. Insert the assembled parent Remove the securing pin with handle (K+L) into the retaining securing lock, as shown.
  • Page 12 Step 11 Parts needed to complete this section Max. load of basket 2.2 lb / 1 kg. Pull the elastic bands of the bag Attach handles of the bag (M) around the sides of the basket. to parent handle hook. Wrap hook and loop strap around the parent handle.
  • Page 13 Step 12 For the 10+ month stage, open Pull down both sides of the the footrest by pulling it down. footrest. -13-...
  • Page 14 Parent control 10M+ When the clutch is pulled away from the wheel, there is no pedal control and the wheel is in a free mode position. -14-...
  • Page 15 Child control For the 24+ months stage, Push release button to place fold up left and right footrest. it back into frame (as shown). -15-...
  • Page 16 When the clutch is aligned with the front wheel, child has pedal control. In this mode the footrest should be folded. 68027935603 -16-...
