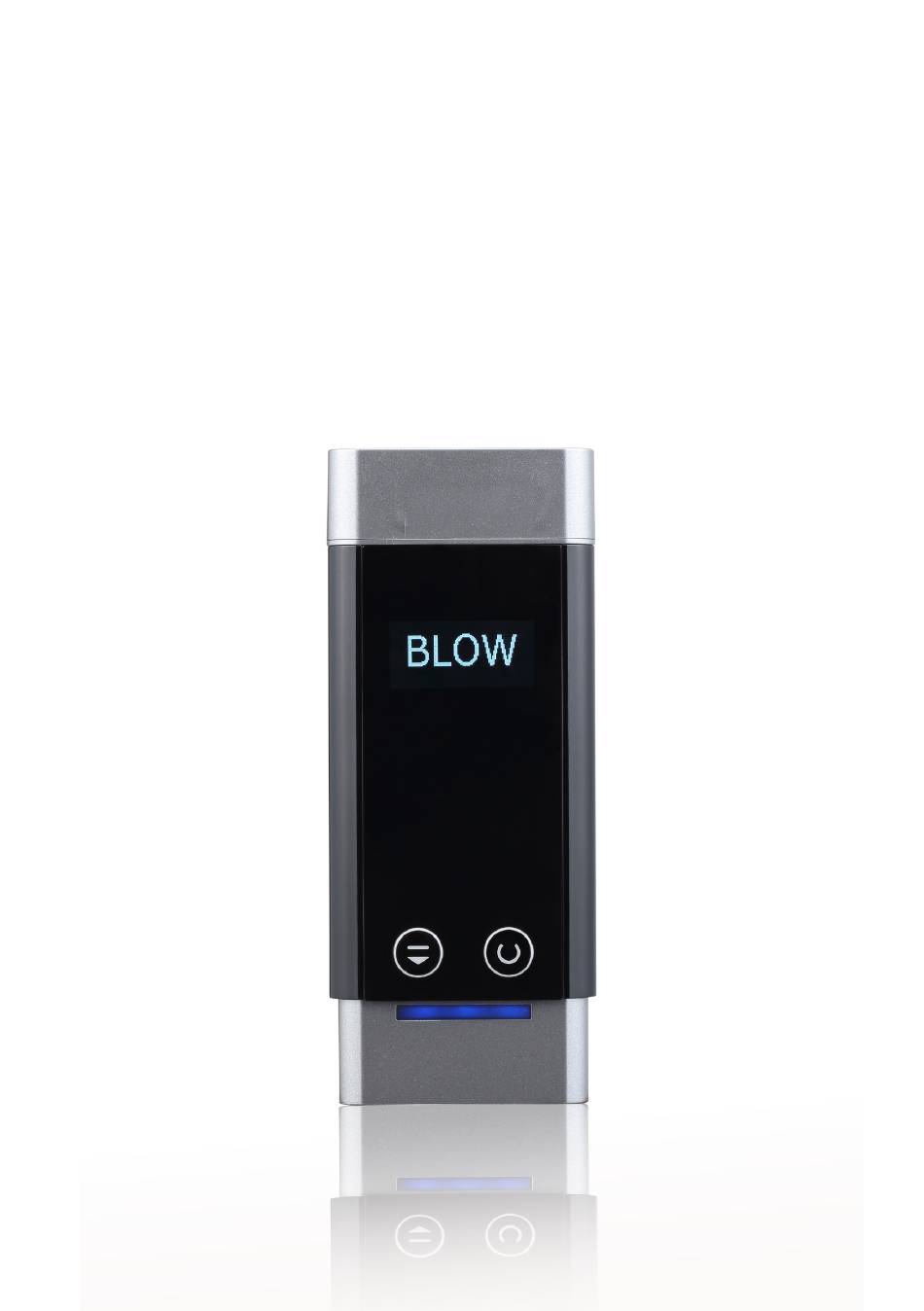

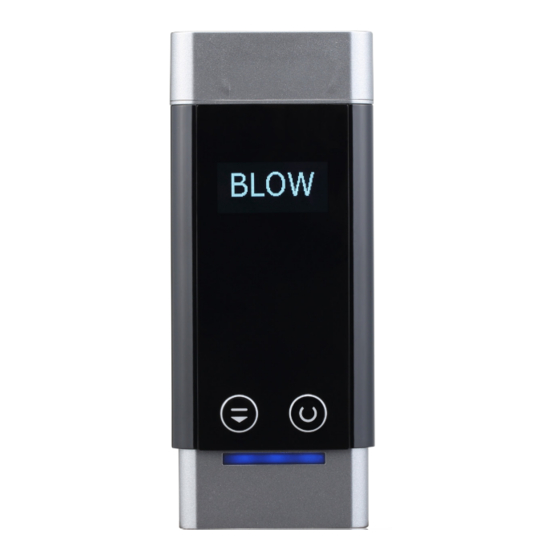

- Page 1 Andatech ® A L X 3 0 0 0 Ignition Interlock USER MANUAL Version 1.1. Updated July 2020.
-
Page 2: Table Of Contents
Thank you for purchasing the Andatech ALX3000 Ignition Interlock Device. The ALX3000 is a state-of-the-art ignition interlock system used to prevent drink driving. It utilises an electrochemical fuel cell to measure the concentration of alcohol in the breath sample expelled from a human subject. -
Page 3: Device Features
Temperature DEVICE FEATURES The ALX3000 can be used with various settings to suit the user. The default settings are as follows: 1. Service and Calibration period is 365 days. 2. If the test result is “PASS”, then you have 5 minutes to start the engine. -
Page 4: Guidelines For Safe Operation
2. Do not use the handset if it is not safe to do so while driving your vehicle. 3. If the ALX3000 requires a breath test during driving, please park in a safe place before performing the test. -
Page 5: Driver Change
1. Turn off the vehicle - the free start time will be displayed on the device. 2. Hold down both the Menu (“M”) and Enter (“U”) buttons on the handset for 3 seconds. 3. ALX3000 is then blocked, and will return to standby mode. 4. New startup procedure is now active. -
Page 6: Emergency Bypass
3. If the service date is less than 7 days, a warning message will be displayed on the device. Maintenance: Service and calibration of the ALX3000 may only be carried out by certified service centers. The ALX3000 shall be serviced and calibrated within an interval of 12 months from the first installation. - Page 7 Unplugging the control box: Follow these instructions to remove the control box if requested by Andatech during a service. 1. Switch off your car engine. Be prepared with the override plug that was provided with your device. 2. Locate the control box (location should have been provided by your installer after installation).
-
Page 8: Measurements & Conditions For Test
The liability for proper functioning of the instrument is irrevocably transferred to the owner or operator in the event the instrument is serviced or repaired by personnel not employed or authorised by Andatech. In such an event, the warranty will be void. WARRANTY... - Page 9 DISCLAIMER • This product must be used strictly in accordance with the instructions in this manual. • This product is intended to provide the user with an indication of alcohol on the breath. However, neither the manufacturer nor the supplier gives any warranty (express or implied) that the product can give any indication of blood alcohol level.
- Page 10 WARNINGS • Allow at least 20 minutes after eating or drinking before testing. Any type of alcohol remaining in the mouth or saliva may interfere with proper testing, and requires about 20 minutes to disperse. This includes alcohol-based mouthwash, or similar products. •...
-
Page 11: Warranty Details
Service during the Warranty Period To claim for warranty, contact us on 1300 800 200 or send and email to support@andatech.com. au to get an RA# (Return Authorisation Number). Ensure that the RA# is clearly stated on the outside of the packaging and that the product is properly packaged so that no damage occurs to the product during transit. - Page 12 AUTHORISED SERVICE CENTRE Andatech Pty Ltd 9 Trade Place Vermont VIC 3133 Email: support@andatech.com.au Ph: 1300 800 200 or +613 8899 6900 SERVICE INFORMATION Installation date : ______ -______- ______ Installed by: Name of service center: Address: Phone: Installer name:...
- Page 13 SERVICE HISTORY Service date: ______ -______- ______ Service date: ______ -______- ______ Performed by: Performed by: (Installer name, service center, phone number) (Installer name, service center, phone number) Service date: ______ -______- ______ Service date: ______ -______- ______ Performed by: Performed by: (Installer name, service center, phone number) (Installer name, service center, phone number)
-
Page 14: Installer Manual
The Andatech ALX3000 complies with the requirements of the EN 50436-1: 2014 (E) standard. Alcohol detection is measured by the handset and all events are stored in the control box. The Andatech ALX3000 Ignition Interlock Device is intended for all vehicles with a 12V to 24V power supply. - Page 15 146 x 60 x 28 mm Warranty 1 Year ALX3000 INSTALLATION Checkpoints before installation: 1. Check if the vehicle manufacturer requires any actions before the power is turned off. 2. Check the vehicle battery and its “best before date” to ensure proper Ignition Locking device function.
- Page 16 Connection instructions All connections must be well soldered and well insulated. Cable restoration Please contact Andatech at 1300 800 200 for more information. Function control • Check that the vehicle cannot be started/driven without an approved breath test. • Check that the vehicle can be started/driven after an approved breath test.
- Page 17 Service indication The service cycle of the ALX3000 is 365 days. The number of remaining days is indicated by the next calibration date and service date in ALX3000 information. If the service date is less than 7 days away, a warning message will be displayed on the display.
- Page 18 • Please contact Andatech within 72 hours if the override function has been used. *please note the “Override period of xx:xx:xx” time. Andatech will not be held liable for any problems or associated costs that occur when you do not visit the service center in time after the override.
- Page 20 Andatech Pty Ltd www.andatech.com.au 1300 800 200...
