Summary of Contents for Andatech Sentry

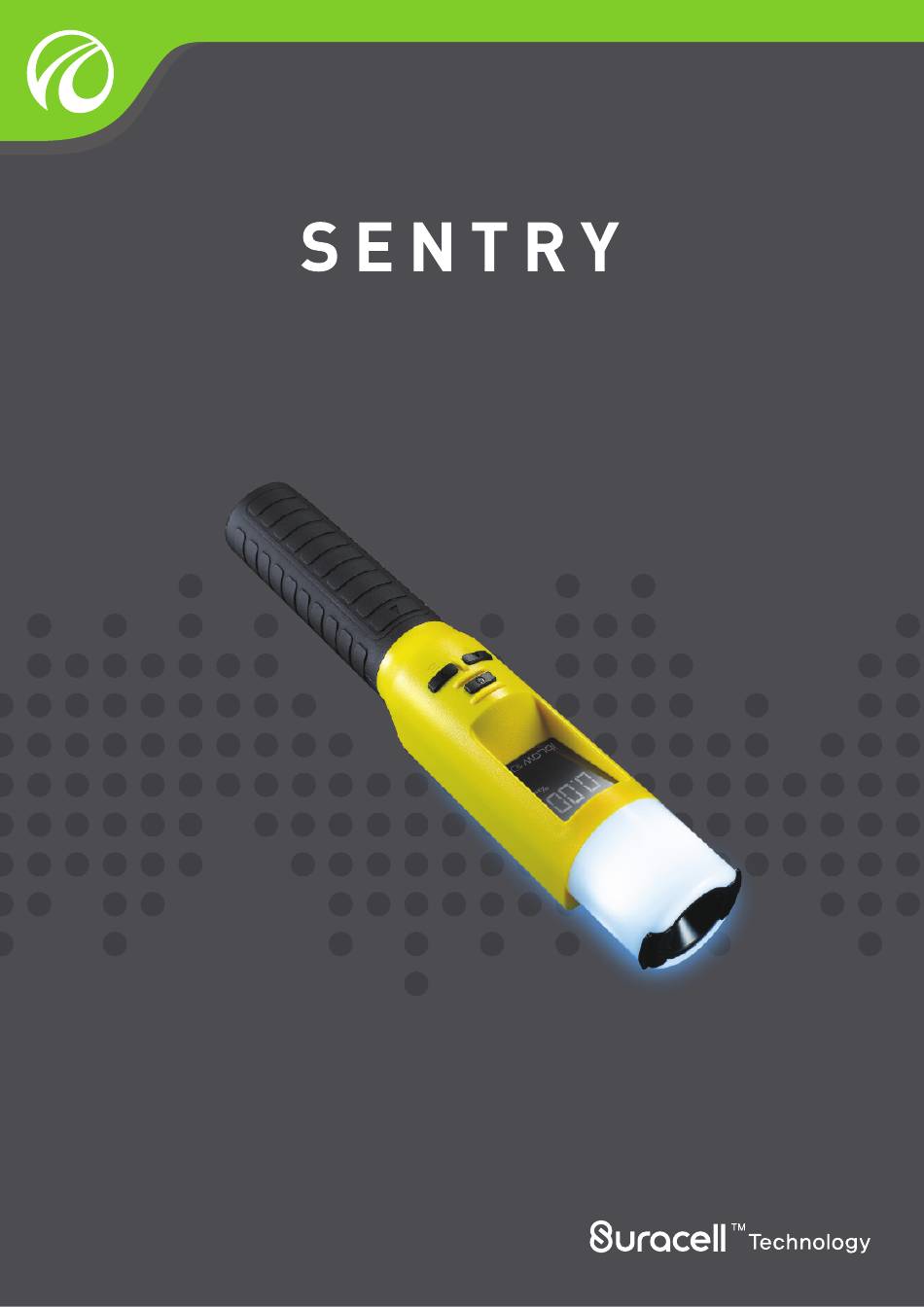

- Page 1 A N D AT E C H Baton Breathalyser USER’S MANUAL...
-
Page 2: Table Of Contents
Thank you for purchasing the Andatech Sentry baton breathalyser. We hope you enjoy owning your Andatech Sentry breathalyser. If you have any questions regarding the unit or want to speak with us further, please visit andatech.com.au or call 1300 800 200 (between 9am and 5:30pm Monday to Friday). -
Page 3: Components
Micro USB port Setting / Down button Lighting / Up button Battery cover & handle Slotted screw Contents 1 x Andatech Sentry 1 x Handstrap 1 x Blow cap 1 x User manual 3 x Blow caps (additional) 6 x AA batteries... -
Page 4: Operating Instructions
Operating Instructions 1. Press the power button . The screen will light up 2. The device will then indicate the battery level as High , Medium 3. The device will then proceed to warm up 4. The device is ready to take a test when it shows “go” 5. -
Page 5: Troubleshooting / Warning Display
LED Light Options 1. Press and hold the left button to enter the LED light options. Continue pressing to change the light colour. 2. Hold down the left button to revert to the default white LED light option. Troubleshooting / Warning Display Escape to “go”... - Page 6 Device is in calibration lock status and cannot be used. Contact technical service provider to get the unit calibrated. Battery level indication This indication will only appear before the warming up status when the device is switched on. Low battery level indication while device is in ready to blow status. The batteries need to be replaced immediately.
-
Page 7: Menu
Menu The Menu mode can be accessed to change the device settings. To enter Menu mode (Some devices may have the menu disabled at the request of the owner): When the device is in “go” status, press and hold the down button until the screen shows Use the up and down buttons... - Page 8 2. Display Mode Setting 3. LED Light Setting 4. Automatic Switch Off Setting...
- Page 9 5. Test Result Display Time Setting 6. Calibration Reminder Setting Note: If device has passed the calibration DAYS or COUNTS, the grace period will be activated, and the “remaining DAYS or COUNTS” to the calibration lock will be displayed whenever the device is turned on. If the device has passed the grace period of the calibration DAYS or COUNTS, the device will be locked and cannot be operated on anymore.
- Page 10 Replacing Batteries 1. Loosen the slotted screw by turning it anticlockwise using a coin or appropriate tools. Remove the Battery cover. 2. Replace the old batteries with six new 1.5V Alkaline Batteries (LR06, AA) or rechargeable batteries. Please make sure that the batteries are inserted in the correct direction (follow the batteries diagram on the rear label).
- Page 11 3. Put the battery cover back into position, with the arrow facing upwards. Align the protrusion with the slow on the device and tighten the slotted screw by turning it clockwise using a coin or appropriate tools. Battery Safety Information • Do not disassemble the batteries! • Only replace with batteries of the same type.
-
Page 12: Specifications
Specifications Sensor Type Suracell sensor (Fuel Cell sensor) Battery AA Size Alkaline Battery Or Rechargeable Battery 6EA Weight 370g (Including batteries) Size (mm) 276(Height) x 44.5(Width) x 44.5(Thickness) Test LED Alert Zero : Green / Low : Red / High : Blinking Red result FND display 0.00/Lo/Hi or Numerical result... -
Page 13: Safety Information
• Calibrate and service the device hardware and software only with authorised Andatech service centres to avoid damage and voiding your product warranty. -
Page 14: Disclaimers
Disclaimers • This product must be used strictly in accordance with the instructions in this manual. • This product is intended to provide the user with an indication of alcohol on the breath. However, neither the manufacturer nor the supplier gives any warranty (express or implied) that the product can give any indication of blood alcohol level. • A person’s BAC (Blood Alcohol Concentration) can only be accurately measured by the administration of a blood test. This product only measures breath alcohol content which, in turn, only gives an approximate indication of blood alcohol concentration. -
Page 15: Measurements & Conditions For Test
The liability for proper functioning of the instrument is irrevocably transferred to the owner or operator in the event the instrument is serviced or repaired by personnel not employed or authorised by Andatech. In such an event, the warranty will be void. -
Page 16: Warranty Details
To claim for warranty, contact us on 1300 800 200 or send and email to support@andatech.com.au to get an RA# (Return Authorisation Number). Ensure that the RA# is clearly stated on the outside of the packaging and that the product is properly packaged so that no damage occurs to the product during transit. - Page 17 Exclusions This warranty does not cover: • Calibration costs. • Any defect caused by an accident, misuse, abuse, improper operation, lack of reasonable care, unauthorised modification, loss of parts, tampering or attempted repair by a person not authorised by the distributor. • Any product that has been damaged by a lightning strike either directly or indirectly or a main power surge or liquid ingress. • The product if it is located outside of Australia. • Any damage caused by improper power input or improper cable connection.
-
Page 18: Recalibration And Service
Visit my.andatech.com.au to register your warranty online and receive calibration reminders. CALIBRATION AND SERVICE Andatech recommends the Andatech® Sentry to be calibrated every 5000 tests or 12 months, whichever comes first. To register your product and book in a calibration, please go to my.andatech.com.au or contact:... -
Page 19: Andatech Guarantee
With this commitment in mind, we will extend the warranty of your Andatech Breathalyser for up to 5 years from the original purchase date as long as you keep it calibrated every 6 months from the date of purchase. - Page 20 Andatech Pty Ltd www.andatech.com.au 1300 800 200 V2.1. Updated 11.10.2017...
