Summary of Contents for Andatech PRODIGY 3

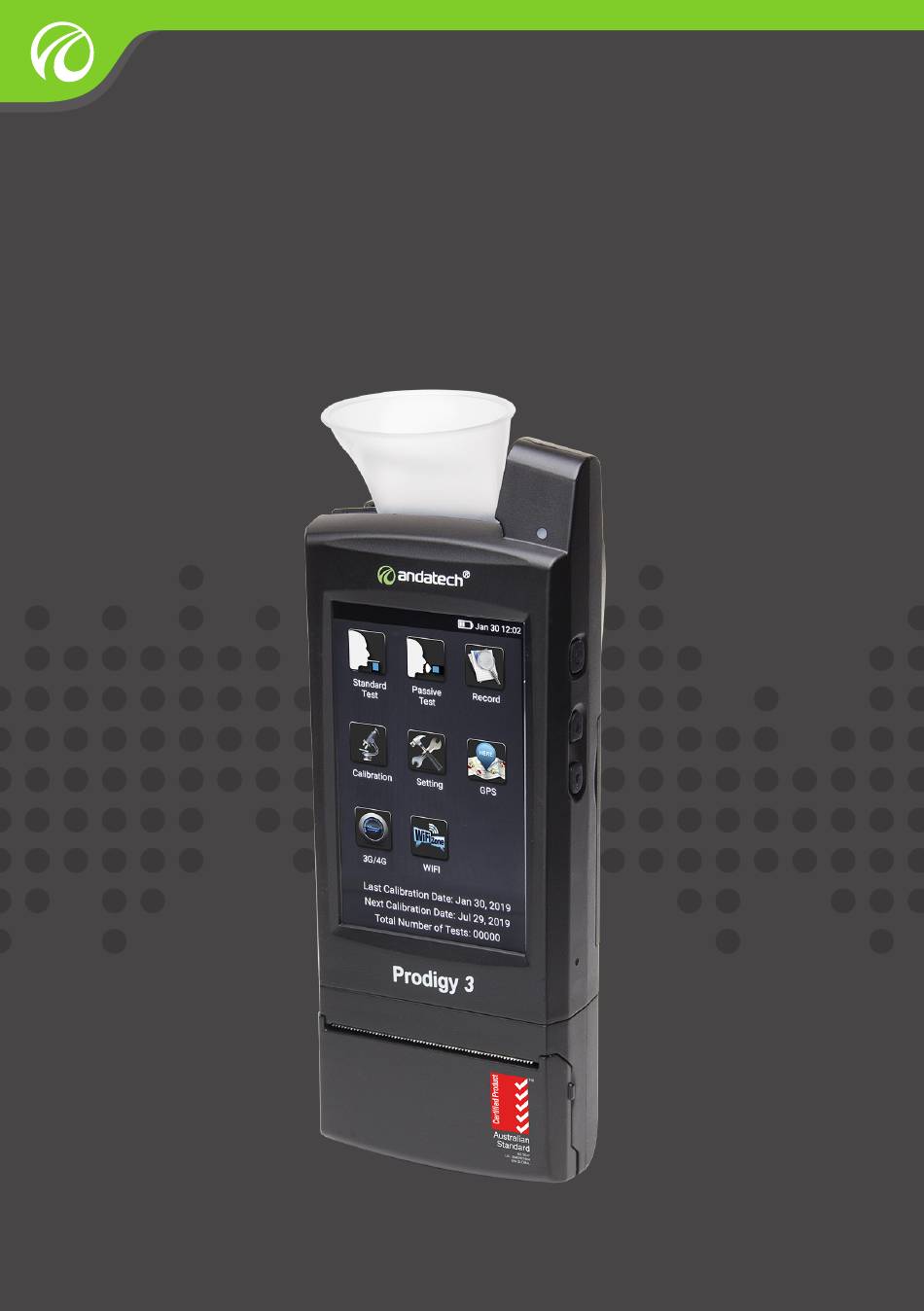

- Page 1 Andatech ® P R O D I G Y 3 Industrial Breathalyser USER MANUAL V1.0. Updated 31.01.2019.
-
Page 2: Table Of Contents
INTRODUCTION Thank you for purchasing the Andatech® Prodigy 3. The Andatech® Prodigy 3 is a state-of-the-art device used to detect Ethyl Alcohol from a valid breath sample. It uses an electrochemical fuel cell to measure the concentration of alcohol from the breath sample expelled from a human subject. -
Page 3: Specifications

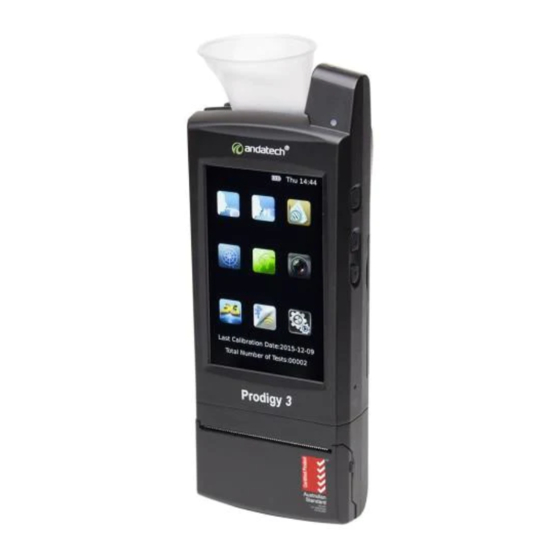

PRODUCT DIAGRAM Camera Sample Port Button to CONTENTS: On/Off Button Remove 1 x Prodigy 3 Breathalyser Mouthpiece 1 x Hard Case Up Button 1 x Soft Pouch Down Button 2 x Rechargeable Batteries Touch Screen 1 x 12V Car Charging Cable... -
Page 4: Features
FEATURES PLEASE REFER TO DIAGRAM ON PREVIOUS PAGE 1. Disposable Mouthpiece Each mouthpiece is individually packaged and sealed for hygiene reasons. Before each new Standard Test, attach a new mouthpiece to the sample port to prevent contamination from a previous test. 2. -
Page 5: Screen Display
SCREEN DISPLAY 1. GPS Indicator 2. WIFI Indicator 3. 3G Indicator 4. Battery Indicator 5. Date & Time Indicator 6. Standard Test 7. Passive Test 8. Test Records 9. Calibration 10. Setting 11. GPS 12. 3G/4G Setting (Optional) 13. WIFI Setting 14. -
Page 6: Conditions For Testing
OPERATING CONDITIONS Working temperature of the Andatech® Prodigy 3: -10 to 50°C Storage temperature range of the Andatech® Prodigy 3: -30 to 70°C, 15 to 90%RH Note: Inappropriate storage of the device will shorten the lifespan of the fuel cell sensor. -
Page 7: Operating Instructions
OPERATING INSTRUCTIONS Refer to “Conditions for Testing” before conducting a Standard or Passive test. On/Off Press and hold the power button for 1-2 seconds to switch the device on or off. Taking a standard test 1. Attach a mouthpiece onto the sample port and select the Standard Test icon. 2. - Page 8 7. If alcohol was detected during a passive test, clean the sampling cup or use a new sampling cup to prevent residual alcohol from affecting the next test result. 8. Select to print the test result. Note: A passive test only checks for the presence of alcohol in a breath sample. An accurate test result can only be obtained via a Standard Test using a mouthpiece.
- Page 9 WIFI 1. Enter the WI-FI information to connect to the WIFI. Setting 1. Basic Settings Adjust the screen brightness level and sleep time. 2. Time Setting Set the device date and time. 3. Print • Print GPS: Tick the checkbox to print the GPS location of the test on the printout.
-
Page 10: Printer
PRINTER The Prodigy 3 features a built-in thermal printer. INSERT/REPLACE PAPER: Pull the handles on the side to open the printer cassette and inset thermal paper. When inserting a new roll of paper, make sure the glossy/outer side of the paper is facing the serrated tear strip once the door is closed. -
Page 11: Limits
The manufacturer warrants for 1 year from Andatech recommends the AlcoSense® the date of purchase, the product to be free Prodigy 3 is calibrated every 6 months from defects in workmanship or material (unlimited tests) to maintain Australian (excluding calibration) under normal use. -
Page 12: Warranty Details
Service during the Warranty Period To claim for warranty, contact us on 1300 800 200 or send and email to support@andatech.com.au to get an RA# (Return Authorisation Number). Ensure that the RA# is clearly stated on the outside of the packaging and that the product is properly packaged so that no damage occurs to the product during transit. - Page 14 Andatech Pty Ltd www.andatech.com.au 1300 800 200...
