Summary of Contents for Smartrise KEB Series

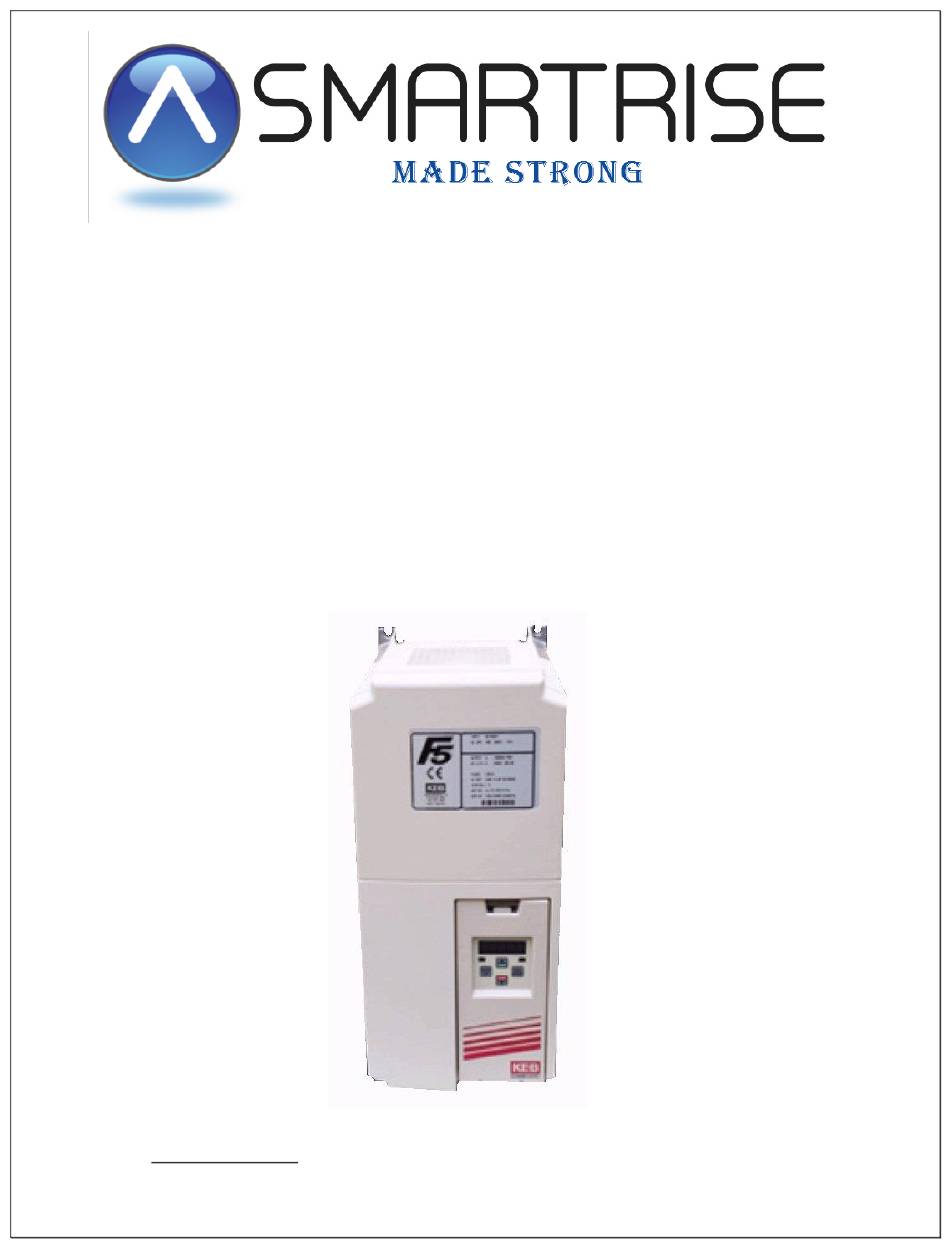

- Page 1 RIVE TARTUP ANUAL KEB Drive Induction Motor Installation www.smartrise.us | 2601 Fair Oaks Blvd., Sacramento, CA 95864 | 916.457.5129...
- Page 2 KEB Introduction EQUIPMENT/SETTINGS VERIFICATION Verify that the Job Specification parameter table on the drawings “Sheet 1: Getting Started” matches the actual equipment. Below is a sample table showing the important values that will affect operation. Scroll through the motor parameters and verify that they are set to the motor nameplate values prior to performing the Motor Learn procedure.
- Page 3 CONTROLLER GROUNDING REQUIREMENTS NOTE – For the controller to function properly it is very important to provide proper building ground connections to the controller. Examples of a proper building-to-controller ground connection is to attach the ground cable to: The street side of the incoming water main. ...
- Page 4 WIRING – (Check off box when complete) ** Refer to the Appendix for the following connections ** Power – (Sheet 3: Machine Room connections) Connect main line power to terminal block L1/L2/L3. Connect the ground wire to the yellow/green terminal block next to L1-L3.
- Page 5 CONSTRUCTION – (Sheet 1: Construction) The following instructions are from the job drawings: “Sheet 1 – Construction”. Refer to the job’s specific drawings for connections. Construction Box (Sample) 24VDC connections to SRU board IOs Enable Temporary Run Stop Switch 120VAC connections to DIN Rail terminals...
-
Page 6: Final Setup
(Check off box when complete) Apply external power by closing the main disconnect. Close the L1/L2 breaker, the M24, PS, BR and EBR breakers. Verify that the LCD on the Smartrise board and the KEB Drive come on. Down = ON... - Page 7 o Use the Up / Down Arrow keys and move the asterix to MISC and press the enter key. SETUP Local Outputs Security *Misc o BYPASS TERM LIMITS should be the first item listed. If it’s not there use the Up / Down Arrow keys and move the asterix to BYPASS TERM LIMITS and press the enter key.
-
Page 8: Initial Start-Up
KEB Motor Learn NOTE: Smartrise programs the KEB drive with factory defaults to properly communicate with the controller. After factory testing, customer motor data (from customer’s EDF) is programmed into the drive to provide an easier “out of box” installation. -
Page 9: Encoder Synchronization
KEB Encoder Learn 1. Encoder Synchronization The Encoder Synchronization process will determine the correct A/B encoder channel phasing and direction of rotation for Induction motors. Begin the process by setting: • LL07 - Encoder Synchronization to “Start” Follow the directions on the keypad. The drive will run the elevator and swap the phasing and direction of the A/B channels as needed. -
Page 10: Operation
No Faults Make sure the car is moving without triggering a fault either on the Smartrise SRU or the drive. If the SRU board displays a “Drive Fault” on the SRU, look at the drive to see what the fault is. -
Page 11: Troubleshooting
WRONG DIRECTION 1. If the car is moving in the wrong direction: a. On the Smartrise controller board make sure that IO 521 comes on when commanding the UP direction and IO 522 comes on when commanding the DOWN direction. -
Page 12: Terminal Locations
APPENDIX TERMINAL LOCATIONS Brake terminal block terminals Main Line terminals L1/L2/L3 Motor terminals T1/T2/T3 Encoder card location on drives Encoder wiring terminals... - Page 13 APPENDIX KEB PROGRAMMING MENU The programming menu is where all manual parameter adjustment is made and can be accessed at Home > Prog (F3). The Parameter menu contains the following groups: Operator System: OS00...OS22 These parameters provide general information about the operator and drive hardware and software.
- Page 14 Control Setting: LC01...LC44 These parameters contain advanced adjustment parameters which affect the motor gains, system inertia gains, pre-torque, etc. Timer Parameters: LT01...LT13 These parameters adjust brake and drive signaling timers. Positioning Parameters: LP01...LP08 These parameters contain the adjustments needed for the drive Special Functions: LX01...LX18 These parameters allow advanced adjustment of the drive and facilitate function...
-
Page 15: Advanced Troubleshooting
RE-LOAD OEM VALUES (PROGRAMMED BY SMARTRISE): 1. Go to US.05 and choose “Restore OEM Defaults”. Restoring Smartrise Defaults: US.05: Restore OEM Defaults (To Reload Smartrise Settings) MOTOR NOISE / VIBRATION 1. Vibration: a. Cut the KP (LC03, LC04) and KI (LC08, LC09) gains in half.
