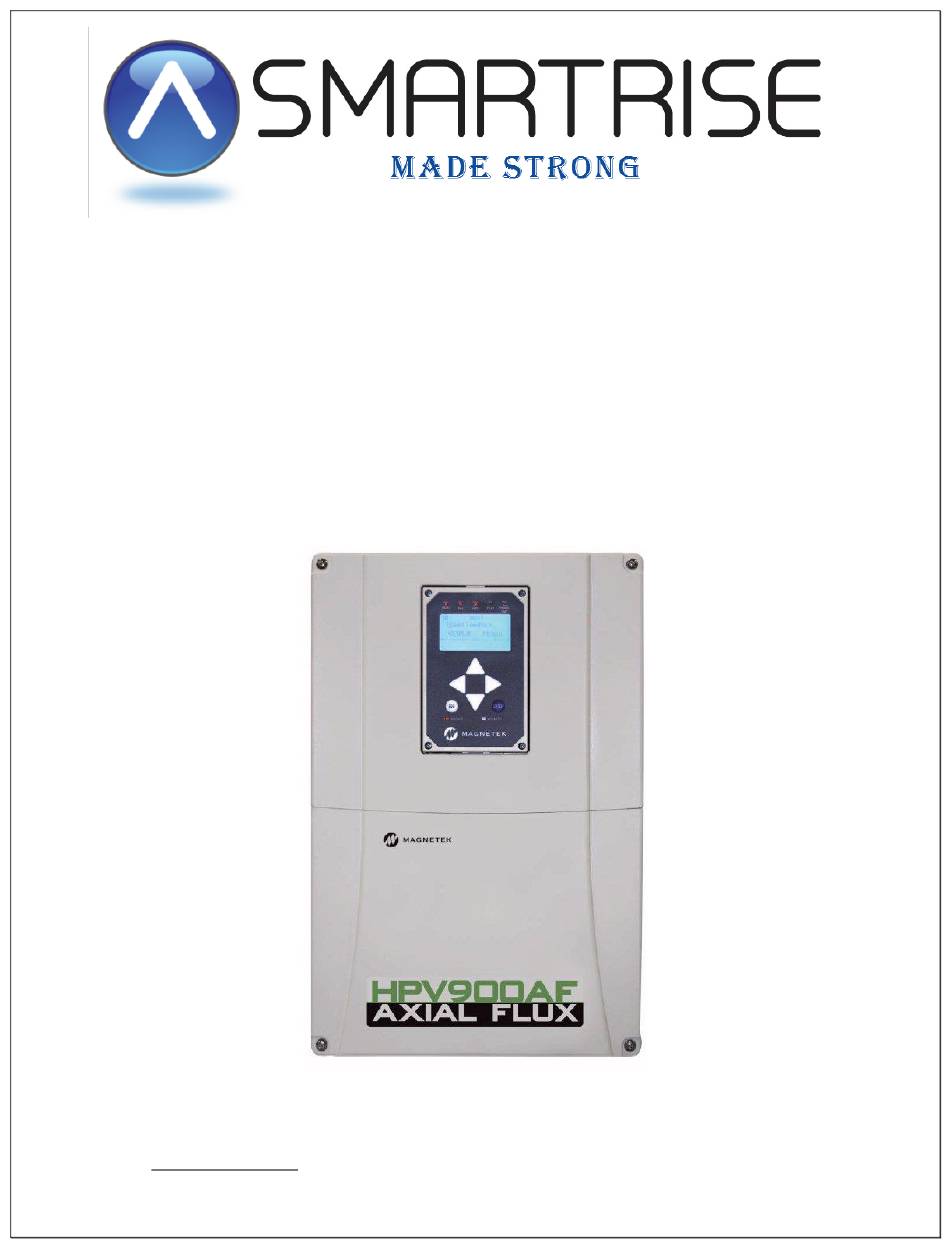

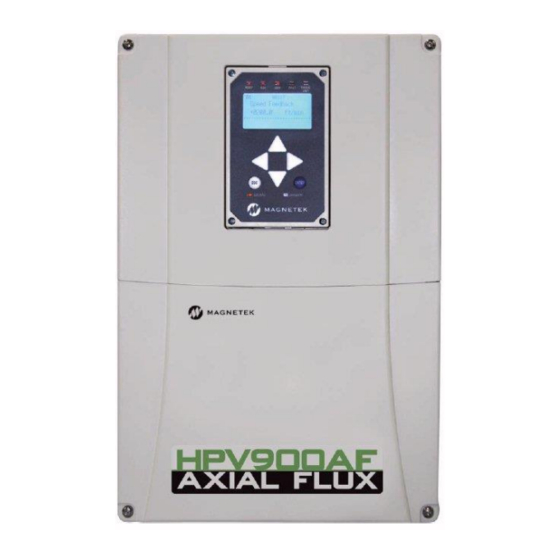

- Page 1 RIVE TARTUP ANUAL Magnetek HPV900AF Drive PM Motor Installation www.smartrise.us | 2601 Fair Oaks Blvd., Sacramento, CA 95864 | 916.457.5129...
- Page 2 Magnetek HPV900AF Drive EQUIPMENT/SETTINGS VERIFICATION Verify that the Job Specification parameter table on the drawings “Sheet 1: Getting Started” matches the actual equipment. Below is a sample table showing the important values that will affect operation. Motor Motor Motor Volts...
- Page 3 CONTROLLER GROUNDING REQUIREMENTS NOTE – For the controller to function properly it is very important to provide proper building ground connections to the controller. Examples of a proper building-to-controller ground connection is to attach the ground cable to: The street side of the incoming water main. ...
- Page 4 WIRING – (Check off box when complete) ** Refer to the Appendix for the following connections ** Power – (Sheet 3: Machine Room connections) Connect main line power to terminal block L1/L2/L3. Connect the ground wire to the yellow/green terminal block next to L1-L3.
- Page 5 CONSTRUCTION – (Sheet 1: Construction) The following instructions are from the job drawings: “Sheet 1 – Construction”. Refer to the job’s specific drawings for connections. Construction Box (Sample) 24VDC connections to SRU board IOs Enable Temporary Run Stop Switch 120VAC connections to DIN Rail terminals...
-
Page 6: Final Setup
(Check off box when complete) Apply external power by closing the main disconnect. Close the L1/L2 breaker, the M24, PS, BR and EBR breakers. Verify that the LCD on the Smartrise board and the Magnetek Drive should come on. Down = ON... - Page 7 o Use the Up / Down Arrow keys and move the asterix to MISC and press the enter key. SETUP Local Outputs Security *Misc o BYPASS TERM LIMITS should be the first item listed. If it’s not there use the Up / Down Arrow keys and move the asterix to BYPASS TERM LIMITS and press the enter key.
-
Page 8: Auto Tuning
The auto tune function must be performed for a PM motor to properly operate. The two functions are Encoder Alignment and Motor Alignment. ** During the alignment process the Smartrise SRU board may display several faults. These are normal and won’t affect the alignment procedure. **... - Page 9 If there are other faults during this process, refer to the fault section of the Magnetek technical manual for diagnostic information. HPV900AF DRIVE MENU TABLE BASICS U9 PARAMETER DESCRIPTION CHOICES DRIVE MODE DRIVE OPERATION OPEN LOOP CLOSED LOOP AUTOTUNE SEL U12 PARAMETER DESCRIPTION CHOICES...
-
Page 10: Operation
No Faults Make sure the car is moving without triggering a fault either on the Smartrise SRU or the drive. If the SRU board displays a “Drive Fault” on the SRU, look at the drive to see what the fault is. The most common fault is “Encoder Flt”. -
Page 11: Troubleshooting
WRONG DIRECTION 1. If the car is moving in the wrong direction: a. On the Smartrise controller board make sure that IO 521 comes on when commanding the UP direction and IO 522 comes on when commanding the DOWN direction. - Page 12 CAR MOVING TOO SLOW OR ROUGH 1. Swap the encoder wires A+ and A- on drive TB2 (terminals 1 & 2). 2. Verify the brakes are lifting fully. SETUP FAULT ONE This is caused when the HPV is programmed with motor data (A5) that conflicts with drive software.
- Page 13 APPENDIX Terminal Locations Main Line terminals L1/L2/L3 terminals Motor Brake terminal terminals block T1/T2/T3 J1/J2 – K1/K2 Terminal Encoder wiring terminals...
