Summary of Contents for Dolphin PROLITE Series

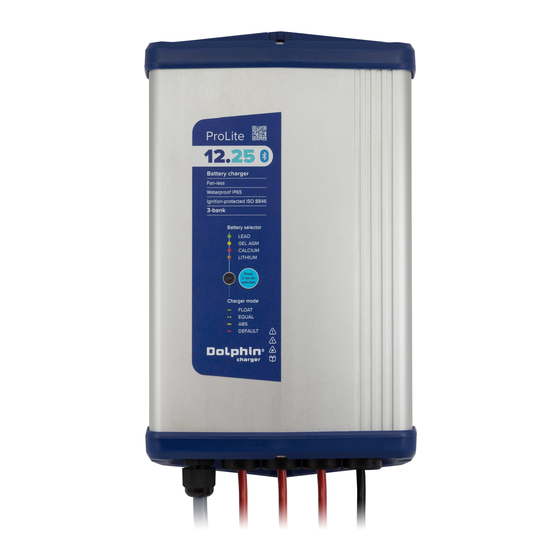

- Page 1 OPERATING & USERS MANUAL PROLITE Series Automatic IP65 battery chargers 12V15A 115V : Code 399710 230V : Code 399715 12V25A Code 399720...
-
Page 2: Installation
WARNING WARNING Connections This manual contains vital and essential information, in order to avoid electrical shocks, overcharging or irreversible damage to the material. The owner According to the model, the charger is set to be should read and understand this document before connected to a monophase network 230V 50Hz or operating the charger. -
Page 3: Maintenance
WARNING CONNECTIONS Serial number The S/N is available on the grey sticker on the top side of the charger. Choosing the charging curve It is important to choose the correct charging curve, appropriate with the battery technology. An incorrect choice can cause irreversible damage. In particular, risk of overheating and noxious gases in case of overvoltage to the battery. -
Page 4: Technical Specifications
Output reverse polarity / Over temperature Internal fuses General protection (irreversible damage) General Display Front tri-color LED Control Front push-button or via “Dolphin Connect App” Operating t° -10°C to +55°C (automatic derating) Storage t° -20°C to +70°C Humidity 10% to 90%... -
Page 5: Front Display
OPERATING INSTRUCTIONS OPERATING INSTRUCTIONS Select the cycle charge Front display Mode Status ABS mode Yellow Batteries are charging. Time required to complete “Absorption” depends on the initial SOC of the batteries, but it is limited to 8hrs EQUAL mode Yellow blinking Batteries are coming to the end of the cycle charge. - Page 6 OPERATING INSTRUCTIONS DIMENSIONS ProLite 12V15A Dolphin Connect App NOT-PROLITE-00 NOT-PROLITE-00...
- Page 7 DIMENSIONS WARRANTY ProLite 12V25A In order to prevent all risks due to the incorrect use of the device, please read carefully the list of possible situations or faults not covered by the warranty. Disassembly and/or modification of the casing resulting into the loss of the watertightness and/or the damage of the charger.
-
Page 8: Warranty
All electronic devices must be returned to a local distributor or to a specialized company for an environmentally friendly disposal. CE conformity This product conforms to current European standards and has a CE mark. Please contact us for the certificate of conformity. contact@dolphin-charger.com www.dolphin-charger.com...
