TECHNICAL MANUAL

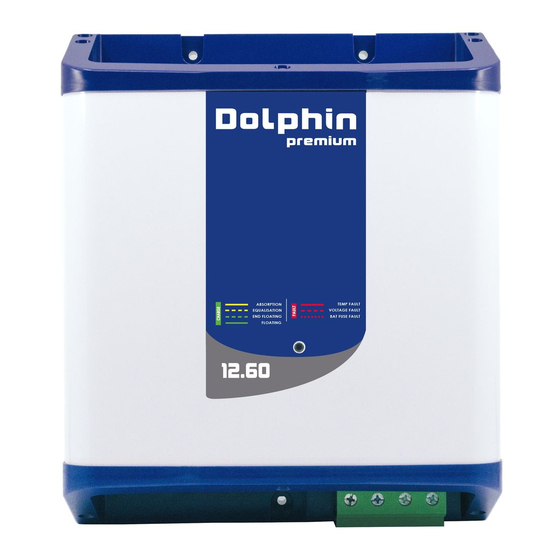

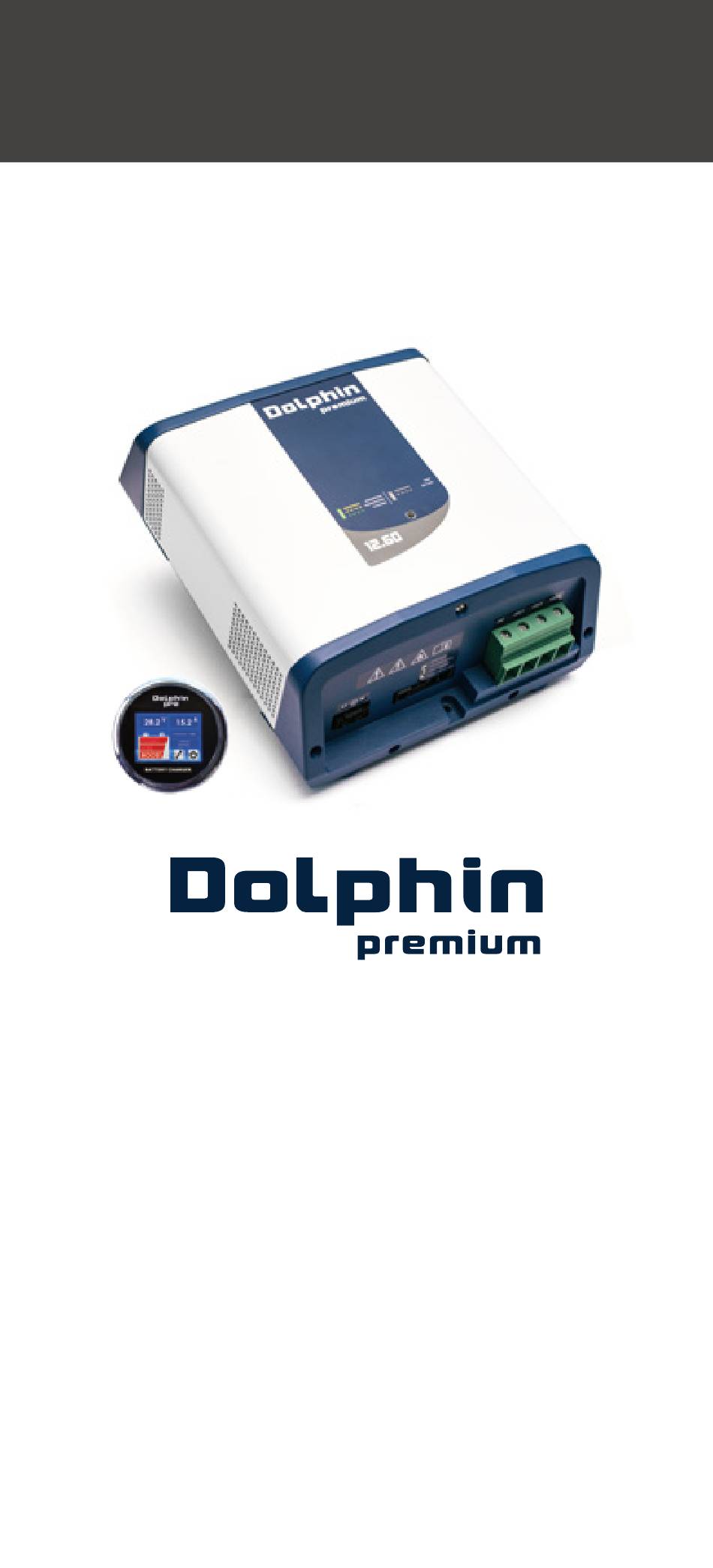

Battery charger
premium 12V60A
399050 - PF.15053
premium 24V30A
PF.16070

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Premium 12V60A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Dolphin Premium 12V60A

  • Page 1 TECHNICAL MANUAL Battery charger premium 12V60A 399050 - PF.15053 premium 24V30A PF.16070...
  • Page 2: Safety Precautions

    SAFETY PRECAUTIONS NOT-PREMIUM900W-01 TO PREVENT ANY RISK OF ELECTRIC SHOCK OR FIRE, READ THIS MANUAL CAREFULLY BEFORE INSTALLING THE EQUIPMENT. n the event of any problems or misunderstandings, please contact your dealer. This equipment is not designed for use by people (including children) with diminished physical, sensorial or mental capacities, or people without experience or knowledge of such equipment,...
  • Page 3: Connection Precautions

    SAFETY PRECAUTIONS NOT-PREMIUM900W-01 All electrical connections to and from the charger must remain accessible at all times. This system should not be exposed to water or dust. It is strictly forbidden to tamper with the system casing in any way. This device is not a toy and must be kept out of the reach of children.
  • Page 4 SAFETY PRECAUTIONS NOT-PREMIUM900W-01 it is imperative to fit the Winsta Wago snap on security cover. See “Assembling the Shore Power Connector” Activation precautions In order to avoid all risk of electric shock or irreversible damage to the device, please follow very carefully the following recommendations.
  • Page 5: Maintenance Precautions

    SAFETY PRECAUTIONS NOT-PREMIUM900W-01 Important Note on the choice of charge curve It is extremely important to choose the correct charging curve, one which is appropriate for the battery’s technology. An incorrect choice could cause irreversible damage. 4This is particularly true for charging curves where the charging voltage is higher than the manufacturers’...
  • Page 6 SAFETY PRECAUTIONS NOT-PREMIUM900W-01 The mains and battery connections must be disconnected before any work is carried out in order to avoid transfer of energy Fuses must be replaced by fuses that have the same characteristics and performance levels. 12V60A 24V30A INPUT Voltage 115V - 230V (+/- 15%)
  • Page 7: Technical Specifications

    TECHNICAL SPECIFICATIONS NOT-PREMIUM900W-01 12V60A 24V30A Charging curve 1 Battery type: Lead open Lead open V.boost = 14,2V = 28,4V = 26,4V V.float = 13,2V Charging curve 2 Battery type: GEL, AGM, Spiral V.boost = 14,2V = 28,4 = 27,4 V.float = 13,7V Charging curve 3 Battery type: Lead Calcium Lead Calcium...
  • Page 8 TECHNICAL SPECIFICATIONS NOT-PREMIUM900W-01 Mode Status Absorption The batteries are charging. Steady yellow Time required to complete Absorption mode varies depending on the initial status of the batteries, but is limited to 6 hours. Equalisation Yellow The batteries are coming blinking to the end of the charging cycle.
  • Page 9 CONNECTIONS NOT-PREMIUM900W-01 Front LED Battery fuses under the product Main acces BAT acces TOUCH view_RJ11 CANbus_MicroFit Cycle charge selector UART_RJ12...
  • Page 10: Wiring Diagram

    CONNECTIONS NOT-PREMIUM900W-01 Wiring diagram Dispatching BusBar (-) Assembling the shore power connector Step 1 Remove approx 3 cm of the outer sheath Remove approx 8 mm of the inner wires’ sheaths Tinplate the bare copper ends Step 2 Remove the security cap using an utility knife Step 3 Pull the conductor through the pre latched strain relief housing...
  • Page 11 DIMENSIONS NOT-PREMIUM900W-01 3x 17,3 Tolérances Générales dimensions : angles : 07/03/2016 Création états de surface : DATES Ind. Contrôle Qualité Matière : Instructions particulières (Conforme RoHS) 21 Porte du grand Lyon Désignation : 01707 MIRIBEL CEDEX mdpcontact@mdpmotor.com DOL PRO 900W Tel : (33) 04 72 01 83 00 Fax : (33) 04 72 01 83 09 Propriété...
  • Page 12: Warranty

    WARRANTY NOT-PREMIUM900W-01 Warranty TO PREVENT ANY RISK OF INCORRECT USE OF THE DEVICE, CAREFULLY READ THE LIST OF POTENTIAL EVENTS OR FAULTS NOT COVERED BY THE PRODUCT WARRANTY 4This device is not protected against battery polarity reversals. Risk of irreversible damage to the equipment. 4Should the device be dropped or fall this could cause irreversible distortion of the housing as well as a “crash”...
  • Page 13 WARRANTY NOT-PREMIUM900W-01 Precautions for scrapping This device contains electronic components and materials that must be recycled at the end of the product’s usable life, for environmental reasons. At the end of their usable lives all devices must therefore be returned either to the local distributor or entrusted to a specialist electronic equipment recycling company.
  • Page 14 www.dolphin-charger.com...
