OPERATING & USERS MANUAL
Automatic IP65 battery chargers
12V15A
12.15
Battery charger
Waterproof IP65
Ignition-protected ISO 8846
2-bank
Battery selector
LEAD
GEL AGM
CALCIUM
LITHIUM
Press
3 sec for
selection
Charger mode
FLOAT
EQUAL
ABS
DEFAULT
230V
Code 399710
PROLITE Series
12.15
Battery charger
Waterproof IP65
Ignition-protected ISO 8846
2-bank
Battery selector
LEAD
GEL AGM
CALCIUM
LITHIUM
Press
3 sec for
selection
Charger mode
FLOAT
EQUAL
ABS
DEFAULT
115V
(Nema 5-15)
Code 399715

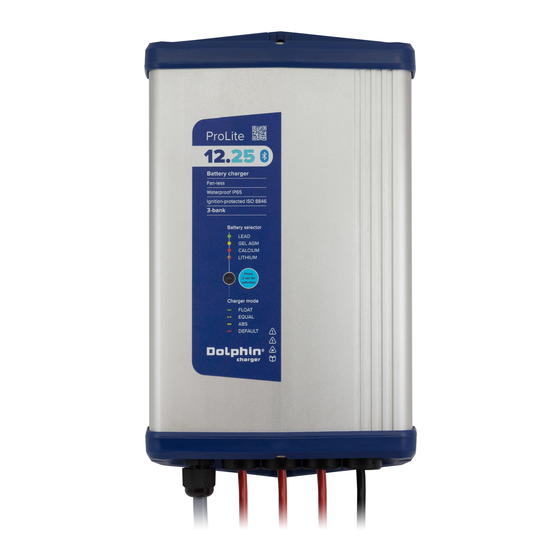

12V25A
ProLite
12.25
Battery charger
Fan-less
Waterproof IP65
Ignition-protected ISO 8846
3-bank
Battery selector
LEAD
GEL AGM
CALCIUM
LITHIUM
Press
3 sec for
selection
Charger mode
FLOAT
EQUAL
ABS
DEFAULT
115V / 230V
Code 399720
ProLite
12.25
Battery charger
Fan-less
Waterproof IP65
Ignition-protected ISO 8846
3-bank
Battery selector
LEAD
GEL AGM
CALCIUM
LITHIUM
Press
3 sec for
selection
Charger mode
FLOAT
EQUAL
ABS
DEFAULT
(Nema 5-15)
Code 399725
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dolphin PROLITE Series
Summary of Contents for Dolphin PROLITE Series
- Page 1 OPERATING & USERS MANUAL PROLITE Series Automatic IP65 battery chargers 12V15A 12V25A 12.15 12.15 ProLite ProLite 12.25 12.25 Battery charger Battery charger Waterproof IP65 Waterproof IP65 Ignition-protected ISO 8846 Ignition-protected ISO 8846 Battery charger Battery charger 2-bank 2-bank Fan-less Fan-less...
-
Page 2: Table Of Contents
DC Power wiring Typical wiring with one battery Typical wiring with two batteries Typical wiring with three batteries OPERATING INSTRUCTIONS Dolphin Connect Selecting a charging profile from the app Charger’s front display TECHNICAL SPECIFICATIONS DIMENSIONS ProLite 12V15A - 230 V... -
Page 3: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS This manual contains vital and essential information, in order to avoid electrical shocks, overcharging or irreversible damage to the material. The owner should read and understand this document before operating the charger. This device is not intended for use by persons (including children) with physical, sensory or mental disability, or by persons lacking experience or knowledge, unless they have received from a person in charge of their safety adequate supervision or preliminary instructions on how to use the device. -
Page 4: Connections
PRECAUTION • Do not disassemble the battery charger. There are no user-serviceable parts with the exception of a user-replaceable fuse at the DC ouput wiring compartment. • Do not operate the battery charger with damaged or substandard wiring. • In order to maintain watertightness, it is strictly forbidden to dismantle the charger and/or to modify the casing and/or wirings in any way. -
Page 5: Serial Number
US Version: External connections to the battery charger shall comply with the United States Coast Guard electrical regulations (33CFR183, Sub Part 1). Output batteries must be connected to the charger before its power-on. This device complies with enforced standards regarding emitted interferences and disturbances of external origin. -
Page 6: Exposure To Chemicals And Gases Hazard
Exposure to chemicals and gases hazard ATTENTION • Make sure the area around the battery is well ventilated. Gas produced by batteries can be explosive. Protect eyes when around batteries. Provide adequate ventilation so hydrogen gas accumulation does not exceed 2% by volume. -
Page 7: Location Of Installation
LOCATION OF INSTALLATION Never place charger above battery being charged. Gases from battery will corrode and damage charger. The unit is ignition protected: ProLite chargers can be installed in spaces containing gasoline powered machinery, or gasoline fuel tank(s), or other connection(s) between components of a gasoline system. -
Page 8: Connections
CONNECTIONS ProLite chargers are supplied with three (25Amp) or two (15Amp) positive DC cables including ring battery terminals and waterproof fuseholder and one negative DC cable including ring battery terminal. Each DC cable has a length of 1,8 meter (6 feet) DC terminals are supplied with ring battery terminal 8,5mm diameter for 8mm battery stud. -
Page 9: Ac Power Wiring Us Version
AC Power wiring US version US Version: The battery charger is supplied with an extension cord. Connect it at the nearby 120 VAC GFCI (Ground Fault Circuit Interrupt) outlet. Neutral Phase Ground AC Power wiring Standard version ProLite chargers Standard version are supplied with a 1,8 meter 3 wire 0,75mm² each stripped ends cable. -
Page 10: Typical Wiring With One Battery
Typical wiring with one battery When only one battery is connected other two DC positive cable terminals must be isolated in waterproof boxes or either remove their in-line fuses. 12.15 Battery charger Waterproof IP65 Ignition-protected ISO 8846 2-bank Battery selector LEAD GEL AGM CALCIUM... -
Page 11: Typical Wiring With Two Batteries
Typical wiring with two batteries When only two batteries are connected other third DC positive cable terminals must be isolated in waterproof boxes or either remove their in-line fuses. 12.15 Battery charger Waterproof IP65 Ignition-protected ISO 8846 2-bank Battery selector LEAD GEL AGM CALCIUM... -
Page 12: Typical Wiring With Three Batteries
Typical wiring with three batteries Three battery banks ProLite 12.25 Battery charger Fan-less Waterproof IP65 Ignition-protected ISO 8846 3-bank Battery selector LEAD GEL AGM CALCIUM LITHIUM Press 3 sec for selection Charger mode FLOAT EQUAL DEFAULT 12 V 12 V 12 V 12 V 12 V... -
Page 13: Operating Instructions
OPERATING INSTRUCTIONS The ProLite charger is design to charge battery of the same type. Do not mix battery type. ATTENTION It is important to select the correct charging profile for your battery. If you are still unsure what kind of battery you have we recommend that you contact the manufacturer of the battery. - Page 14 Waterproof IP65 Ignition-protected ISO 8846 2-bank Battery selector LEAD GEL AGM CALCIUM LITHIUM Press 3 sec for selection Charger mode FLOAT EQUAL DEFAULT 2 sec. 5 sec. Waterproof IP65 Ignition-protected ISO 8846 2-bank Open Lead Battery selector LEAD GEL AGM (green) CALCIUM LITHIUM...
-
Page 15: Dolphin Connect App
FLOAT mode 13,4V 13,6V 13,8V 14,5V Example of load curve : Dolphin Connect The smartphone App DolphinConnect dashboard allows you to monitor in real time your ProLite charger. The network range can be up to 10 meters (30 feet) depending the... -
Page 16: Selecting A Charging Profile From The App
Selecting a charging profile from the app After installing the app click on icon to launch it. Click on the home page to launch the app. Make sure Bluetooth is turned on. Make sure ProLite charger is on. Click on «detect my product». Note: if Bluetooth is turned off the following window will appear: If ProLite charger is detected it will... - Page 17 Enter the PIN number available on product label. The screen will display the state of charger and actual charging stage. Left to right screen or click on menu button to navigate. In order to change charging profile click on «configuration». NOT-PROLITE-02...
-
Page 18: Charger's Front Display
It is important to select the correct charging profile for your battery. If you are still unsure what kind of battery you have we recommend that you contact the manufacturer of the battery. Charger’s front display Mode Status ABS mode Yellow Batteries are charging. -
Page 19: Technical Specifications
General protection (irreversible damage) External +BAT fuses F20A F30A General Display Front tri-color LED Control Front push-button or via “Dolphin Connect App” Operating t° -10°C to +55°C (automatic derating) Storage t° -20°C to +70°C Humidity 10% to 90% IP65 Ventilation... -
Page 20: Dimensions
DIMENSIONS ProLite 12V15A - 230 V + - 0,5 + - 0,5 5.59 in 2.83 in + - 0.02 + - 0.02 12.15 Battery charger Waterproof IP65 Ignition-protected ISO 8846 2-bank Battery selector LEAD GEL AGM CALCIUM LITHIUM Press 3 sec for selection Charger mode FLOAT... -
Page 21: Prolite 12V15A - 115 V - Nema 5-15 Plug
ProLite 12V15A - 115 V - Nema 5-15 plug + - 0,5 + - 0,5 5.59 in 2.83 in + - 0.02 + - 0.02 12.15 Battery charger Waterproof IP65 Ignition-protected ISO 8846 2-bank Battery selector LEAD GEL AGM CALCIUM LITHIUM Press 3 sec for... -
Page 22: Prolite 12V25A
ProLite 12V25A + - 0,5 + - 0,5 5.59 in 2.83 in + - 0.02 + - 0.02 ProLite 12.25 Battery charger Fan-less Waterproof IP65 Ignition-protected ISO 8846 3-bank Battery selector LEAD GEL AGM CALCIUM LITHIUM Press 3 sec for selection Charger mode FLOAT... -
Page 23: Prolite 12V25A - Nema 5-15 Plug
ProLite 12V25A - Nema 5-15 plug + - 0,5 + - 0,5 5.59 in 2.83 in + - 0.02 + - 0.02 ProLite 12.25 Battery charger Fan-less Waterproof IP65 Ignition-protected ISO 8846 3-bank Battery selector LEAD GEL AGM CALCIUM LITHIUM Press 3 sec for selection... -
Page 24: Troubleshooting
TROUBLESHOOTING Replacing in-line DC fuse ATTENTION Before replacing a fuse it is important to check the origin of fault. To replace DC fuses please follow the instructions: • Disconnect AC Power from the electrical outlet. • Disconnect DC negative cable. •... -
Page 25: Disposal
Address: 144 route des Vernes 74370 Pringy France I, undersigned Alain Pontille (CEO), declare that the products identified below: 399725- BATT. CHARG. DOLPHIN PROLITE 12V25A 399720- BATT. CHARG. DOLPHIN PROLITE 12V25A 399715- BATT. CHARG. DOLPHIN PROLITE 12V15A 399710- BATT. CHARG. DOLPHIN PROLITE 12V15A Comply with the following directives: REACH directive EC 1907/2006. -
Page 26: Iso 8846 Ignition Protected / Sae J1171:2016 Certified
ISO 8846 Ignition Protected / SAE J1171:2016 certified 515 Gus Hipp Blvd. Post Office Box 560933 Rockledge, Florida 32955 Rockledge, Florida 32956-0933 Telephone (321) 632-2008 FAX (321) 690-3360 www.imanna.com E-mail: info@imanna.com June 14 , 2019 Cats Power Design 144, route des Vernes 74370 Pringy - France To Whom It May Concern: IMANNA Laboratory tested samples of the ProLite 12.25 and ProLite 12.15 battery chargers for ignition protection. - Page 27 www.dolphin-charger.com...
