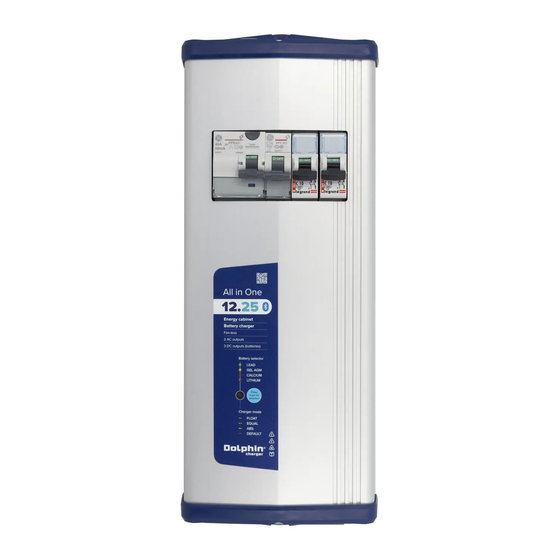

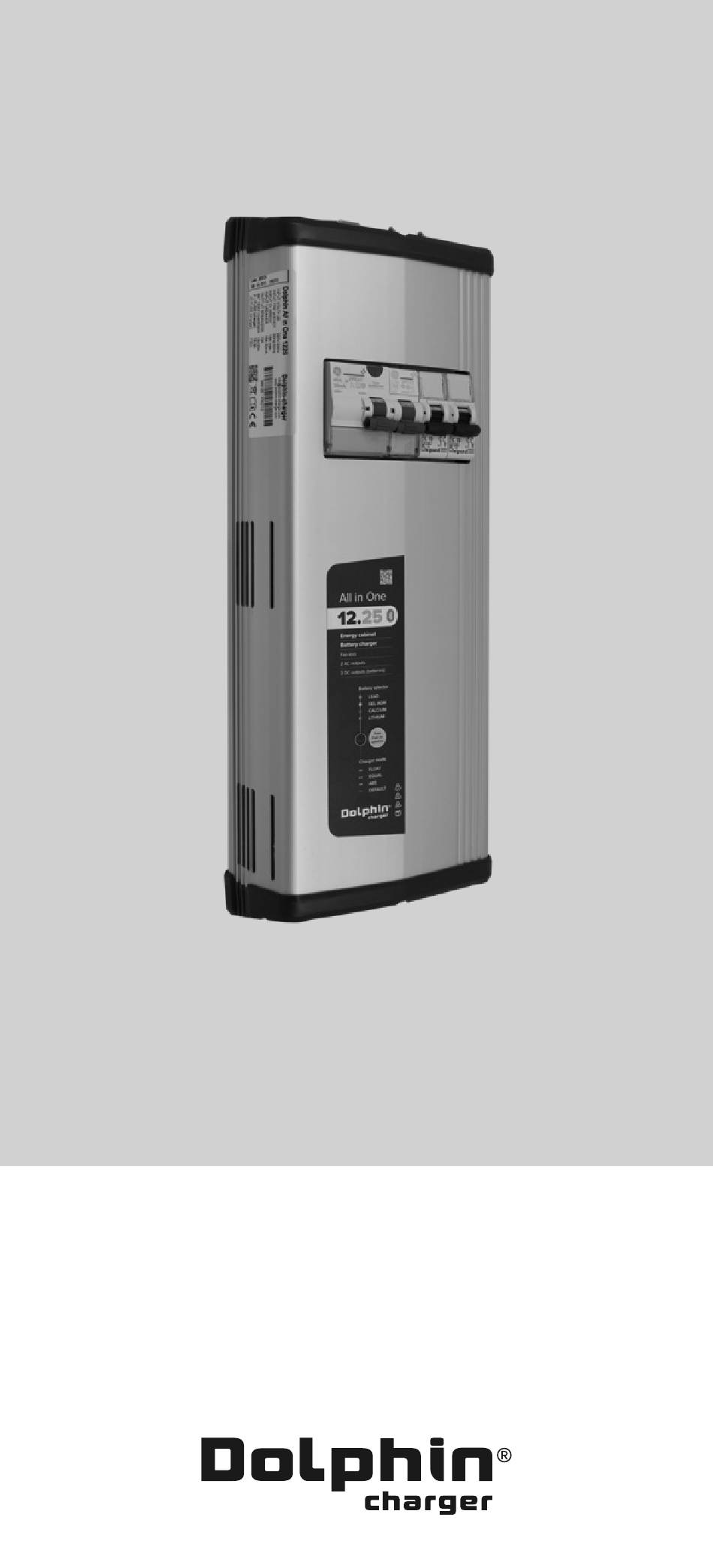

- Page 1 OPERATING & USERS MANUAL All In One Series Battery charger / Power cabinet 12V25A 230V : Code 399125...
-
Page 2: Installation
WARNING This manual contains vital and essential information, in order to avoid electrical shocks, overcharging or irreversible damage to the material. The owner should read and understand this document before operating the charger. This device is not intended for use by persons (including children) with physical, sensory or mental disability, or by persons lacking experience or knowledge, unless they have received from a person... - Page 3 WARNING Connections According to the model, the charger is set to be connected to a monophase network 230V 50Hz or 115V 60Hz (refer with technical specifications). The installation to which the charger is connected must comply with the standards currently enforced in the country of use.
-
Page 4: Maintenance
WARNING Serial number The S/N is available on the grey label positionned on the side of the charger. Choosing the charging curve It is important to choose the correct charging curve, appropriate with the battery technology. An incorrect choice can cause irreversible damage. In particular, risk of overheating and noxious gases in case of overvoltage to the battery. - Page 5 CONNECTIONS NOT-ALLINONE-00...
-
Page 6: Technical Specifications
TECHNICAL SPECIFICATIONS All In One 12V25A AC input Voltage 230V (+/-10%) Frequency 50/60 hz (+/-10%) Consumption max 2A (charger) + 10A (AC ouputs) Protection Breaker 16A 30mA Battery charger Input voltage 115V/230V (+/-10%) Power factor > 0,9 Number of outputs Open Lead: 14,5V / 13,4V +/-2% AGM –... - Page 7 TECHNICAL SPECIFICATIONS All In One 12V25A Weight 5,3 lbs Standards EN55014, EN60335 Interfaces (connectors supplied) AC input Type 770-713 (WINSTA), AWG14 max AC outputs Type 890-703 (WINSTA), AWG16 max Type PC6-16/4-G1F-10,16 (PHOENIX) DC outputs AWG6 max NOT-ALLINONE-00...
- Page 8 OPERATING INSTRUCTIONS Select the cycle charge Power-on the charger connected to the batteries. Note that during the power-on of the charger, the LED indicates for a few seconds the current cycle charge (refer to below color vs cycle). Wait a few seconds and verify that the charger is correctly charging the batteries (NORMAL mode).
-
Page 9: Front Display
OPERATING INSTRUCTIONS Front display Mode Status ABS mode Yellow Batteries are charging. Time required to complete “Absorption” depends on the initial SOC of the batteries, but it is limited to 8hrs EQUAL mode Yellow blinking Batteries are coming to the end of the cycle charge. - Page 10 OPERATING INSTRUCTIONS Dolphin Connect App IMPORTANT: The PIN code giving access to the application is available on the grey S/N label, positionned on the side of the charger NOT-ALLINONE-00...
- Page 11 DIMENSIONS Bottom view NOT-ALLINONE-00...
- Page 12 DIMENSIONS Hauteur sous tête de vis10,7 ±0,2 2 trous Ø4.5 Top view NOT-ALLINONE-00...
-
Page 13: Warranty
WARRANTY In order to prevent all risks due to the incorrect use of the device, please read carefully the list of possible situations or faults not covered by the warranty. Disassembly and/or modification of the casing resulting into the damage of the charger. Disassembly and/or modification of the electronic power board resulting into the malfunction or the damage of the charger. - Page 14 All electronic devices must be returned to a local distributor or to a specialized company for an environmentally friendly disposal. CE conformity This product conforms to current European standards and has a CE mark. Please contact us for the certificate of conformity. contact@dolphin-charger.com www.dolphin-charger.com...
