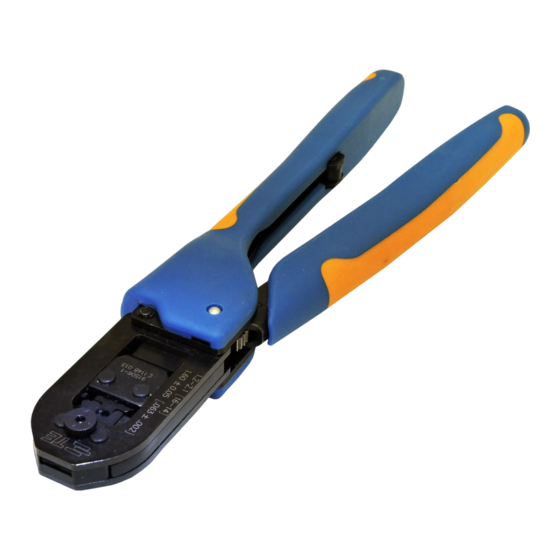

CERTI-CRIMP* II
Straight Action Hand Tools
with Flip Locator
PRODUCT INFORMATION 1-800-522-6752
408-10414
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.te.com.
Instruction Sheet
REV D
14 JUN 18
1 of 6
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TE Connectivity CERTI-CRIMP II 2381707-1
Summary of Contents for TE Connectivity CERTI-CRIMP II 2381707-1

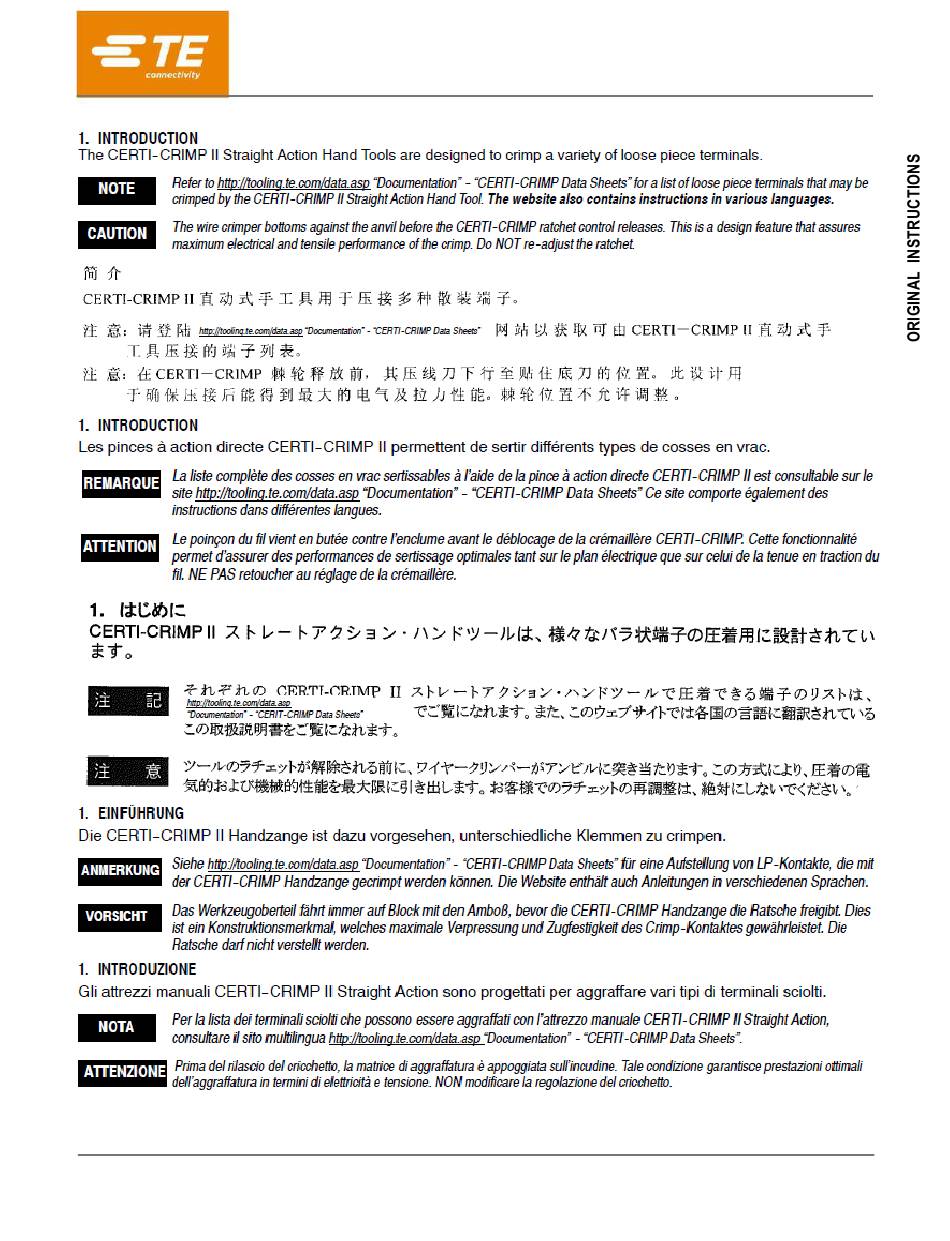

- Page 1 1 of 6 For latest revision and Regional Customer Service, All Rights Reserved. visit our website at www.te.com. *Trademark TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks. Other logos, product, and/or company names may be trademarks of their respective owners.
- Page 2 408-10414 PROPER USE GUIDELINES Cumulative Trauma Disorders can result from the prolonged use of manually powered hand tools. Hand tools are intended for occasional use and low volume applications. A wide selection of powered application equipment for extended-use, production operations is available. Figure 1 2.
- Page 3 408-10414 3. CRIMPING PROCEDURE Refer to the table at http://tooling.te.com/data.asp to ensure that the wire intended for use is compatible with the wire size and insulation diameter specified in the table. Strip the wire to the length indicated in the table. CAUTION Do NOT cut or nick the wire strands during wire stripping.
- Page 4 Crimp height inspection is performed by means of a micrometer with a modified anvil, commonly referred to as a crimp-height comparator. TE Connectivity does not manufacture or market crimp-height comparators. Detailed information on obtaining and using crimp-height comparators can be found in Instruction Sheet 408-7424.
- Page 5 408-10414 A recommended Crimp Height Comparator is RS-1019-5LP, Crimp Height Comparator 3-576692-6 is recommended in Great Britain; Crimp Height Comparator 675836-0 and -1 are recommended in Germany (see Table 1). Reference Part Number Description Manufacturer Number Digital Readout 3-576692-6 Imperial/Metric 342-431-30 0-1 Inch/0-25.4 mm/ Mitutoyo Corp., Japan...
- Page 6 408-10414 5. REPLACEMENT AND REPAIR Replacement parts are listed in Figure 5. Parts other than those listed in Figure 5 should be replaced by TE to ensure quality and reliability of the tool. Order replacement parts through your TE Representative or call 1-800- 526-5142.
