Compex PS2216 Quick Install Manual

Quick Install Guide

Compex
16-Port 10/100 Mbps

Fast Ethernet

Desktop Switch
PS2216
Version 1.2
1. Introduction

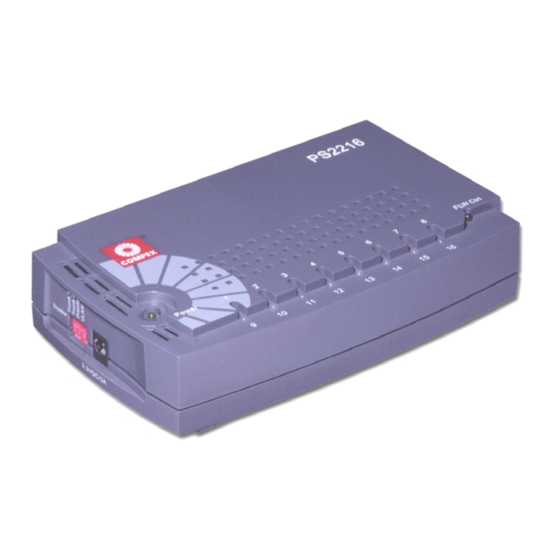

Figure 1
Compex PS2216 – A perfect switch for home and small offices. This is a fast
Ethernet Switch that provides 16 10/100Mbps ports capable of delivering full
or half duplex transmission with flow control. This cost-effective switch
allows the setting of priority ports, trunking groups or VLAN groups. In
addition, PS2216 is designed for full auto negotiation functionality that self
configures for the highest possible operation mode between nodes, coupled
with the collision-free packet switching capability makes this a perfect device
for your expanding network.
2.
1 2
9 10
1

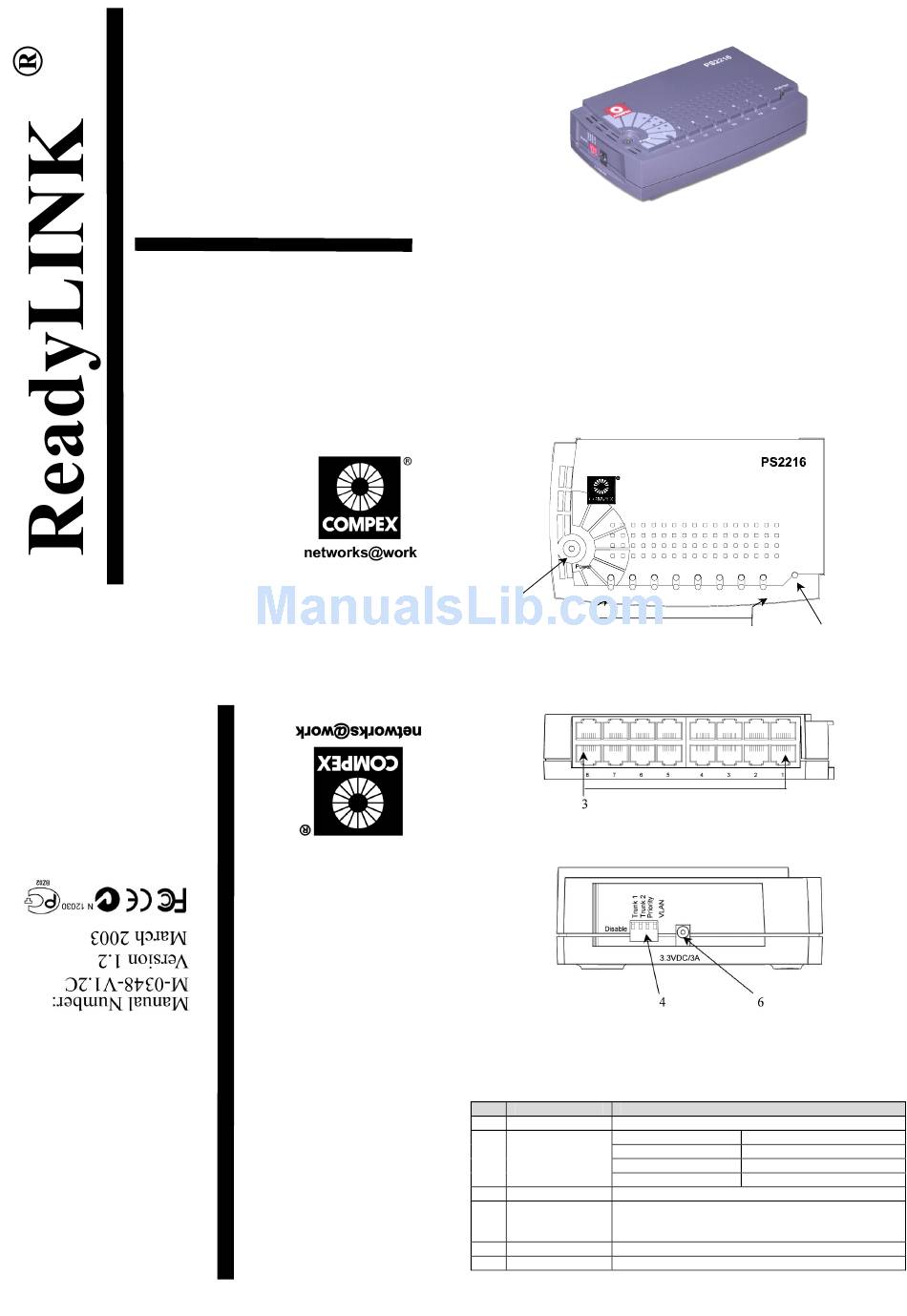

Figure 2 Front View of Compex PS2216
Figure 3 Back Panel View of Compex PS2216
Figure 4 Side View of Compex PS2216

3. Panel Descriptions

Indicator
1 Power LED ON indicates switch is receiving power.
2 Port LED STEADY AMBER
BLINK AMBER
STEADY GREEN
BLINK GREEN
3 16 RJ-45 Ports 16 UTP ports
4 DIP Switch To activate the VLANs, Trunking and Priority ports.
Please refer to Section 6 "Usage of Dip Switch" on the
following page.
5 FLW/Ctrl LED No function assigned to this LED. This will not be lighted.
6 DC Power Jack Jack for connection to an external power adapter
Compex PS2216
Panel View
FLW Ctrl
3 4 5 6 7 8
11 12 13 14 15 16
2
Description
10M Link
10M Activity
100M Link
100M Activity
5
