UNPACKING
WARNING! Do not operate the tool if any part is missing. Replace
the missing part before operating. Failure to do so could result in
a malfunction and personal injury.
Remove the parts and accessories from the packaging and inspect for
damage. Make sure that all items in the contents are included.
Contents: • Air Die Grinder
IDENTIFICATION KEY
A Collet
B Wrench Clamp
C Wrench
D Air Inlet
E Collet Nut
F Trigger Lever Safety
G Trigger Lever
H Air Exhaust/Muffler
ASSEMBLY & INSTALLATION
Letter references in parenthesis (A) refer to the included Identification Key
INSTALL AIR COUPLER
Prepare a standard 1/4 in. NPT male air coupler (sold separately) for
use with your tool.
1. Wrap the external threads of the male coupler with sealant tape.
1.1 Wrap tape in a clockwise direction so it will not unravel.
1.2 Do not tape all the threads. Leave several leading threads
unwrapped for easier alignment.
2. Screw the coupler into the tool's air inlet and tighten with a wrench
until snug.
3. Run the compressor at a low volume and check the connection for
air leaks. Do not use the tool until all air leaks are repaired or the
faulty component is replaced.
10
1/4 and 1/8 in. Mini Air Die Grinder
• Wrench
For technical questions call 1-800-665-8685
V1.0

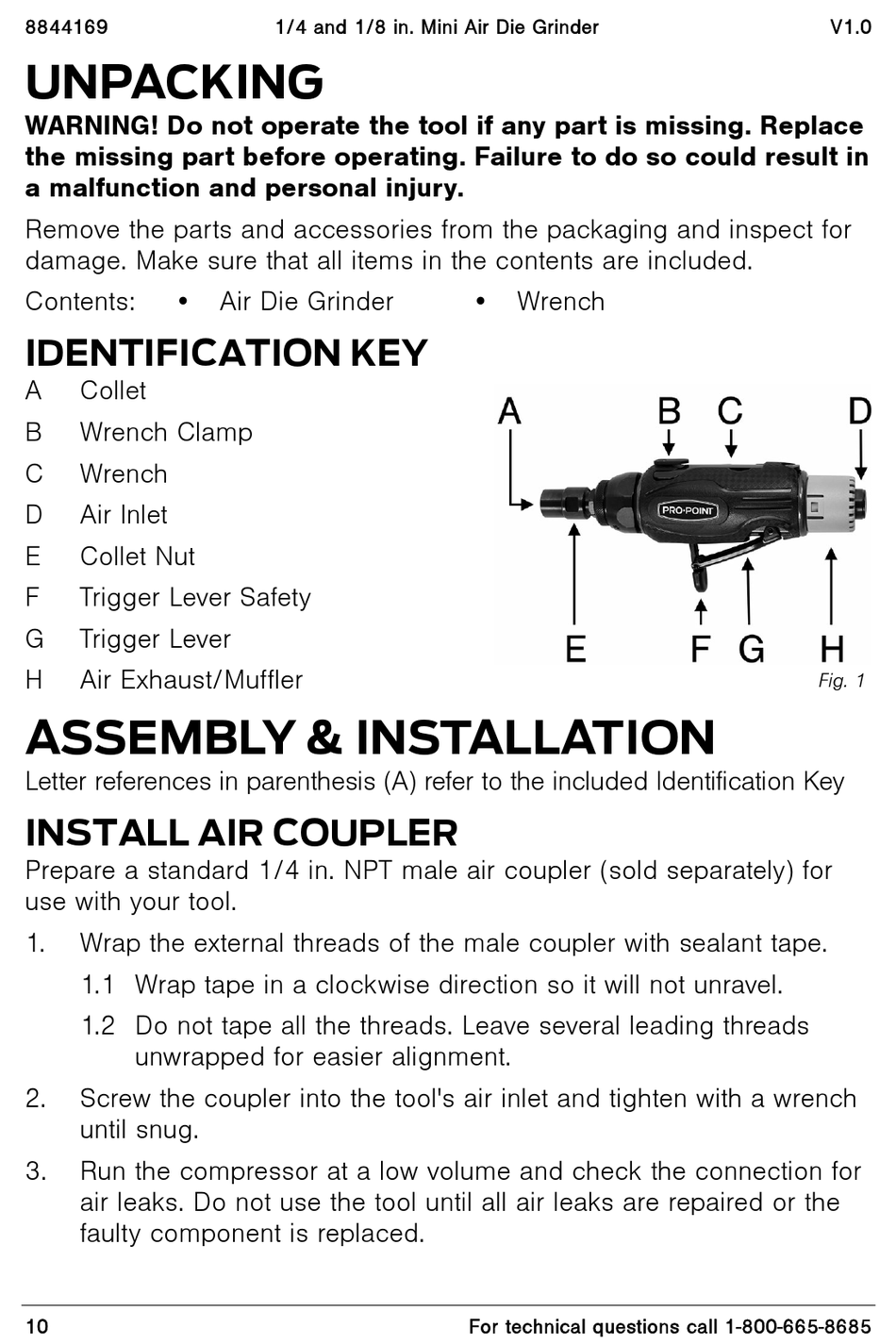

Fig. 1
