Hioki SM9001 Instruction Manual

Hioki SM9001 Instruction Manual

Surface/volume resistance measurement electrode, verification fixture for surface resistance measurement

Advertisement

Quick Links

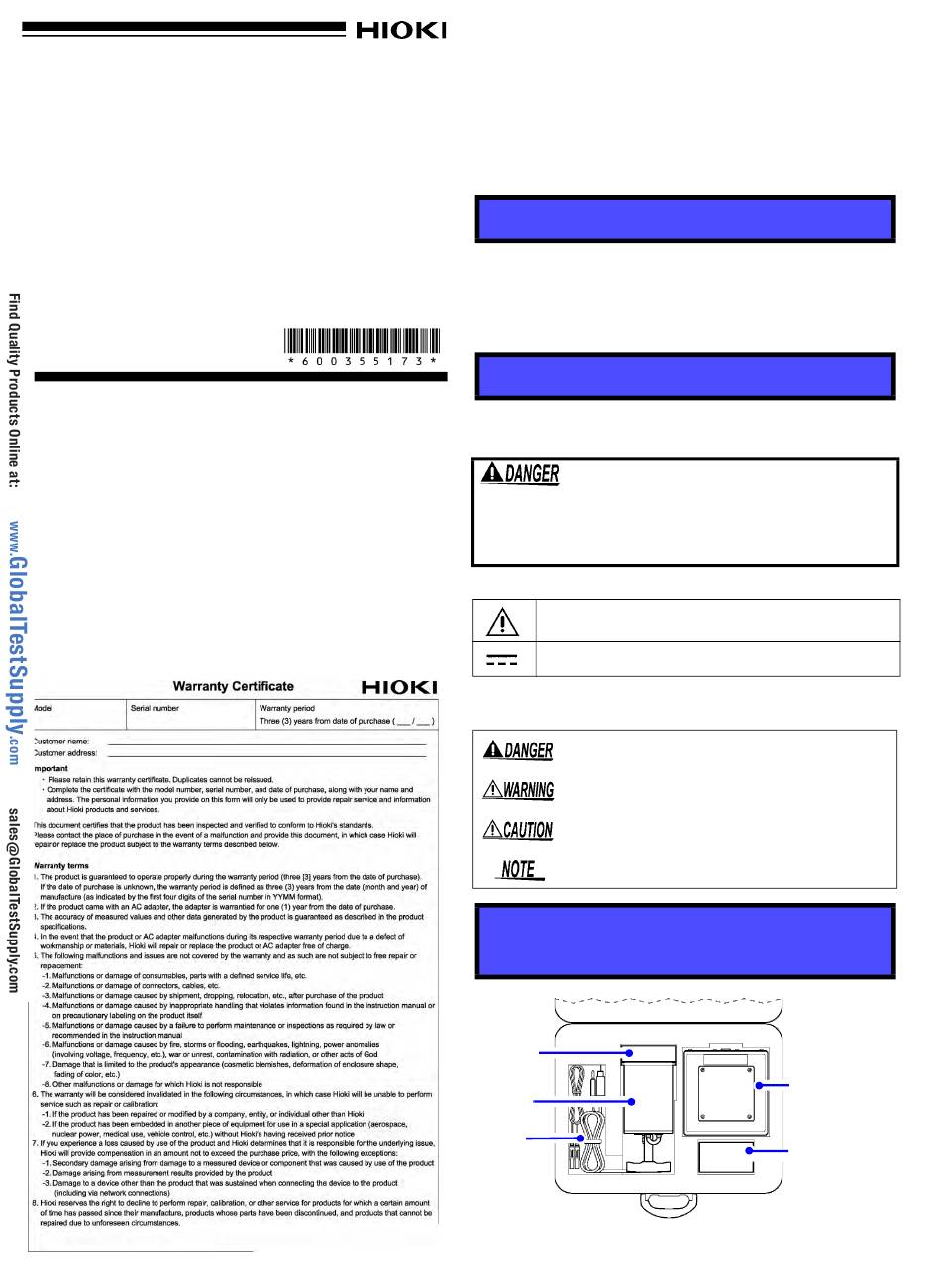

SM9001
SURFACE/VOLUME RESISTANCE
MEASUREMENT ELECTRODE
SM9002
VERIFICATION FIXTURE FOR
SURFACE RESISTANCE MEASUREMENT
Instruction Manual
May 2019 Revised edition 3
SM9001A981-03 19-05H
Introduction
Thank you for purchasing the HIOKI Model SM9001 Surface/Volume Resis-
tance Measurement Electrode and the HIOKI Model SM9002 Verification Fix-
ture for Surface Resistance Measurement . To obtain maximum performance
from the device, please read this manual first, and keep it handy for future ref-
erence.
Initial Inspection
When you receive the device, inspect it carefully to ensure that no damage oc-
curred during shipping. If damage is evident, or if it fails to operate according to
the specifications, contact your dealer or Hioki representative.
Overview

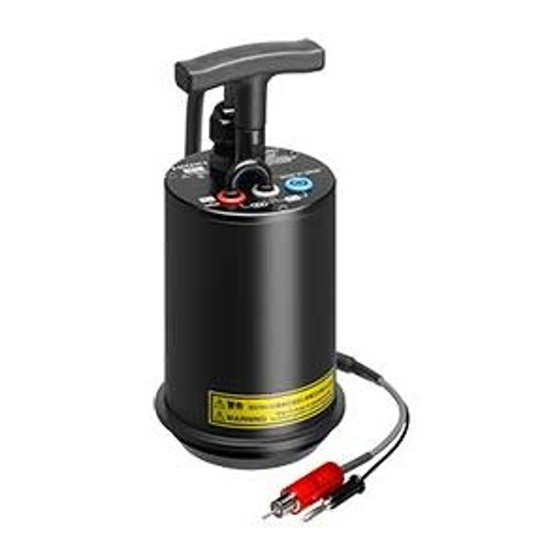

The SM9001, an electrode for measuring the surface resistance and volume re-
sistance of flat samples, is an optional product designed for use with Hioki Super
Megohm Meters and Digital Super Megohm Meters/Micro-ammeters. It com-
EN
plies with JIS C 2170 (IEC 61340-2-3) and is capable of reliable measurement
in applications ranging from evaluation of electrostatic countermeasures to
high-resistance measurement in materials development and other fields.
Safety Information
This manual contains information and warnings essential for safe operation of
the device and for maintaining it in safe operating condition. Before using it, be
sure to carefully read the following safety precautions.
Mishandling this device during use could result in injury or
death, as well as damage to the device. Be certain that you
understand the instructions and precautions in the manual
before use. We disclaim any responsibility for accidents or
injuries not resulting directly from device defects.
Safety Symbols
Indicates cautions and hazards. When the symbol is printed on the instru-
ment, refer to a corresponding topic in the Instruction Manual.
Indicates DC (Direct Current).
The following symbols in this manual indicate the relative importance of cautions
and warnings.
Indicates an imminently hazardous situation that will result in death or
serious injury to the operator.
Indicates a potentially hazardous situation that may result in death or
serious injury to the operator.
Indicates a potentially hazardous situation that may result in minor or
moderate injury to the operator or damage to the device or malfunction.
Indicates advisory items related to performance or correct operation of
the device.
Stowing the electrode in its
carrying case
Protective
stand
SM9001
Cables
Counter-elec-
trode with inte-
grated stand
SM9002
Verification Fixture
for Surface Resis-
tance Measure-
ment
(Option)

Advertisement

loading
Need help?

Need help?

Do you have a question about the SM9001 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hioki SM9001

  • Page 1 SURFACE RESISTANCE MEASUREMENT The SM9001, an electrode for measuring the surface resistance and volume re- sistance of flat samples, is an optional product designed for use with Hioki Super Instruction Manual Megohm Meters and Digital Super Megohm Meters/Micro-ammeters. It com-...
  • Page 2 Dimensions: Approx. 154W×155D×25H mm erly exposed. Using the device in such conditions could (6.06”W × 6.10”D × 0.98”H), cause an electric shock, so contact your dealer or Hioki repre- Mass: Approx. 1.2 kg (42.3 oz.) sentative for repair. Electrode dimensions: Approx. 100 mm×100 mm Accessories •...
  • Page 3 Protective stand Place the sample on the stand surface of the counter-electrode with integrat- ed stand and gently place the SM9001 on top of the sample at least 10 mm from the edge, lowering it from directly above. Counter-electrode Counter-elec- Verify that no voltage is being output from the Super Megohm Meter.
  • Page 4 SM9001 to excessive force by pulling on or twisting cables. Operating environ- Indoors, altitude up to 2000 m (6562 feet), • Due to the delicate nature of the contact with the SM9001, you may obtain ment Pollution degree 2 out-of-range measured values even if the product is operating properly if the SM9001 has not been placed on the surface from directly above.
