- Page 1 Instructions for use Dynamis TSD Dynamis TSD Dynamis TSD Instructions for use Instructions for use Special people, special solutions. Besondere Menschen, besondere Lösungen. 2021-05-26 Instructions of use Dynamis TSD 1 of 36...
- Page 2 All content, especially texts, photographs and graphics, are protected by copyright. All rights, including reproduction, publication, editing and translation, are reserved. © by SORG Rollstuhltechnik GmbH+Co. KG Benzstraße 3-5, 68794 Oberhausen-Rhein hausen / Germany. You can find our general terms and condi- tions on our order forms and at www.sorgroll-...
-
Page 3: Table Of Contents
3.11 Armrest handling 3.11.1 General information on armrests 27 3.12 Handling of the lateral support 3.12.1 General information on lateral support 3.13 Handling of the outdoor-front-end 3.13.1 General information on the outdoor- front-end 2021-05-26 Instructions of use Dynamis TSD 3 of 36... -

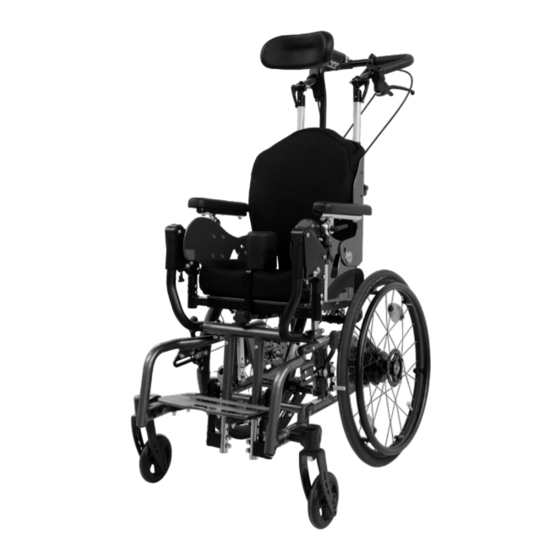

Page 4: Wheelchair Overview
17 Control lever for drum brake 18 Star grip for angle adjustment of the handlebar 19 Armrest 20 Back guide 21 Wheel 22 Spring damping 23 Knee lever brake 24 Caster wheel 4 of 36 Instructions for use Dynamis TSD 2021-05-26... -
Page 5: General Informations
2 General informations 2.1 Introductory Welcome to the SORG family - thank you very much for the trust you have placed in us and for choosing our product. This wheelchair has been individually made to measure for your special needs. -
Page 6: Explanation Of Symbols
Rotate counter clockwise Rear view Steps to be performed at the same time Attach part Steps to be performed in se- quence Remove part Steps to be performed on both sides 6 of 36 Instructions for use Dynamis TSD 2021-05-26... -
Page 7: Purpose
Dynamis TSD is an aid for the mobility of physically and mentally disabled people. Its dynamic functions enable the user to carry out guided motor movements.. -
Page 8: General Safety Instructions
Legrest: Trapping the legs during transport and wheelchair access • Headrest: Missing headrest or loss during transport • Armrest: Loss during transport • Push handle: Loss or lack of pushing option during transport or wheelchair access. 8 of 36 Instructions for use Dynamis TSD 2021-05-26... - Page 9 Always carry the wheelchair by the frame, never by the seat shell, the pull-out push handles / bush bar, the legrest and / or the footplate! 90° max 7° Inclines, slopes and obstacles 90° max 7°/ 12% max 7°/ 12% 2021-05-26 Instructions of use Dynamis TSD 9 of 36...
-
Page 10: Loading And Transport Without Occupants
7176-19 may be used as a seat in a motor vehicle. Successfully tested wheelchairs are marked with the symbol for the attachment point on the attached nameplate. The Dynamis TSD has been successfully tested according to ISO 7176-19 and is therefore approved as a seat in a motor vehicle if you have the necessary restraint devices. -
Page 11: Other Important Information
Nevertheless, there is a risk of ignition of the hardly inflammable textile compo- nents. Keep sources of ignition away from the wheelchair. The wheelchair must not be exposed to excessive moisture or come into contact with salt water. 2021-05-26 Instructions of use Dynamis TSD 11 of 36... - Page 12 > 42°C Pelvic safety devices (pelvic belts as a positioning aid) are optionally available for wheelchair configu- ration via the SORG order forms or by ordering using spare parts catalogs. Installation is carried out by your specialist retailer. In individual cases it can happen that the product interacts with electromagnetic fields (e.g. theft protec- tion of shops).
-
Page 13: Handling Of Wheels
(2) After insertion,the locking ball (A) must protrude visibly. Ziehen Pull at least 1x after each insertion to test whether the quick-release axle is engaged. It should no longer be possi- ble to pull the wheels outwards. 2021-05-26 Instructions of use Dynamis TSD 13 of 36... -
Page 14: Handling Of Caster Wheels
Incorrectly adjusted caster wheels or driving too fast can lead to steering wheel flutter. At the first sign of a flutter, slow down immediately and have the caster wheels readjusted by a specialist retailer. 3.2.2 Caster wheel track fixation Unlocking: 90° Locking: 90° 14 of 36 Instructions for use Dynamis TSD 2021-05-26... -
Page 15: Handling The Seat And Back
Activate the seat tilt only when the vehicle is stationary with the brakes activated. 3.3.2 Dynamic back Locking (unlocking: proceed in reverse order): Please have the spring damping adjusted by a specialist retailer (see service booklet) 3.3.3 Setting the rebound speed 2021-05-26 Instructions of use Dynamis TSD 15 of 36... -
Page 16: Seat Tilt
3.3 Handling the seat and back 3.3.4 Seat tilt Tilting simple gas pressure spring: Tilting double gas pressure spring: 16 of 36 Instructions for use Dynamis TSD 2021-05-26... -
Page 17: Handling Pushing Aids
Before each use of the pushing aids, check the tight lock and the functionality of the star handles. It must not be possible to move the pushing aids in the holder when the star handles are in the closed position. 3.4.2 Push handle Height adjustment: 2021-05-26 Instructions of use Dynamis TSD 17 of 36... - Page 18 3.4 Handling pushing aids Adjusting the angle: 18 of 36 Instructions for use Dynamis TSD 2021-05-26...
-
Page 19: Using The Leg Support
3.5.1 General information on leg supports Types of leg supports: Standard lowe leg length Short lower leg length 3.5.2 Spring-loaded legrest Locking (unlocking: proceed in the reverse order): 90° (3a) (3b) 2021-05-26 Instructions of use Dynamis TSD 19 of 36... -
Page 20: Footplate
3.5 Using the leg support 3.5.3 Footplate Locking (unlocking: proceed in the reverse order): (6a) (6b) 20 of 36 Instructions for use Dynamis TSD 2021-05-26... -
Page 21: Handling Of The Brake System
3.6.2 Drum brake Deceleration: Uneven use of both brake levers causes cornering. Clean the brake bodies of the drum bra- ke wheels at short intervals with a soft brush. Locking: (2a) (2b) Unlock: 2021-05-26 Instructions of use Dynamis TSD 21 of 36... -
Page 22: Locking Brake
Locking the knee lever brake: (2a) (2b) To lock in the open or closed position: First set the brake in the desired position (locked / unlocked). 90° Unlock: 90° 22 of 36 Instructions for use Dynamis TSD 2021-05-26... -
Page 23: Handling The Anti-Tipper
Always turn the anti tipper only 180 ° from the deactivated position to the active position. Avoid full turns in one direction of rotation, otherwise the tension spring inside the anti tipper will be damaged and the anti tipper may lose its functionality. 2021-05-26 Instructions of use Dynamis TSD 23 of 36... -
Page 24: Handling The Headrest
3.8 Handling the headrest 3.8.1 General information on the headrest Height adjustable: Set the distance (standard headrest): 24 of 36 Instructions for use Dynamis TSD 2021-05-26... -
Page 25: Handling Of The Abduction Wedge
3.9 Handling of the abduction wedge 3.9.1 General information on the abduction wedge Set the distance: 2021-05-26 Instructions of use Dynamis TSD 25 of 36... -
Page 26: Handling The Therapy Table
3.10 Handling the therapy table 3.10.1 General information on the therapy table Adjusting the depth: Adjusting the height: 26 of 36 Instructions for use Dynamis TSD 2021-05-26... -
Page 27: Armrest Handling
3.11 Armrest handling 3.11.1 General information on armrests Adjusting the height: Adjusting the angle: 2021-05-26 Instructions of use Dynamis TSD 27 of 36... -
Page 28: Handling Of The Lateral Support
3.12 Handling of the lateral support 3.12.1 General information on lateral support Open / close: 28 of 36 Instructions for use Dynamis TSD 2021-05-26... -
Page 29: Handling Of The Outdoor-Front-End
Note the max. weight capacity of the wheelchair, this also applies to the outdoor- max. front-end. km/h Assembly (dismantling: Proceed in the reverse direction in Figure 4): 90° (6a) (6b) 90° 2021-05-26 Instructions of use Dynamis TSD 29 of 36... -
Page 30: Repairs / Maintenance / Re-Use
• if necessary, pack removable textile parts in foil or something similar • secure the wheelchair against rolling away and soiling • storage in a dry environment without aggressive environmental influences 30 of 36 Instructions for use Dynamis TSD 2021-05-26... -
Page 31: Lifespan
For safety reasons and to maintain product liability, an inspection by your specialist retailer is re- quired at least once a year. This must be carried out and documented according to the checklist on the following page. 2021-05-26 Instructions of use Dynamis TSD 31 of 36... - Page 32 Anti tipper checked for tight fit and functionality. Oil: moving parts and bearings are oiled Final check: Functional check of all mechanical adjustment devices carried out 32 of 36 Instructions for use Dynamis TSD 2021-05-26...
-
Page 33: Technical Data
24,85 kg Frame size 1, seat frame, 12" wheels with drum Empty weight min. driving with brakes, steering wheels, legrests, push bars.l RB 300 mm, 12'' wheels, 4'' cas- ter wheels PU 2021-05-26 Instructions of use Dynamis TSD 33 of 36... -
Page 34: Meaning Of The Labels
5.3 Declaration of conformity SORG Rollstuhltechnik declares that the Dynamis TSD product is a class 1 device and that it com- plies with the relevant provisions of EU Guideline (EU) 2017/745 on medical products. This has been verified by a conformity assessment procedure in accordance with the medical device guideline. -
Page 35: Proof Of Annual Inspection
(operating year 4) Notes: Date / Signature of specialist retailer annual inspection carried out according to company stamp: the checklist (operating year 5) Bemerkungen: Date / Signature of specialist retailer 2021-05-26 Instructions of use Dynamis TSD 35 of 36... - Page 36 Instructions for use Dynamis TSD SORG Rollstuhltechnik GmbH + Co. KG Benzstraße 3-5 68794 Oberhausen-Rheinhausen Germany Fon +49 7254 9279-0 Fax +49 7254 9279-10 export@sorgrollstuhltechnik.de www.sorgrollstuhltechnik.de Stamp specialist retailer...
