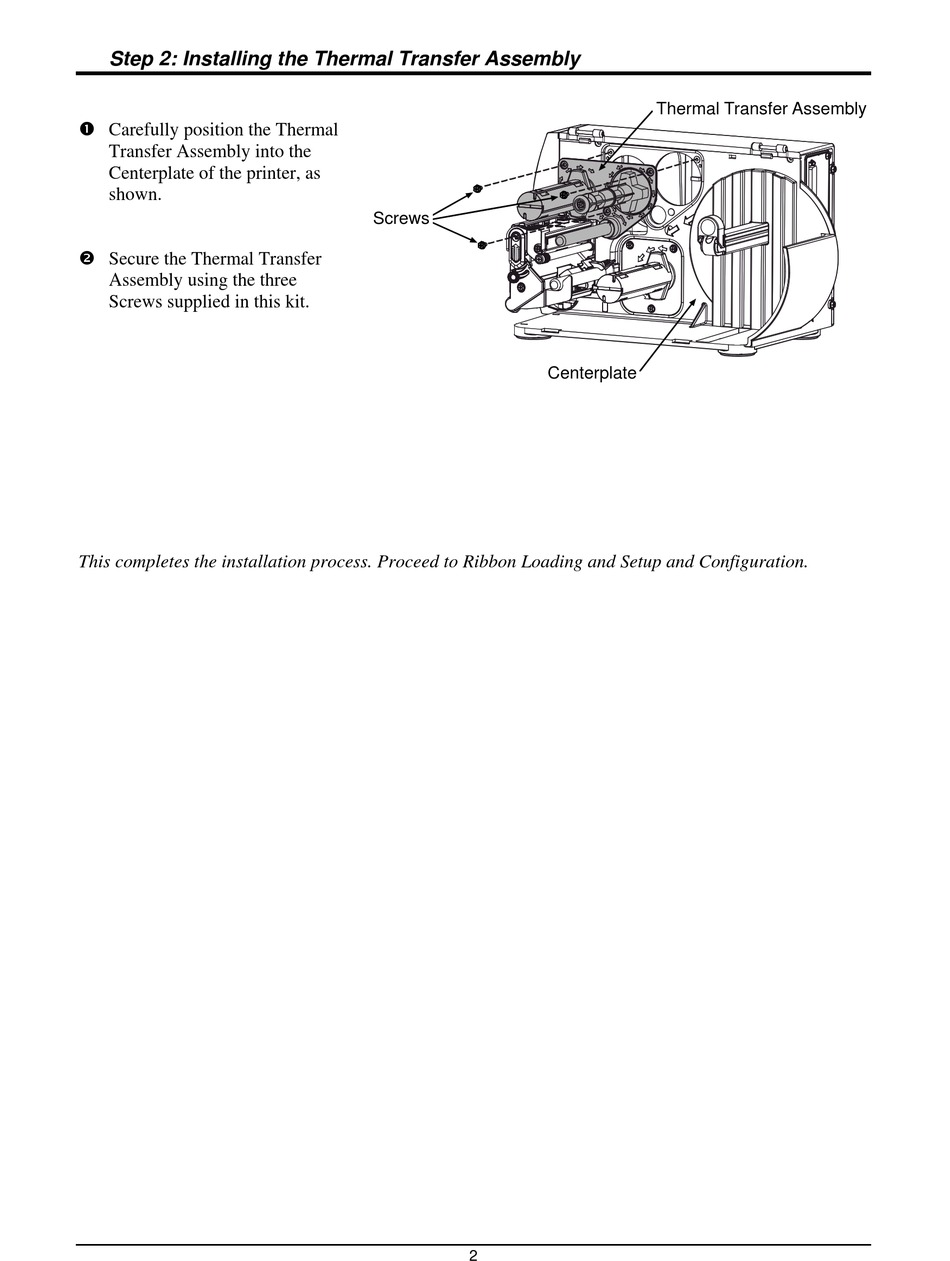

Step 2: Installing the Thermal Transfer Assembly
Carefully position the Thermal
Transfer Assembly into the
Centerplate of the printer, as
shown.
Secure the Thermal Transfer
Assembly using the three
Screws supplied in this kit.
This completes the installation process. Proceed to Ribbon Loading and Setup and Configuration.
Screws
Centerplate
2
Thermal Transfer Assembly
