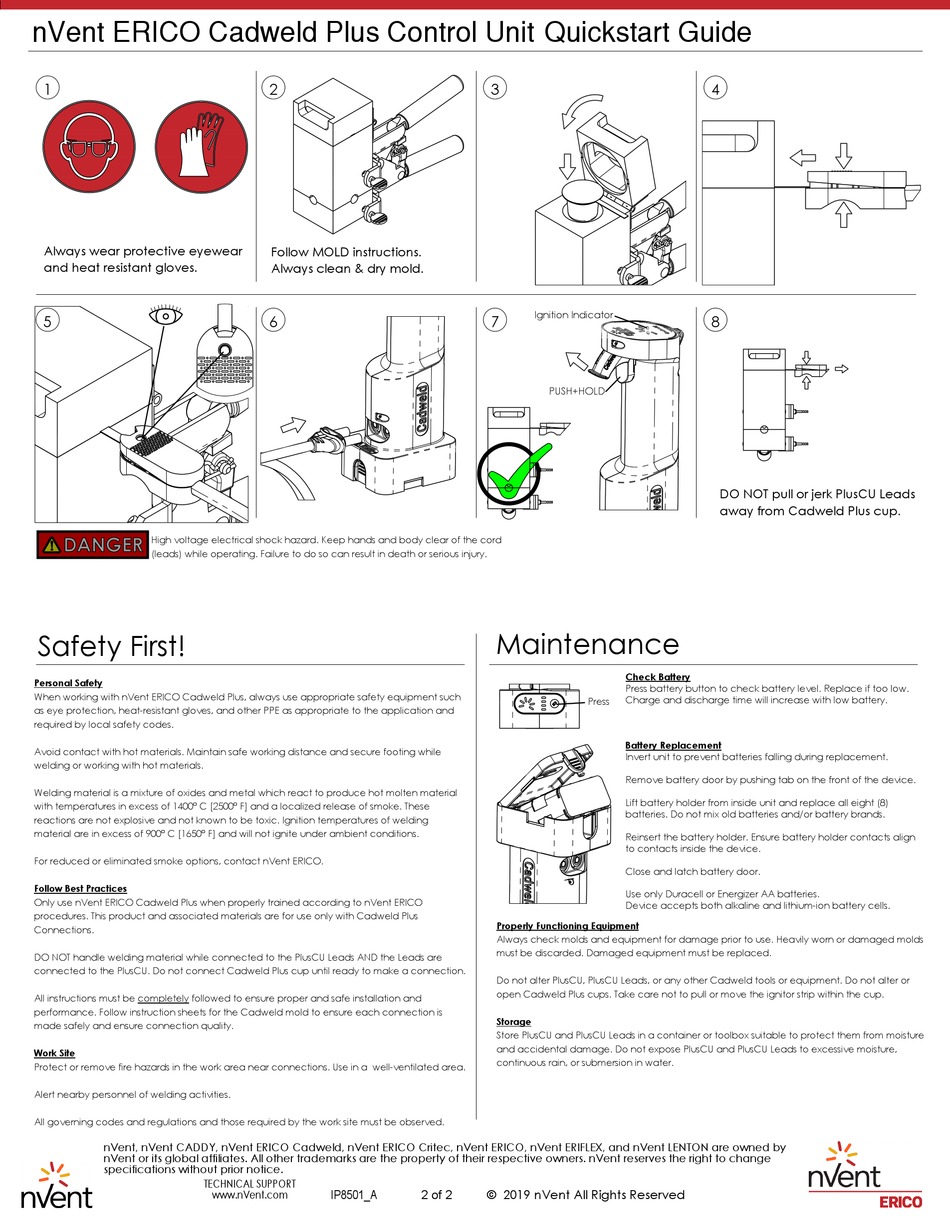

nvent ERICO Plus Quick Start Manual page 2


1
Always wear protective eyewear
and heat resistant gloves.
5
High voltage electrical shock hazard. Keep hands and body clear of the cord
(leads) while operating. Failure to do so can result in death or serious injury.
Safety First!
Personal Safety
When working with nVent ERICO Cadweld Plus, always use appropriate safety equipment such
as eye protection, heat-resistant gloves, and other PPE as appropriate to the application and
required by local safety codes.
Avoid contact with hot materials. Maintain safe working distance and secure footing while
welding or working with hot materials.
Welding material is a mixture of oxides and metal which react to produce hot molten material
with temperatures in excess of 1400° C [2500° F] and a localized release of smoke. These
reactions are not explosive and not known to be toxic. Ignition temperatures of welding
material are in excess of 900° C [1650° F] and will not ignite under ambient conditions.
For reduced or eliminated smoke options, contact nVent ERICO.
Follow Best Practices
Only use nVent ERICO Cadweld Plus when properly trained according to nVent ERICO
procedures. This product and associated materials are for use only with Cadweld Plus
Connections.
DO NOT handle welding material while connected to the PlusCU Leads AND the Leads are
connected to the PlusCU. Do not connect Cadweld Plus cup until ready to make a connection.
All instructions must be completely followed to ensure proper and safe installation and
performance. Follow instruction sheets for the Cadweld mold to ensure each connection is
made safely and ensure connection quality.
Work Site
Protect or remove fire hazards in the work area near connections. Use in a well-ventilated area.
Alert nearby personnel of welding activities.
All governing codes and regulations and those required by the work site must be observed.
nVent, nVent CADDY, nVent ERICO Cadweld, nVent ERICO Critec, nVent ERICO, nVent ERIFLEX, and nVent LENTON are owned by
nVent or its global affiliates. All other trademarks are the property of their respective owners. nVent reserves the right to change
specifications without prior notice.
TECHNICAL SUPPORT
2
Follow MOLD instructions.
Always clean & dry mold.
6
IP8501_A
www.nVent.com


3
Ignition Indicator
7
PUSH+HOLD
Maintenance
Press
Properly Functioning Equipment
Always check molds and equipment for damage prior to use. Heavily worn or damaged molds
must be discarded. Damaged equipment must be replaced.
Do not alter PlusCU, PlusCU Leads, or any other Cadweld tools or equipment. Do not alter or
open Cadweld Plus cups. Take care not to pull or move the ignitor strip within the cup.
Storage
Store PlusCU and PlusCU Leads in a container or toolbox suitable to protect them from moisture
and accidental damage. Do not expose PlusCU and PlusCU Leads to excessive moisture,
continuous rain, or submersion in water.
2 of 2 © 2019 nVent All Rights Reserved
4
8
DO NOT pull or jerk PlusCU Leads
away from Cadweld Plus cup.
Check Battery
Press battery button to check battery level. Replace if too low.
Charge and discharge time will increase with low battery.
Battery Replacement
Invert unit to prevent batteries falling during replacement.
Remove battery door by pushing tab on the front of the device.
Lift battery holder from inside unit and replace all eight (8)
batteries. Do not mix old batteries and/or battery brands.
Reinsert the battery holder. Ensure battery holder contacts align
to contacts inside the device.
Close and latch battery door.
Use only Duracell or Energizer AA batteries.
Device accepts both alkaline and lithium-ion battery cells.
