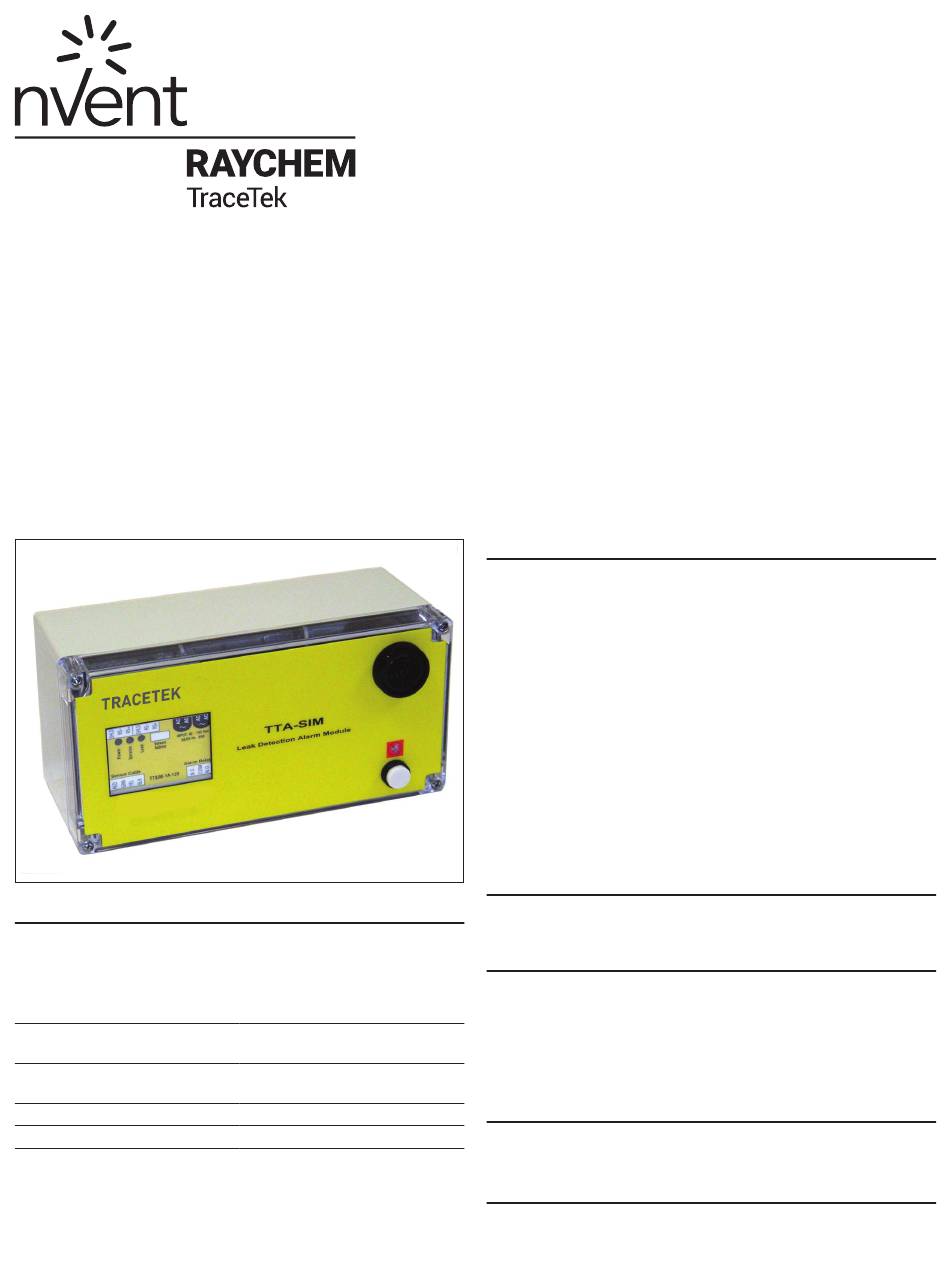

TTA-SIM
Single Channel Alarm Module Installation/Operation Instructions
PRODUCT INFORMATION
nVent RAYCHEM
TTA-SIM-
1A-120 &
TTA-SIM-2-120
TTA-SIM-1A-230 &
TTA-SIM-2-230
Relay contacts
Installation categories
Storage temperature
Operating temperature
Enclosure
96 to 132 Vac, 50/60 Hz, 3 W
216 to 253 Vac, 50/60 Hz, 3 W
Form C (SPDT), 250 Vac/30 Vdc
at 2 Amps maximum
Overvoltage Category II
Pollution Degree 2
–18°C to 60°C (0°F to 140°F)
0°C to 50°C (32°F to 122°F)
NEMA 1; IP20
DESCRIPTION
Please read these instructions and keep them in a safe place.
These instructions must be followed carefully to ensure
proper operation.

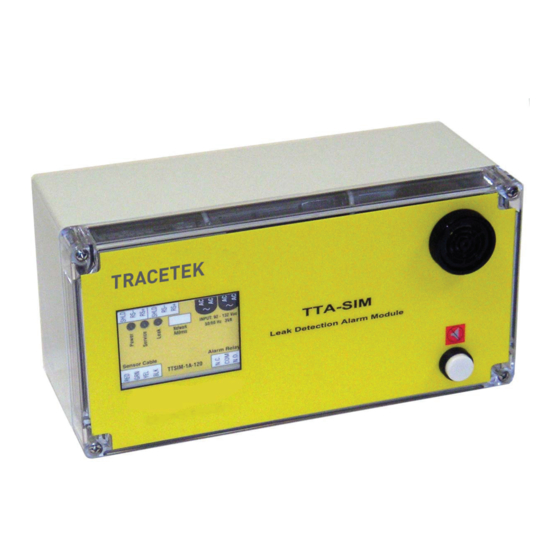

The nVent RAYCHEM TraceTek TTA-SIM must be installed in
an ordinary (non-hazardous) location. It may be used with any
TraceTek sensing cable, point sensor and/or normally open, dry
contact devices (float switch, pressure or vacuum switch, optical
probe with adapter, limit switch, etc.). Up to 150 m (500 ft) of
sensing cable can be monitored by the TTA-SIM. Contact factory
for information regarding longer monitoring distance.
An external disconnect device and appropriate branch circuit
protection (no more than 20 amp rating) should be provided for
the TTA-SIM. The disconnect device should be clearly marked
as such. Follow all national and local codes and regulations
applicable to the installation.
INSTALLATION ITEMS (NOT SUPPLIED)
• Wall fasteners for surface mounting (four screws)
• TT-RS485 telemetry cable (optional)
TOOLS REQUIRED
• Drill for making conduit / cable gland entries
• Phillips (cross-head) screwdriver
• Small flat-blade screwdriver
• Small needle nose pliers (required only for device
programming if digital communication is used)
• Tools to mount enclosure
STORAGE
Keep the TTA-SIM modules in a dry place prior to installation.
Avoid damage to components.
ADDITIONAL ITEMS
An agency-approved zener barrier must be used where sensing
cable connected to the TTA-SIM will be located in Class1 Div 1
(Zone 0 or 1 in Europe) Hazardous Locations.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for nvent Raychem TraceTek TTA-SIM
Summary of Contents for nvent Raychem TraceTek TTA-SIM
- Page 1 Please read these instructions and keep them in a safe place. These instructions must be followed carefully to ensure proper operation. The nVent RAYCHEM TraceTek TTA-SIM must be installed in an ordinary (non-hazardous) location. It may be used with any TraceTek sensing cable, point sensor and/or normally open, dry contact devices (float switch, pressure or vacuum switch, optical probe with adapter, limit switch, etc.).
-
Page 2: Selecting The Mounting Position
: In order to provide maximum electrostatic discharge Note protection, and to be CE compliant, the TTA-SIM must be grounded. Figure 3. Power connections 2 | nVent.com... - Page 3 LEADER CABLE CONNECTIONS FOR SENSOR The TTA-SIM can be used with any of the nVent RAYCHEM Sensor connections TraceTek family of sensing cables including TT1000, TT3000, (R G Y B) TT5000 and TT5001, as well as float switches and point probes.
-
Page 4: Network Address Assignment
Communications setup : This section can be skipped if serial communication is not being used. Note If the TTA-SIM will be connected to a nVent RAYCHEM TraceTek TTDM or other host system using RS-485 serial communication, Jumper Jumper the end of line (EOL) jumper and network address must be set. - Page 5 Figure 10. TTA-SIM-2 LED positions (all LEDs are located on the TTSIM unit) lists various sensor status conditions and possible corrective actions. Table 4 lists communication status conditions (applicable when the TTA-SIM is used in a network system). nVent.com | 5...
- Page 6 ©2018 nVent. All nVent marks and logos are owned or licensed by nVent Services GmbH or its affiliates. All other trademarks are the property of their respective owners. nVent reserves the right to change specifications without notice. RaychemTraceTek-IM-H57541-TTASIM-EN-1805...
