NGC-40-PTM
Power and Termination Module for use with the
nVent RAYCHEM NGC-40 system Installation Instructions
APPROVALS
WARNING:
This component is an electrical device that must be installed
correctly to ensure proper operation and to prevent shock or fire.
A
Hazardous Locations
Class I, Div. 2, Groups A,B,C,D T4
Class I, Zone 2, AEx nA IIC T4 IP20
Ex nA IIC T4 X
–40˚C ≤ Ta ≤ +65˚C
3128486
Certified to:
CAN/CSA STD. C22.2 No. 213-M1987 (R2004)
CAN/CSA STD. C22.2 No. 61010-1:2004
EN 61010-1 (2001)
CAN/CSA STD. E60079-15:02 (R2006)
DESCRIPTION

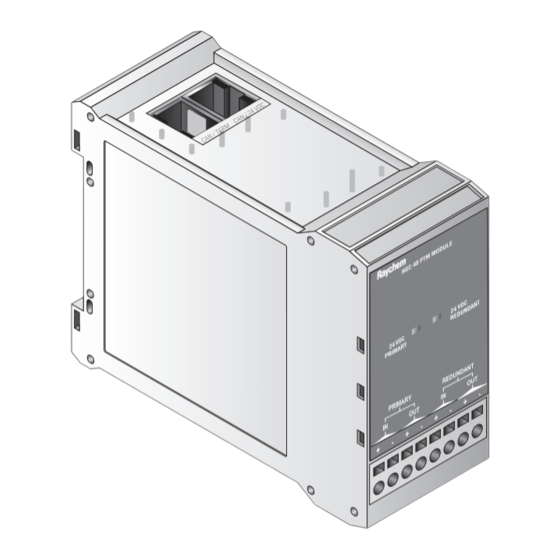

The nVent RAYCHEM NGC-40-PTM accepts a primary and
redundant power supply input, accepts the CAN bus inputs, and
provides for termination of the CAN bus. The NGC-40-PTM then
distributes both power and Can bus signals to other NGC-40
modules. Each NGC-40-PTM can provide power for a maximum
of 10 NGC-40 modules.
TOOLS REQUIRED
• Small flat-blade screwdriver
ADDITIONAL MATERIALS
• Custom built CAN cables with RJ-45 connections
• CAN Termination Resistor
KIT CONTENTS
Item Qty
Description
A
1
NGC-40-PTM module
Conforms to:
FM Class Number 3600 (11/98)
FM Class Number 3611 (10/99)
ANSI/UL STD. 60079-15-2009
UL STD. 61010-1
For technical support, call nVent at
(800) 545-6258.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for nvent RAYCHEM NGC-40-PTM
Summary of Contents for nvent RAYCHEM NGC-40-PTM
- Page 1 Power and Termination Module for use with the nVent RAYCHEM NGC-40 system Installation Instructions DESCRIPTION The nVent RAYCHEM NGC-40-PTM accepts a primary and redundant power supply input, accepts the CAN bus inputs, and provides for termination of the CAN bus. The NGC-40-PTM then distributes both power and Can bus signals to other NGC-40 modules.
-
Page 2: Electromagnetic Compatibility
45.1 mm (1.78 in) wide x 87 mm (3.43 in) high x 106.4 mm (4.2 in) deep SYSTEM POWER SUPPLY REQUIREMENTS Output voltage 24 Vdc ±10% Approval NRTL approved device for use in nonhazardous or hazardous locations as appropriate Overcurrent protection Must have an automatic disconnect upon a single fault condition 2 | nVent.com... -
Page 3: Wiring Terminals
Primary 24 Vdc Out (+) 24 Vdc Redundant No power Primary 24 Vdc Out (–) Green Power on Redundant 24 Vdc In (+) Redundant 24 Vdc In (–) Redundant 24 Vdc Out (+) Redundant 24 Vdc Out (–) nVent.com | 3... - Page 4 Redundant Primary Primary To next PTM module To next PTM module – Terminals 5 & 6 – Terminals 1 & 2 Note: The primary and redundant 24 Vdc outputs each support only one additional NGC-40 PTM module 4 | nVent.com...
- Page 5 Servicing The NGC-40-PTM contains no user serviceable parts. Contact your nVent representative for service and an RMA number if required. WARNING–EXPLOSION HAZARD–SUBSTITUTION OF AVERTISSEMENT–RISQUE D'EXPLOSION–LA SUBSTITUTION COMPONENTS MAY IMPAIR SUITABILITY FOR CLASS DE COMPOSANTS PEUT RENDRE CE MATÉRIEL...
- Page 6 HTC/HTC3 HTC/HTC3 HTC/HTC3 Module 11 Module 12 Module 13 Module 14 Module 20 * Power supply shall have a means for disconnect from line voltage * Power supply shall have a means for disconnect from line voltage 6 | nVent.com...
- Page 7 HTC/HTC3 HTC/HTC3 HTC/HTC3 Module 31 Module 32 Module 33 Module 34 Module 40 * Power supply shall have a means for disconnect from line voltage * Power supply shall have a means for disconnect from line voltage nVent.com | 7...
- Page 8 ©2018 nVent. All nVent marks and logos are owned or licensed by nVent Services GmbH or its affiliates. All other trademarks are the property of their respective owners. nVent reserves the right to change specifications without notice. Raychem-IM-H58119-NGC40PTM-EN-1805...
