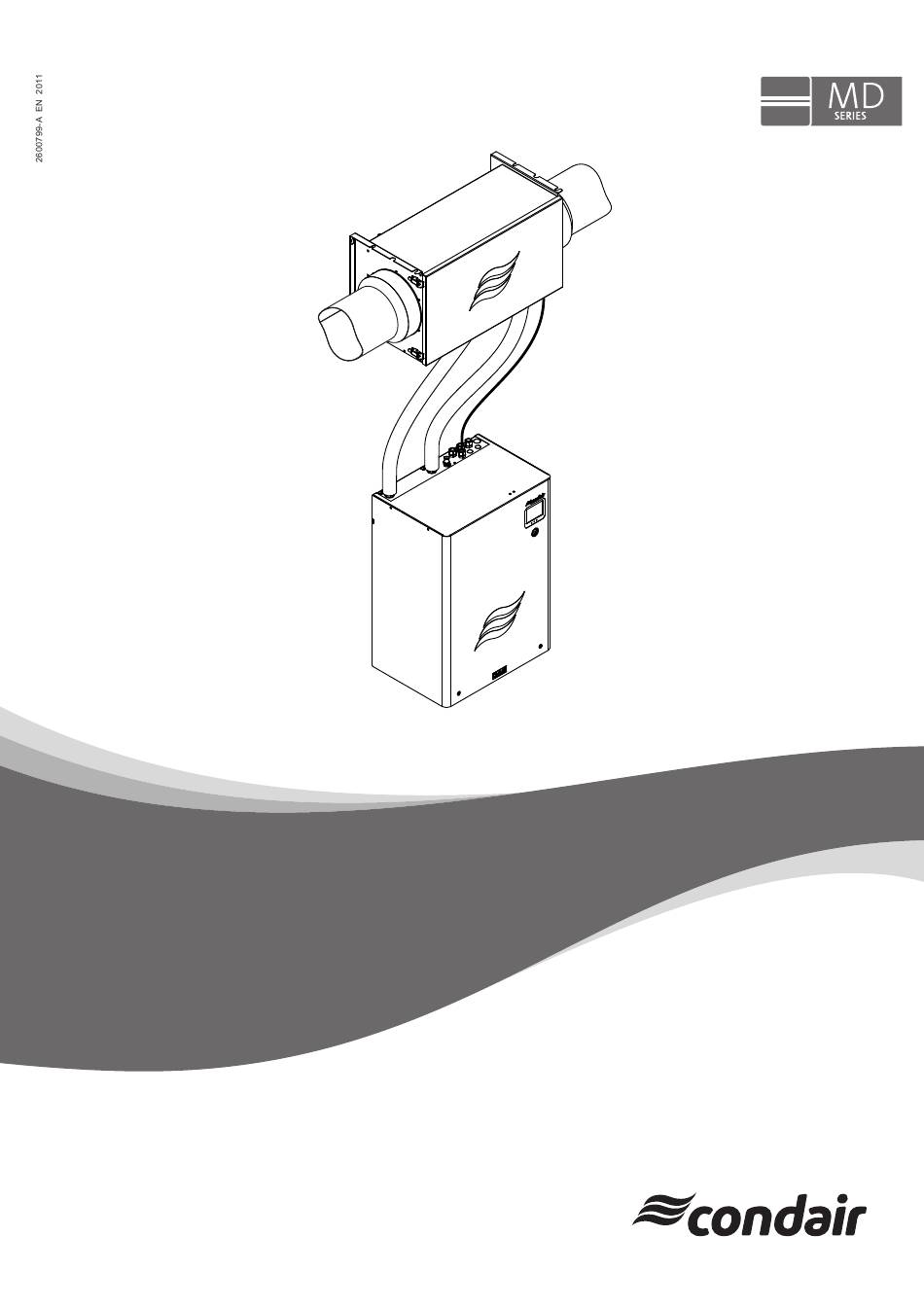

INSTALLATION AND COMMISSIONING
INSTRUCTIONS
Condair HumiLife – the efficient ERV solution
Condair MD
MD-EL-H
MD-FB-H
MD-WW-H
MD-HW-H
Humidification and Evaporative Cooling

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MD Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Condair MD Series

Summary of Contents for Condair MD Series

  • Page 1 INSTALLATION AND COMMISSIONING INSTRUCTIONS Condair HumiLife – the efficient ERV solution Condair MD MD-EL-H MD-FB-H MD-WW-H MD-HW-H Humidification and Evaporative Cooling...
  • Page 2 Liability Condair Group AG is not liable for any damages incurred as a result of poorly executed installation, improper operation or the use of components or equipment not approved by Condair Group AG.

  • Page 3: Table Of Contents

    Safety instructions for the installation work Installation overviews 5.2.1 Condair MD MD-EL-H variant installation overview 5.2.2 Condair MD MD-HW-H, MD-FB-H and MD-WW-H variants installation overview Requirements for the installation room Humidifier unit mounting 5.4.1 Instructions for positioning the humidifier unit 5.4.2...
  • Page 4 5.10 Electrical installation 5.10.1 Notes on electrical installation 5.10.2 Condair MD wiring diagram for external connections 5.10.3 Connection work for external connections 5.10.3.1 Connection of humidity and temperature sensor 5.10.3.2 Connection of external controller 0-10 V 5.10.3.3 Connection of the max. humidistat in the supply air duct 5.10.3.4 Connecting the air flow monitor...

  • Page 5: Introduction

    The Condair MD has been built using state-of-the-art technology and in accordance with the latest safety regulations. However, improper use of the Condair MD may put users and/or third parties at risk and/or may also cause damage to material assets.
  • Page 6 If the product changes owner, the installation and commissioning instructions must be handed over to the new operator. If these installation and commissioning instructions are lost, please contact your Condair partner. Language versions These installation and commissioning instructions are available in various languages. For more informa- tion, please contact your Condair partner.

  • Page 7: For Your Safety

    Furthermore, for safety and warranty reasons, interventions may only be undertaken by specialist per- sonnel authorised by Condair. It is assumed that all persons entrusted to work on the Condair MD are familiar with and abide by the regulations on occupational health and safety and accident prevention.
  • Page 8 For this reason: Once the Condair MD has been commissioned for the first time, it must no longer be switched off and must be operated either in "humidifier mode" or in "standby mode". This will ensure that the water system is purged at regular intervals, and any contamination is counteracted.

  • Page 9: Product Overview

    Product overview Model overview The Condair MD is available in four different variants with a humidification output of 2 kg/h for installation in horizontal ventilation ducts (H). – EL: heating up the humidification water with integrated, electrical heating. – HW: heating up the humidification water using the integrated heat exchanger connected to a hot water system of a heating system.

  • Page 10: System Overviews

    System overviews 3.3.1 Condair MD MD-EL-H variant system overview Extract air Supply air 1 Shut-off valve, fresh water supply (by others) 2 Water treatment (optional) 3 Drain funnel with siphon (by others) 4 Fresh water supply connection G 3/4" (ET) 5 Drain connection ø40 mm...

  • Page 11: Condair Md Md-Hw-H Variant System Overview

    3.3.2 Condair MD MD-HW-H variant system overview Extract air Supply air 1 Shut-off valve, fresh water supply (by others) 2 Water treatment (optional) 3 Drain funnel with siphon (by others) 4 Fresh water supply connection G 3/4" (ET) 5 Drain connection ø40 mm...

  • Page 12: Condair Md Md-Fb-H Variant System Overview

    3.3.3 Condair MD MD-FB-H variant system overview Extract air Supply air 1 Shut-off valve, fresh water supply (by others) 2 Water treatment (optional) 3 Drain funnel with siphon (by others) 4 Fresh water supply connection G 3/4" (ET) 5 Drain connection ø40 mm...

  • Page 13: Condair Md Md-Ww-H Variant System Overview

    3.3.4 Condair MD MD-WW-H variant system overview Extract air Supply air 1 Shut-off valve, fresh water supply (by others) 2 Water treatment (optional) 3 Drain funnel with siphon (by others) 4 Fresh water supply connection G 3/4" (ET) 5 Drain connection ø40 mm...

  • Page 14: Scope Of Delivery

    Scope of delivery Condair MD is supplied with: Material Condair scope of delivery EL-H FB-H HW-H WW-H Humidifier unit Humidifier housing 2 kg/h Humidifier insert 2 kg/h Adapters ventilation duct incl. seals Screws and wall plugs for wall installation Hydraulic unit Hydraulic unit 2 kg/h with power cable and ø40/ø32 mm re-...

  • Page 15: Options

    Decarboniser als dissolved in the water for supplying water with reduced mineral content to the Condair MD. Accessories The following accessories are available for the Condair MD: Accessories Description Adapters for humidifier unit incl. seal. The adapters Adapters ventilation duct are available with different connection diameters: DN125, DN160 or DN180.

  • Page 16: Checking Delivery/Storage And Transport

    Storage and transport Storage The Condair MD components must be stored in the original packaging in a place secured against drip- ping water under the following conditions until installation: – Room temperature: 5 to 40°C –...

  • Page 17: Installation Overview

    DANGER! Risk of electrocution! The hydraulic unit of the Condair MD operates using mains voltage. If the hydraulic unit is open, users may come into contact with live parts. Touching live parts may cause severe injury or death. For this reason: Do not connect the hydraulic unit to the mains until all installation work has been completed, all installations have been checked for correct operation and the hydraulic unit has been correctly closed and locked again.

  • Page 18: Installation Overviews

    Installation overviews 5.2.1 Condair MD MD-EL-H variant installation overview . 3 0 m i n Humidity and temperature sensor a i r 6 1 0 t r a 2 8 8 Max. humidistat . 2 0 F r e m i n...

  • Page 19: Condair Md Md-Hw-H, Md-Fb-H And Md-Ww-H Variants Installation Overview

    5.2.2 Condair MD MD-HW-H, MD-FB-H and MD-WW-H variants installation overview . 3 0 m i n Humidity and temperature sensor a i r 6 1 0 t r a 2 8 8 Max. humidistat . 2 0 F r e...

  • Page 20: Requirements For The Installation Room

    Requirements for the installation room The humidifier unit and the hydraulic unit have been designed for installation in protected indoor spaces. Please note the following regarding the requirements for the installation site: – The humidifier unit must be installed together with the hydraulic unit in a utility room that has been protected against unauthorised access.

  • Page 21: Humidifier Unit Mounting

    Humidifier unit mounting 5.4.1 Instructions for positioning the humidifier unit Note: When positioning the humidifier unit in the air duct, the air flow direction need not be taken into account! Please observe and follow the instructions for positioning the humidifier unit: –...
  • Page 22 Alternative ceiling mounting with pipe clamps I n s t a l l a t i o n l e n g t h : 7 2 9 m Operating weight, humidifier unit: approx. 18 kg 1 2 5 I n s t ) / 6 9 a l l a t i o n...
  • Page 23 – The installation site must not be exposed to direct sunlight and must be sufficiently far away from other heat sources. – The humidifier unit must be installed at minimum 0.3 m and at maximum 3.0 m above the hydraulic unit in the supply air duct of the ERV.

  • Page 24: Insert The Base Panel And Attach The Adapters

    5.4.2 Insert the base panel and attach the adapters 1. Disengagec the snap fasteners and remove the humidifier housing cover. 2. Clean humidifier housing, base panel and adapters. 3. Insert the base panel into the humidifier housing. 4. Slide the adapters on both sides onto the connection nozzle as far as they will go. 5.

  • Page 25: Attach Humidifier Housing To Ceiling Or Wall

    5.4.3 Attach humidifier housing to ceiling or wall Ceiling mounting with threaded rods Make the fastening points "A" (M8 internal thread) for the threaded rods in the designated place on the ceiling. Screw threaded rods into the fastening points. 1 7 0 5 6 3 A= M8 (IT) M8 threaded rods...
  • Page 26 3. Using a spirit level, align the humidifier housing horizontally in both directions and tighten the nuts on the mounting bracket against each other. Fig. 13: Align humidifier housing and tighten screw connections 4. Clean the ventilation pipes and slide onto the adapters as far as they will go. Ventilation pipe Ventilation pipe Fig.
  • Page 27 Ceiling mounting with ø200 mm pipe clamps Make the fastening points "A" (M8 internal thread) for the threaded rods of the pipe clamps in the designated place on the ceiling. Screw threaded rods into the fastening points. 5 8 2 Fig.
  • Page 28 Wall mounting . Mark the fixing points "A" for the two wall brackets at the intended place with a spirit level and drill 60 mm into the wall with a diameter of Ø10 mm. 5 6 8 Fig. 17: Create fastening points 2.

  • Page 29: Hydraulic Unit Mounting

    Hydraulic unit mounting 5.5.1 Instructions for positioning the hydraulic unit Please observe and follow the instructions for positioning the hydraulic unit: – The installation site must not be exposed to direct sunlight and must be sufficiently far away from other heat sources. –...
  • Page 30 Operating weights, hydraulic unit: 6 . 5 – MD-EL-H variant: approx. 18 kg – MD-HW-H variant: approx. 21 kg – MD-WW-H variant: approx. 21 kg – MD-FB-H variant: approx. 19 kg Fig. 19: Installation of the hydraulic unit (dimensions in mm) 5.

  • Page 31: Create Hose Connections Between Hydraulic Unit And Humidifier Unit

    Create hose connections between hydraulic unit and humidifier unit Return Maximum hose length 3 m Supply pipe Fig. 21: Hose connections 1. Remove the yellow plastic plugs from the connections on the hydraulic unit and the humidifier unit. 2. Cut the supply and return hoses and the insulation hoses to the required length (material enclosed in scope of delivery).

  • Page 32: Installation Of The Fresh Water Supply And Water Drain

    The Condair MD must not be supplied with softened water. If a water softener has been installed in the water supply, the water supply to the Condair MD must either be connected upstream of the water softener or the Condair RO-HS reverse osmosis system must be installed downstream of the water softener.

  • Page 33: When Is A Water Treatment Device Required

    Water treatment device The Condair MD can be operated with raw water (drinking water) provided that the water hardness or pH value of the water does not exceed a certain limit value. The table below shows if a water treatment device is required.

  • Page 34: Installation Of Fresh Water Supply

    SVGW guidelines and the applicable local regulations for drinking water installations. The connection information stated must be complied with. Note: If the Condair MD is supplied via an upstream water treatment device, please observe the instruc- tions in the separate instructions for the corresponding water treatment device.

  • Page 35: Water Drain

    5.7.2 Water drain Drain connection ø40 mm ø40 mm drain pipe (by others), min. slope 15% (recommendation: route vertically downwards) The end of the drain pipe must not come into contact with the drain funnel (minimum distance 2 cm) Drain funnel with siphon (by others), connected to the on-site wastewater pipe Fig.

  • Page 36: Installing The Heating Water Or Hot Water For Md-Hw-H, Md-Fb-H And Md-Ww-H Variants

    Heating water installation for the MD-HW-H variant In the Condair MD MD-HW-H variant, the heating water from a hot water tank or similar is used to heat the circulating water in the Condair MD. For this purpose, a heating water supply pipe and a heating water return pipe must be connected to the hydraulic unit in accordance with Fig.
  • Page 37 The following requirements must be complied with: – The installation must comply with national and local regulations for heating water installations. In particular, make sure that the supply and return pipes to/from the hydraulic unit have been sufficiently thermally insulated. –...

  • Page 38: Heating Water Installation For The Md-Fb-H Variant

    In the Condair MD MD-FB-H variant, the hot water from an underfloor/wall heating or a convector circuit is used to heat the circulating water in the Condair MD. For this purpose, a heating water supply pipe and a heating water return pipe must be connected to the hydraulic unit in accordance with Fig. 26 and the applicable local regulations for heating systems.
  • Page 39 The minimum supply water temperature must be at minimum 27°C when using the additional heating element. If you have any questions, please contact your Condair partner. – The required hot water volume depends on the humidification demand and the temperature of the supply water and amounts to a maximum of 0.4 m...

  • Page 40: Hot Water Installation For The Md-Ww-H Variant

    In the Condair MD MD-WW-H variant, hot water (waste water = heated drinking water) from a hot water tank, boiler or similar is used to heat the circulating water in the Condair MD. For this purpose, a hot water supply pipe and a hot water return pipe must be connected to the hydraulic unit in accordance with Fig.
  • Page 41 The following requirements must be complied with: – The installation must comply with national and local regulations for waste water installations. In par- ticular, make sure that the hot and cold water pipes to/from the hydraulic unit have been sufficiently thermally insulated.

  • Page 42: Positioning And Installation Of The Sensors

    Positioning and installation of the sensors 5.9.1 Positioning sensors Install sensors as described below: – The humidity and temperature sensor must be installed in the extract air duct. – The max. humidistat must be installed in the supply air duct at a minimum distance of 300 mm downstream of the humidifier unit.

  • Page 43: Installation Of The Humidity And Temperature Sensor As Well As The Max. Humidistat

    5.9.1.1 Installation of the humidity and temperature sensor as well as the max. humidistat 1. Drill the insertion hole for the sensor (ø16 mm) into the ventilation duct (see Fig. 29 for positioning). 2. Secure the sensor holder to the ventilation duct with the self-tapping screws supplied. 3.

  • Page 44: Electrical Installation

    CAUTION! Electronic components on the inside of the Condair MD hydraulic unit are very sensitive to electrostatic discharge. To protect these components, measures must be taken against damage resulting from electrostatic discharge (ESD protection) when the hydraulic unit is open for installation work.

  • Page 45: Condair Md Wiring Diagram For External Connections

    Leakage sensor installed in humidifier unit. Jumper must be set to 24V. Check at installation! Remote operation and malfunction PCB (optional) Leakage sensor (option) mounted on the floor below the hydraulic unit Abb. 32: Condair MD wiring diagram for external connections Installation overview...

  • Page 46: Connection Work For External Connections

    5.10.3 Connection work for external connections 5.10.3.1 Connection of humidity and temperature sensor Safety 10V/24V+ White Brown 1 G 24V 24V+ 2 GO 0V Temp Yellow 3 AO rH Green Hum 1 4 AO T Hum 2 The signal cable of the humidity and temperaturesensor "A1" in the extract air duct is connected ac- cording to the diagram to the "24V+", "TEMP"...

  • Page 47: Connecting The Air Flow Monitor

    5.10.3.4 Connecting the air flow monitor Brown – Green Safety Yellow 10V/24V+ White The signal cable of the air flow monitor "B2" in the supply air duct is connected according to the dia- gram to the "24V+" and "Safety" terminals of the "X15" terminal block and to the "GND" terminal of the "X13"...

  • Page 48: Connection To The Remote Operation And Fault Signalling Pcb (Option)

    This relay is activated when the set service interval time has elapsed. – "Running" (terminals 7 and 8): This relay closes as soon as the Condair MD humidifies. – "Unit on" (terminals 9 and 10): This relay closes as soon as the power supply to the hydraulic unit has been switched on.

  • Page 49: Mains Connection (Mains Socket)

    5.10.3.8 Mains connection (mains socket) The mains socket (230V/1~/50Hz) must be provided in the immediate vicinity of the hydraulic unit in accordance with local regulations so that the pre-installed mains connection cable (L= 2 m) of the hy- draulic unit can be connected to it. The mains socket must be protected with a 10 A slow-blow fuse and an RCD switch (max.

  • Page 50: Initial Commissioning

    DANGER! Risk of electrocution Individual work steps during the initial commissioning of the Condair MD must be carried out with the hydraulic unit switched on and opened. If the hydraulic unit is open and switched on, users may come into contact with live parts. Touching live parts may cause severe injury or death.
  • Page 51  For Condair MD MD-HW-H, MD-FB-H and MD-WW-H device variant: Has the supply/return pipe been correctly connected and tightened? Are the connections on the inside of the housing still...
  • Page 52 CAUTION! Do not use the humidifier insert if the plastic film is damaged. In this case please contact your Condair partner. • Check the humidifier insert for damage (holes, rips, etc.). In this process, always hold the humidi- fier insert by the two black water distributors.
  • Page 53 • Insert the two hose sections (from the installation set) into the plug connectors on the black water distributors of the humidifier insert as far as they will go. Fig. 37: Insert the hose sections into the plug connectors • Position the humidifier insert on the base panel, push the humidifier insert into the humidifier housing up to the stop and press it into the end position.
  • Page 54 Note: The installation routine is only opened automatically when the hydraulic unit is switched on for the first time. If the Condair MD has already been switched on by mistake, the installation routine must be manually started under "Menu > User Settings > Installation > Inst. Procedure".
  • Page 55 Use the arrow keys to select the desired dialogue Language language and confirm your selection with the <> key. The dialogue language is automatically changed to the English selected language. Deutsch Français Italiano Confirm this message with the <> key to continue Installation the installation routine.
  • Page 56 On / Off Condair MD. Ext. Cntrl – "Ext. Cntrl": if the Condair MD is to be controlled Ext Air using a demand signal from an external controller. – "Ext Air": if a humidity sensor in the extract air duct...
  • Page 57 This screen only appears if the "Water Supply" set- Water additives ting is set to "Rev. osm.". On this screen you define whether or not chlorine is added to the supply water Contains water Chlorine? ("Chlor. yes", "Chlorine No"). This setting determines the replacement interval for the activated carbon filter.
  • Page 58 Note: If a water treatment device has been installed, select the "Condu." setting for environmentally friendly operation of Condair MD. If no water treatment device has been installed, we recommend the "Aut.Blowd" setting. This ensures optimised water management. Confirm the setting with the <> key.
  • Page 59 Water pressure: 1.5 to 5 bar, <30°C Code: MD-EL-H Engineered in Switzerland, made in Germany Fig. 40: Code field on the type plate Please contact Condair Support if the device type does not correspond to the specification on the type plate. Initial commissioning...
  • Page 60 • Set the "Sensitivity" trimmer (white arrow) to minimum sensitivity (counter-clockwise = left stop). Fig. 42: "Sensitivity" trimmer • Switch on the Condair MD hydraulic unit. • Switch the ERV to the lowest fan speed. • Slowly turn the "Sensitivity" trimmer clockwise towards maximum until the yellow LED lights up.
  • Page 61 To check the flow monitoring: Switch off the ERV completely. The yellow LED should go out. • Repeat the procedure 2-3 times to ensure that the Condair MD switches off if the fan of the ERV is not running. •...
  • Page 62 17. On the home screen, set the humidification level by tapping the screen and setting 3 drops. Condair MD 18. Generate humidity demand: In "Menu > User Settings > Humidity Level", set the "High" parameter to 80%. Humidity Level 40%rH...
  • Page 63 20. Manually bleeding the heating water or hot water circuit with MD-HW-H, MD-FB-H and MD-WW-H variants. WARNING! Risk of scalding During manual bleeding, a small amount of hot water can escape and so there is a risk of scalding. It is therefore essential to follow the instructions. For this reason: Always follow the information described in the corresponding steps.
  • Page 64 Manually bleeding the heating water or hot water circuit with MD-HW-H, and MD-WW-H variants: Note: The ERV need not be switched on to ventilate the hot water or hot water circuit. • Switch on the hydraulic unit and set the "Operating Mode" to "Standby" in "Menu > User Set- tings >...
  • Page 65 • Undo the screw connection of the armoured hose on the return pipe of the heat exchanger until air audibly escapes (max. 1/2 turn). The screw connection must not be completely undone as otherwise uncontrolled heating or hot water may escape. Heat exchanger Warning: Risk of scalding...
  • Page 66 • After bleeding, set the circulation pump rotary switch to level 3. • If the time for venting has elapsed or the "Bleeding 2/3" message has been confirmed with the <> key after having bled the system, the message below appears. Confirm the message with the <>...
  • Page 67 WARNING! Guaranteeing of hygienic operation After initial commissioning, Condair MD must no longer be switched off and must be operated either in "Humidifier mode" (humidity demand) or in "standby mode" (no humidity demand). This is the only way to ensure that the water system is periodically rinsed and that no contami- nation of the system is caused by standing water.

  • Page 68: Product Specifications

    Product specifications Technical data of the hydraulic unit Condair MD MD-EL-H variant MD-HW-H vari- MD-WW-H vari- MD-FB-H variant Dimensions/weight Dimensions of the hydraulic unit (HxWxD) 495 x 425 x 300 mm Weight of the hydraulic unit Approx. 18 kg Approx. 21 kg Approx.

  • Page 69: Technical Data Of Humidifier Unit

    Technical data of humidifier unit Dimensions/weight Installation length in the ventilation unit/air duct – With DN125 adapters 729 mm – With DN160 adapters 695 mm – With DN180 adapters 675 mm – Without adapters (DN200) 549 mm Humidifier unit length 610 mm Humidifier unit width 288 mm...

  • Page 70: Ce Declaration Of Conformity

    CE Declaration of Conformity Konformitätserklärung Declaration of conformity Déclaration de conformité Wir, Nous, Condair Group AG Condair Group AG Condair Group AG CH-8808 Pfäffikon SZ CH-8808 Pfäffikon SZ CH-8808 Pfäffikon SZ erklären in alleiniger Verantwortung, declare under our sole responsibility, that déclarons sous notre seule...

  • Page 71: Appendix

    Appendix Dimensional drawing of humidifier unit 17.5 Fig. 45: Dimensional drawing of humidifier unit (dimensions in mm) Dimensional drawings of adapters Abb. 46: Dimensional drawing of Abb. 47: Dimensional drawing of DN125 adapter (dimensions in mm) DN160 adapter (dimensions in mm) Abb.

  • Page 72: Dimensional Drawing Of Hydraulic Unit

    Dimensional drawing of hydraulic unit G 1/2" (IG) 306.5 G 3/4" ø31 ø32 ø40 255.5 205.5 35.5 JG10 Fig. 49: Dimensional drawing of hydraulic unit (dimensions in mm) Appendix...
  • Page 73 Notes...
  • Page 74 Notes...
  • Page 76 CONSULTING, SALES AND SERVICE: CH94/0002.00 Condair Group AG 8808 Pfäffikon SZ, Switzerland www.condairgroup.com...
