OPERATING INSTRUCTIONS
Condair HumiLife – the efficient ERV solution
Condair MD
MD-EL-H
MD-FB-H
MD-WW-H
MD-HW-H
Humidification and Evaporative Cooling

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MD Series and is the answer not in the manual?

Questions and answers

Related Manuals for Condair MD Series

Summary of Contents for Condair MD Series

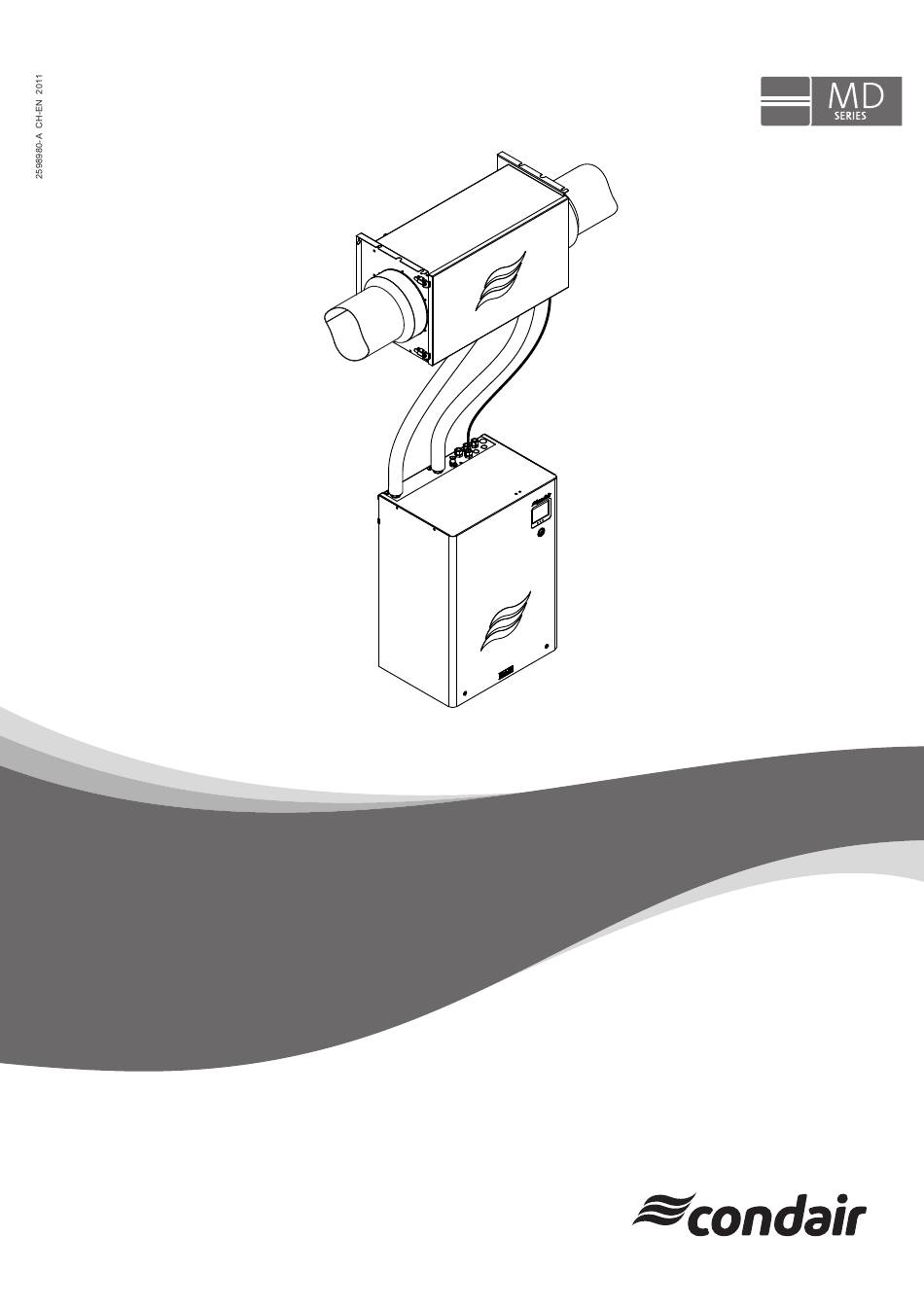

  • Page 1 OPERATING INSTRUCTIONS Condair HumiLife – the efficient ERV solution Condair MD MD-EL-H MD-FB-H MD-WW-H MD-HW-H Humidification and Evaporative Cooling...
  • Page 2 Liability Condair Group AG is not liable for any damages incurred as a result of poorly executed installation, improper operation or the use of components or equipment not approved by Condair Group AG.

  • Page 3: Table Of Contents

    Product overview Model overview Product labelling Humidifier unit design Hydraulic unit design 3.4.1 Hydraulic unit Condair MD version MD-EL-H 3.4.2 Hydraulic unit Condair MD version MD-HW-H 3.4.3 Hydraulic unit Condair MD version MD-FB-H 3.4.4 Hydraulic unit Condair MD version MD-WW-H...
  • Page 4 Specifying display settings Service Important service information Service intervals Service list Service work 6.4.1 Descaling the internal Condair MD water system 6.4.2 Disinfecting the internal Condair MD water system 6.4.3 Periodic visual check of the humidifier insert Troubleshooting Safety information regarding troubleshooting...

  • Page 5: Introduction

    The Condair MD has been built using state-of-the-art technology and in accordance with the latest safety regulations. However, improper use of the Condair MD may put users and/or third parties at risk and/or may also cause damage to material assets.
  • Page 6 Please keep these operating instructions in a safe place where they can be accessed at all times. If the Condair MD changes hands, these operating instructions must be handed over to the new operator. Should you lose the operating instructions, please contact your Condair representative.

  • Page 7: For Your Safety

    Furthermore, for safety and warranty reasons, interventions may only be undertaken by specialist per- sonnel authorised by Condair. It is assumed that all persons entrusted to work on the Condair MD are familiar with and abide by the regulations on occupational health and safety and accident prevention.
  • Page 8 4.5 Warning! System contamination hazard If the Condair MD is switched off, there is a risk of the fresh water supply line and the internal water system becoming contaminated, as the water system is then no longer being flushed regularly. For this reason: After commissioning of the Condair MD must no longer be switched off and must either be operated in "Humidify"...

  • Page 9: Product Overview

    Product overview Model overview The Condair MD is available in four different variants with a humidification output of 2 kg/h for installation in horizontal ventilation ducts (H). – EL: heating up the humidification water with integrated, electrical heating. – HW: heating up the humidification water using the integrated heat exchanger connected to a hot water circuit of a heating system.

  • Page 10: Humidifier Unit Design

    Humidifier unit design Leakage sensor cable connection socket Air filter (optional accessory) Humidifier unit return connection Base panel Humidifier unit supply connection Humidifier insert Humidifier housing Coupling pipes Leakage sensor Humidifier unit front cover Fig. 1: Humidifier unit design Product overview...

  • Page 11: Hydraulic Unit Design

    Hydraulic unit design 3.4.1 Hydraulic unit Condair MD version MD-EL-H Fresh water supply connection Level sensor Drain connection Heating elements Inlet valve Conductivity sensor Humidifier circuit circulation pump Drain valve Water tank Control PCB Overtemperature switch Touch screen control Flow rate and temperature sensor...

  • Page 12: Hydraulic Unit Condair Md Version Md-Hw-H

    3.4.2 Hydraulic unit Condair MD version MD-HW-H Fresh water supply connection Conductivity sensor Drain connection Drain valve Inlet valve Control PCB Humidifier circuit circulation pump Touch screen control Water tank LED operating status display Flow rate and temperature sensor Device switch...

  • Page 13: Hydraulic Unit Condair Md Version Md-Fb-H

    3.4.3 Hydraulic unit Condair MD version MD-FB-H Fresh water supply connection Heating element (optional) Drain connection Conductivity sensor Inlet valve Drain valve Humidifier circuit circulation pump Control PCB Water tank Touch screen control Overtemperature switch (optional) LED operating status display...

  • Page 14: Hydraulic Unit Condair Md Version Md-Ww-H

    3.4.4 Hydraulic unit Condair MD version MD-WW-H Fresh water supply connection Drain valve Drain connection Control PCB Inlet valve Temperature control valve transformer Humidifier circuit circulation pump Touch screen control Water tank LED operating status display Flow rate and temperature sensor...

  • Page 15: System Overviews

    Mains socket (230V/1~/50Hz) Decarboniser 12 Humidifier unit 13 Maximum humidistat 14 Air flow monitor 15 Humidity and temperature sensor 16 Energy recovery ventilation (ERV) 50 % skaliert! Fig. 6: System overview Condair MD version MD-EL-H with exhaust air humidity control Product overview...

  • Page 16: System Overview Condair Md Version Md-Hw-H

    15 Humidity and temperature sensor 16 Energy recovery ventilation (ERV) 50 % skaliert! 17 Heating water supply connection 18 Heating water return connection 19 On-site heating water installation Fig. 7: System overview Condair MD version MD-HW-H with exhaust air humidity control Product overview...

  • Page 17: System Overview Condair Md Version Md-Fb-H

    15 Humidity and temperature sensor 16 Energy recovery ventilation (ERV) 50 % skaliert! 17 Heating water supply connection 18 Heating water return connection 19 On-site heating water installation Fig. 8: System overview Condair MD version MD-FB-H with exhaust air humidity control Product overview...

  • Page 18: System Overview Condair Md Version Md-Ww-H

    15 Humidity and temperature sensor 16 Energy recovery ventilation (ERV) 50 % skaliert! 17 Hot water supply connection 18 Hot water return connection 19 On-site hot water installation Fig. 9: System overview Condair MD version MD-WW-H with exhaust air humidity control Product overview...

  • Page 19: Functional Description

    3.10 Functional description The Condair MD is based on the principle of the steam pressure difference between the dry air in the duct and the water in the humidifier. In this process pure steam diffuses through a semi-permeable diaphragm of the humidifier unit and humidifies the duct air.
  • Page 20 (see chapter 5.1.2 for information on how to activate standby mode). Note: if the Condair MD has to be switched off for a prolonged period of time, please note the informa- tion in chapter 4.5.

  • Page 21: Operation

    Operation The Condair MD must only be operated by persons that are familiar with operating the Condair MD and who have read these operating instructions. Initial commissioning Initial commissioning must always be carried out by a service engineer deployed by your Condair repre- sentative or a trained customer service engineer who has been qualified for this work.

  • Page 22: Display And Operating Elements

    DANGER! Risk of electrocution! A voltage continues to apply within the Condair MD hydraulic unit after having switched off the system at the device switch. For this reason, it is paramount to disconnect the mains supply to the hy- draulic unit by removing the mains plug prior to opening the hydraulic unit.

  • Page 23: Display And Operating Elements On The Maximum Humidistat

    Should it become necessary to change the setpoint following instructions by the Condair representative, you can change the setpoint using the arrow buttons on the right-hand edge of the display.

  • Page 24: Commissioning After Having Stopped Operation

    Maintaining hygiene If the Condair MD has been switched off for over 48 hours or if you are not sure about how long the Condair MD was switched off, the fresh water supply line must be thoroughly flushed using the drain valve for hygiene reasons prior to recommissioning.

  • Page 25: Notes On Operation

    If you have established irregularities (e.g. leaks, displayed malfunction) or damaged components, shut down the Condair MD as described in chapter 4.5. If a malfunction is displayed, note the malfunction code prior to switching off the hydraulic unit. For more information, subsequently contact your Condair representative.

  • Page 26: Operating Modes

    If the ERV must be shut down for more than 48 hours for service and repair work, the Condair MD must be set to "Standby" operating mode (Menu > User Settings > Operation > Operating Mode > "Standby") until restarting the ERV.

  • Page 27: 4.4.2.2 "Standby" Operating Mode

    If the Condair MD is set to "Standby" operating mode, the drain valve at the bottom of the water tank in the hydraulic unit opens after 3 hours and the internal water system of the Condair MD is drained.

  • Page 28: Decommissioning

    If it is intended to switch off the Condair MD for a prolonged period of time it is necessary to block the fresh water supply line using the drain valve in the fresh water supply line (see system overviews in chapter 3.5).

  • Page 29: Working With The Control Software

    Working with the control software Home screen After having switched on the Condair MD is in the operating mode that had been selected last ("Hu- midify" or "Standby") and the Home screen appears. The appearance of the Home screen depends on the current operating mode and the system control configuration.

  • Page 30: Display And Operating Elements On The Home Screen

    5.1.1 Display and operating elements on the Home screen Operating mode display (see chapter 5.1.3) Condair MD Open menu (<Menu> button) Malfunction icon (see chapter 5.1.3) Note: exclusively appears if there is a malfunction. The drops in the top right light up red.

  • Page 31: Operating Mode Displays

    5.1.3 Operating mode displays Display elements Description The system is operating without any issues. Three green drops are shown at the top right in the Home screen and the LED below the display lights up green. Service due. The Home screen shows the tool icon and three yellow drops and the LED below the display lights up yellow.

  • Page 32: Viewing Device And System Information

    Viewing device and system information 5.3.1 Opening the Information menu Press the <Menu> button on the Home screen. Then select the "Information" menu item and confirm the selection using the <> button. The Information menu appears. Condair MD Menu Information Information System Info...

  • Page 33: Device Information

    RO F. Service in E. Service in: remaining operating time in hours until 2000h – RO M. Service the Condair service engineer must carry out the major 1518 h RO M. Service in service. System Type RO F. Service: Specified interval time in hours for ex- –...

  • Page 34: Device Status

    5.3.3 Device status – Control State: currently selected operating mode System Status ("Humidify" or "Standby"). – Setpoint Hum.: specified humidity setpoint in %rH. Control State Humidify – Actual Humidity: currently measure humidity in %°rH Setpoint Hum. 45.0%rH in the air duct. Actual Humidity 43.0%rH Demand: current output request to the system in %.

  • Page 35: Water Supply

    5.3.4 Water Supply – Water Supply: displays whether the Condair MD is Water Supply supplied with untreated tap water ("Tap water"), with decarbonised water ("WT option") or with reverse os- Water Supply WT option mosis water ("Rev. osm."). WT Cartridge...

  • Page 36: Specifying The Humidifier Level Or Humidity Setpoint

    5.4.2 Specifying the humidifier level or humidity setpoint In the user menu select the "Humidifier Level" menu item. – Low: with this setting you set the humidity setpoint in Humidity Level %rH for the "Low" humidifier level. Ex works setting: 40 %rH 40%rH Selection: 20 to 80% rH 45%rH –...

  • Page 37: Specifying The Control Type And Operating Mode

    5.4.3 Specifying the control type and operating mode In the user menu select the "Operation" menu item. – Control Mode: specify the control type of the Condair Operation MD with this setting. Select: – "On/Off": if an on/off hygrostat has been connected...

  • Page 38: Error" Sub-Menu

    W.Treatment.Reset – Descaling: use this function to start the descaling Descaling procedure of the Condair MD. Please observe the Disinfection information in chapter 6.4.1. Reset Pump block – Disinfection: use this function to start the disinfection Reset RO Filter procedure of the Condair MD.

  • Page 39: Installation" Sub-Menu

    In the user menu select the " Installation" menu item. – Install.Seq.: use this function to activate the installation Installation routine for the Condair MD basic configuration ("On"). The installation routine automatically starts after acti- Install.Seq. vation. For this purpose, also note information in Step Bleeding 12 in Section 6.2 of the Installation and commissioning...

  • Page 40: Specifying Display Settings

    Brightness: this setting is used to set the display Calibration brightness. Ex works setting: Selection: 10 to 100% – Calibration: use this function to start the display cali- bration. Run this function if instructed by Condair only. Working with the control software...

  • Page 41: Service

    Condair MD operator. Major service work and replacing faulty system components must exclusively be carried out by Condair service engineers or a specialist authorised and trained by Condair. General information The information and data about serviceactivities must always be taken into account and complied with.

  • Page 42: Service Intervals

    Service intervals The Condair MD must be serviced at regular intervals to maintain hygienic operation and operational safety. For this purpose, the Condair MD control software features six servicecounters for the following: – Replacing of the cartridge of the optional decarboniser –...

  • Page 43: Service List

    Carried out by Condair service engineer W29 Large maintenance The "Major service" must exclusively be carried out by a Condair service engineer or a specialist who has been authorised and trained by Condair. For more information, please contact your Condair representative.

  • Page 44: Service Work

    Service work Note: Information on replacing the decarboniser cartridge and replacing the filters and the RO membrane of the Condair RO-HS reverse osmosis system are described in the corresponding manuals for these products. 6.4.1 Descaling the internal Condair MD water system Descaling the internal Condair MD water system and disinfection (see chapter 6.4.2) serve to maintain...
  • Page 45 4. Preparing the descaling agent: a. Fill half of the transparent bottle with tepid drinking water (at max. 35°C). b. Use the funnel to carefully fill the entire content of the container provided by Condair featuring the descaling granules into the enclosed bottle.
  • Page 46 d. Remove the normal bottle top and screw on the special bottle top featuring the quick-release lock (see Fig. 14). Make sure that the bottle top is secure and has not been tilted on the bottle. Also make sure that the silver knurled screw on the side of the special bottle top has been tightened. Fig.
  • Page 47 6. Start the descaling process by confirming the "Descale 4/7" message with the <> button. The Condair MD will now automatically carry out the descaling process. It takes around 2.5 hours. The following message is displayed during the descaling process "Descale 5/7".
  • Page 48 The system has been successfully descaled. The previous operation state has been resumed. Important: if the descaling process is prematurely cancelled as a result of a malfunction and a cor- responding error message is output, contact your Condair representative. Service...

  • Page 49: Disinfecting The Internal Condair Md Water System

    6.4.2 Disinfecting the internal Condair MD water system Disinfecting the internal Condair MD water system and descaling (see chapter 6.4.1) serve to maintain hygienic system operation. You require a special disinfection agent for disinfection, available from your Condair representative. Do not use any other disinfection agents as these may damage the humidifier insert diaphragm.
  • Page 50 4. Filling the disinfection agent: a. Remove the top from the bottle featuring disinfection agent (supplied by Condair). Use the funnel to carefully fill the disinfection agent into the enclosed, transparent bottle. Screw on the special bottle top featuring the quick-release lock (see Fig. 16). Make sure that the bottle top is secure and has not been tilted on the bottle.
  • Page 51 b. Remove the white lock collar from the service adapter of the hydraulic unit (see Fig. 17). Note: the white lock collar is reattached after having filled the disinfection agent and make sure not to lose it. c. Connect the bottle with the quick-release lock with the service adapter. In this process, make sure that the bottle is positioned vertically and has not been tilted or has been connected to the coupling at an angle.
  • Page 52 5. Start the disinfection process by confirming the "Disinfection 4/7" message with the <> button. The Condair MD will now automatically carry out the disinfection process. It takes around 1.5 hours. The following message is displayed during the disinfection process "Disinfection 5/7".

  • Page 53: Periodic Visual Check Of The Humidifier Insert

    Proceed as follows to check the humidifier insert: 1. Shut down the Condair MD, as described in chapter 4.5. 2. Wait until the internal water system has drained (approximately 10 minutes). 3. Shut down the ERV (see ERV instructions).
  • Page 54 6. Hold the humidifier insert at the two black water distributors and carefully pull it from the humidifier housing. Subsequently, remove the base panel from the humidifier housing. Fig. 19: Removing the humidifier insert and base panel • Note: If the humidifier unit is equipped with the optional air filter, remove the air filter (see separate instructions for the air filter).
  • Page 55 Do not use cleaning agents and do not use a cloth, brush or similar tools to clean the diaphragm. Fig. 21: Washing off dust Please contact the Condair partner if it is not possible to remove the traces of dust or con- tamination. •...
  • Page 56 12. Reattach the housing cover of the humidifier insert and lock with the snap lock mechanisms. Fig. 23: Closing the humidifier unit 13. If you are not forced to carry out any further service activities, immediately recommission the Condair MD as described in chapter 4.3.

  • Page 57: Troubleshooting

    Shut down the Condair MD and disconnect it from the mains prior to starting any troubleshooting work (see chapter 4.5). Make sure that the power supply to the Condair MD has been interrupted and that the shut-off valve in the water line has been closed.

  • Page 58: Malfunction Messages

    Tap the corresponding error on the error list to view further information about the malfunction. Note: The Condair MD does not feature a real-time clock so that errors are marked with a time stamp starting with the last commissioning process (in hours). As a rule, the warning/error with the highest number of hours is the last error that occurred.

  • Page 59: Malfunction List

    The descaling service counter has Contact the Condair representative. reached its maximum value. Descale due Note: the Condair MD will only run for a short period of time. Carry out descaling as soon as possible! The disinfection service counter has Contact the Condair representative.
  • Page 60 ERV failure, maximum 3. Check the maximum humidistat, if humidistat faulty). necessary, replace it. 4. Switch the Condair MD off and on again, if the warning reappears, contact the Condair representative. 1. Check the fresh water supply tem- perature (at max.
  • Page 61 The water treatment cartridge is worn out. Contact the Condair representative. Note: after warning "W55" appears the Condair MD will only continue to run for a short period of time. If the cartridge is not replaced during this time and the...
  • Page 62 Write error in the EEPROM of the driver again. ––– E118 ** Program Error PCB. 2. If the error reappears, contact the Condair representative. These error messages must be reset by switching the Condair MD off and on again (see chapter 7.5) Troubleshooting...

  • Page 63: Resetting The Error Display

    Proceed as follows to reset the error display (red LED lights up, Home screen shows error status): 1. Switch off the Condair MD using the device switch at the front of the device. 2. Wait 5 seconds and once again switch on the Condair MD using the device switch.

  • Page 64: Decommissioning/Disposal

    Decommissioning/Disposal Decommissioning If it is necessary to replace the Condair MD or if the Condair MD is no longer required, proceed as follows: 1. Decommission the Condair MD as described in chapter 4.5. 2. Have the Condair MD (and potentially required, other system components) removed by a specialist.

  • Page 65: Product Specifications

    Product specifications Technical data of the hydraulic unit Condair MD MD-EL-H variant MD-HW-H vari- MD-WW-H vari- MD-FB-H variant Dimensions/weight Dimensions of the hydraulic unit (HxWxD) 495 x 425 x 300 mm Weight of the hydraulic unit Approx. 18 kg Approx. 21 kg Approx.

  • Page 66: Technical Data Of Humidifier Unit

    Technical data of humidifier unit Dimensions/weight Installation length in the ventilation unit/air duct – with transition pieces DN125 729 mm – with transition pieces DN160 695 mm – with transition pieces DN180 675 mm – without transition pieces (DN200) 549 mm Humidifier unit length 610 mm Humidifier unit width 288 mm...

  • Page 67: Ce Declaration Of Conformity

    CE Declaration of Conformity Konformitätserklärung Declaration of conformity Déclaration de conformité Wir, Nous, Condair Group AG Condair Group AG Condair Group AG CH-8808 Pfäffikon SZ CH-8808 Pfäffikon SZ CH-8808 Pfäffikon SZ erklären in alleiniger Verantwortung, declare under our sole responsibility, that déclarons sous notre seule...

  • Page 68: Appendix

    Appendix 10.1 Spare parts and consumables Order number Item 2590908 Service kit (including bottle, descaling agent, disinfection agent) 2591305 2 kg humidifier insert 2590542 XL water treatment cartridge 2590543 XXL water treatment cartridge 2590544 HumiLife disinfection agent 2590545 HumiLife descaling agent Appendix...
  • Page 69 Notes...
  • Page 70 Notes...
