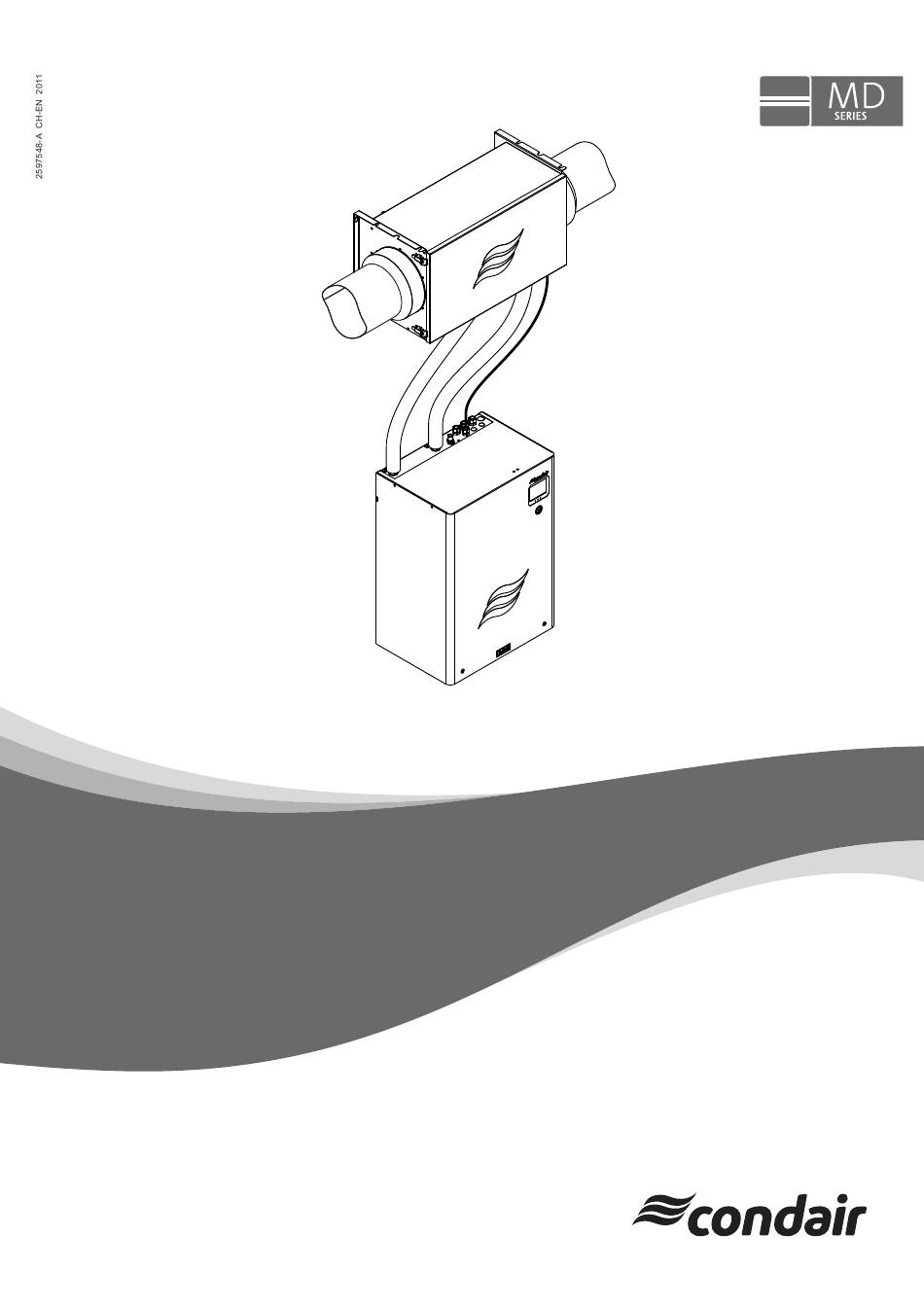

- Page 1 SHORT FORM INSTALLATION MANUAL Condair HumiLife – The efficient HRV-solution Condair MD MD-FB-H MD-HW-H MD-WW-H Humidification and Evaporative Cooling...
-
Page 2: Installation Overview
FI 30 mA) Max. hose length 3 m Water treatment (optional) Minimum distance for filling the service fluids Reverse osmosis system Condair RO-HS Supply connector G 1/2" (internal thread) Return connector G 1/2" (internal thread) Recommendation: Use appro- priate armored hoses to connect the supply and return lines to the hydraulic unit. -
Page 3: Scope Of Delivery
Scope of delivery L= 3 m Humidifier insert Keep the packaging closed L= 6 m until commissioning and store in a dry place! 1x Reverse osmosis Condair RO-HS (optional) 1x XL or XXL (optional) Assembly of the humidifier housing... - Page 4 Installation of the humidifier housing (variants) Ceiling mounting Wall mounting Operating weight: 18 kg Installation of the hydraulic unit...
-
Page 5: Sensor Installation
Sensor installation Plug in the leak sensor cable (11). Install sensors and connect according to the wiring diagram (12). . 3 0 m i n Humidity/Temperature sensor "A1" . 2 0 m i n Maximum humidistat "B1" . 3 5 m i n Air flow monitor "B2"... - Page 6 Hum 1 4 AO T yellow Hum 2 Driver board Condair MD Hygro Humidifier unit Leakage sensor humidifier unit Installation of connecting hoses Cut the supply and return hoses as well as the insulating tubes to the required length, then push the insulating tubes onto the supply and return hoses (13).
- Page 7 CAUTION! The Condair MD must not be fed with softened water. If a water softener is installed in the water supply, the water supply to the Condair MD must either be connected before the water softener or the reverse osmosis Condair RO-HS (J) must be installed after the water softener.
- Page 8 All water installations must be carried out in accordance with national and local regulations for the execution of water installations and by a licensed plumber. Condair Group AG assumes no liability for damage caused by faulty installations or the use of components not approved by Condair Group AG.
