Running Demo (SDK) Program

If you are not familiar with LX9 and/or Xilix tools, please visit
http://www.xilinx.com/products/boards-and-kits/AES-S6MB-LX9.htm
If you are not familiar with Nexys™3 and/or Xilix tools, please visit
http://www.digilentinc.com/Products/Detail.cfm?NavPath=2,400,897&Prod=NEXY
S3 for details.
If you are not familiar with ZedBoard and/or Xilix tools, please visit
http://www.em.avnet.com/en-us/design/drc/Pages/Zedboard.aspx

Avnet LX9 MicroBoard Setup

Extract the project from the archive file (ADP5589_<board_name>.zip) to the location you desire.

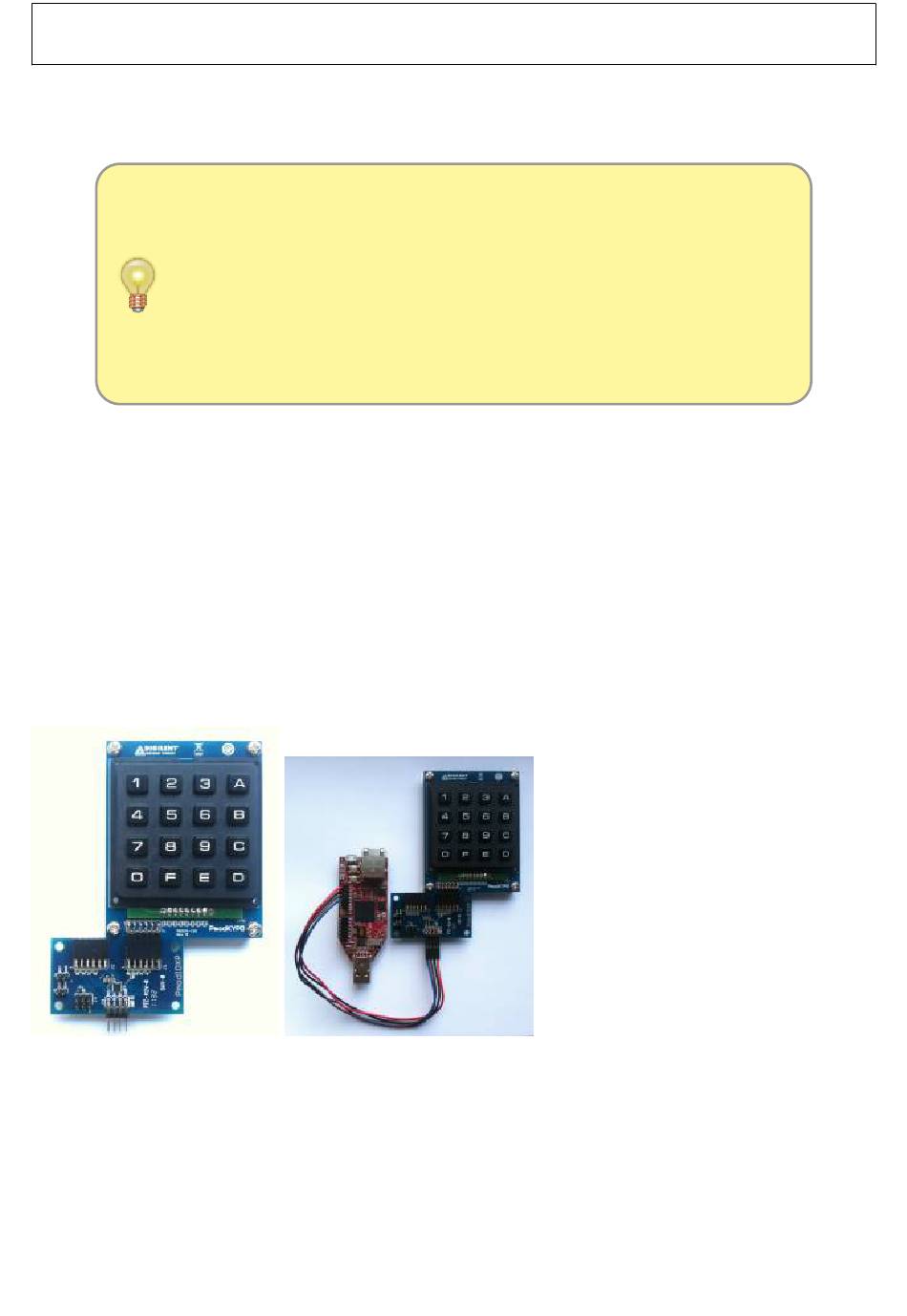

To begin, connect the PmodKYPD to J1 connector of PmodIOXP. After that, connect the PmodIOXP
board to J4 connector of LX9 board, pins 3 to 6 (see image below). You must use the extension cable
provided, otherwise the I2C Interface will not work. . Connect the USB cable from the PC to the
USB-UART female connector of the board for the UART terminal. The board will be programmed
through its USB male connector.
Digilent Nexys™3 Spartan-6 FPGA Board
Extract the project from the archive file (ADP5589_<board_name>.zip) to the location you desire.
To begin, connect the PmodKYPD to J1 connector of PmodIOXP. After that, connect the PmodIOXP
board to JA connector of Nexys™3 board, pins JA3 to JA6 (see image below). You must use the
Rev 30 Sep 2013 14:51 | Page 2
