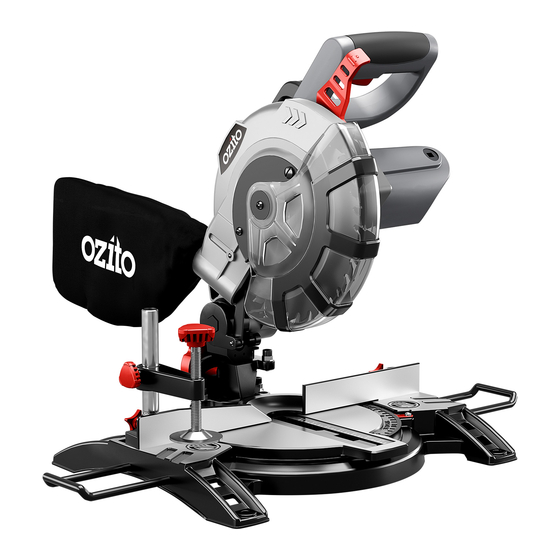

- Page 1 CMS-1621U Original operating instructions Crosscut and miter saw Art.-Nr.: 43.002.99 I.-Nr.: 11039 Anl_CMS_1621_U_SPK7.indb 1 Anl_CMS_1621_U_SPK7.indb 1 04.11.2019 06:38:32 04.11.2019 06:38:32...
- Page 2 11 12 - 2 - Anl_CMS_1621_U_SPK7.indb 2 Anl_CMS_1621_U_SPK7.indb 2 04.11.2019 06:38:57 04.11.2019 06:38:57...
- Page 3 - 3 - Anl_CMS_1621_U_SPK7.indb 3 Anl_CMS_1621_U_SPK7.indb 3 04.11.2019 06:39:00 04.11.2019 06:39:00...
- Page 4 - 4 - Anl_CMS_1621_U_SPK7.indb 4 Anl_CMS_1621_U_SPK7.indb 4 04.11.2019 06:39:07 04.11.2019 06:39:07...
-
Page 5: Table Of Contents
Table of contents 1. Safety regulations 2. Layout and items supplied 3. Proper use 4. Technical data 5. Before starting the equipment 6. Operation 7. Replacing the power cable 8. Cleaning, maintenance and ordering of spare parts 9. Disposal and recycling 10. - Page 6 Danger! - Read the operating instructions to reduce the risk of injury Caution! Wear ear-muff s. The impact of noise can cause damage to hearing. Caution! Wear a breathing mask. Dust which is injurious to health can be generated when working on wood and other materials.
-
Page 7: Safety Regulations
Danger! 2.2 Items supplied When using the equipment, a few safety pre- Please check that the article is complete as cautions must be observed to avoid injuries and specifi ed in the scope of delivery. If parts are damage. Please read the complete operating missing, please contact our service center or the instructions and safety regulations with due care. -
Page 8: Technical Data
businesses or for equivalent purposes. (double mitre cuts) ......80 x 32 mm The equipment is to be operated only with suita- Minimum workpiece size: Only ever cut workpie- ble saw blades. It is prohibited to use any type of ces which are big enough to clamp securely with cutting-off... -
Page 9: Before Starting The Equipment
Caution! the knurled screw (10). • Residual risks If different angle settings are required, the Even if you use this electric power tool in turntable (8) may be secured in position using accordance with instructions, certain resi- only the knurled screw (10). •... -
Page 10: Operation
• left until it coincides at 45°. Undo the tightening screw (12) and use the • Place the 45° stop angle (b) between the saw handle (2) to tilt the machine head (4) to the blade (5) and the rotary table (8). left until the pointer (11) coincides with the •... -
Page 11: Replacing The Power Cable
out downwards. 8.2 Carbon brushes • Carefully clean the flange screw (31), outer In case of excessive sparking, have the carbon flange (32) and inner flange. brushes checked only by a qualifi ed electrician. • Fit and fasten the new saw blade (5) in rever- Important! The carbon brushes should not be re- se order. - Page 12 For EU countries only Never place any electric power tools in your household refuse. To comply with European Directive 2012/19/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g.
- Page 13 Service information We have competent service partners in all countries named on the guarantee certifi cate whose contact details can also be found on the guarantee certifi cate. These partners will help you with all service re- quests such as repairs, spare and wearing part orders or the purchase of consumables. Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.
- Page 14 Warranty certifi cate Dear Customer, All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card.
- Page 15 SK vydáva nasledujúce prehlásenie o zhode podľa smernice standarder for artikkel EÚ a noriem pre výrobok Lýsir uppfyllingu EU-reglna og annarra staðla vöru a cikkekhez az EU-irányvonal és Normák szerint a következő konformitást jelenti ki Mitre Saw CMS-1621U (Ozito) 2014/29/EU 2006/42/EC Annex IV 2005/32/EC_2009/125/EC Notifi ed Body: 2014/35/EU Reg.
- Page 16 EH 10/2019 (01) Anl_CMS_1621_U_SPK7.indb 16 Anl_CMS_1621_U_SPK7.indb 16 04.11.2019 06:39:12 04.11.2019 06:39:12...
