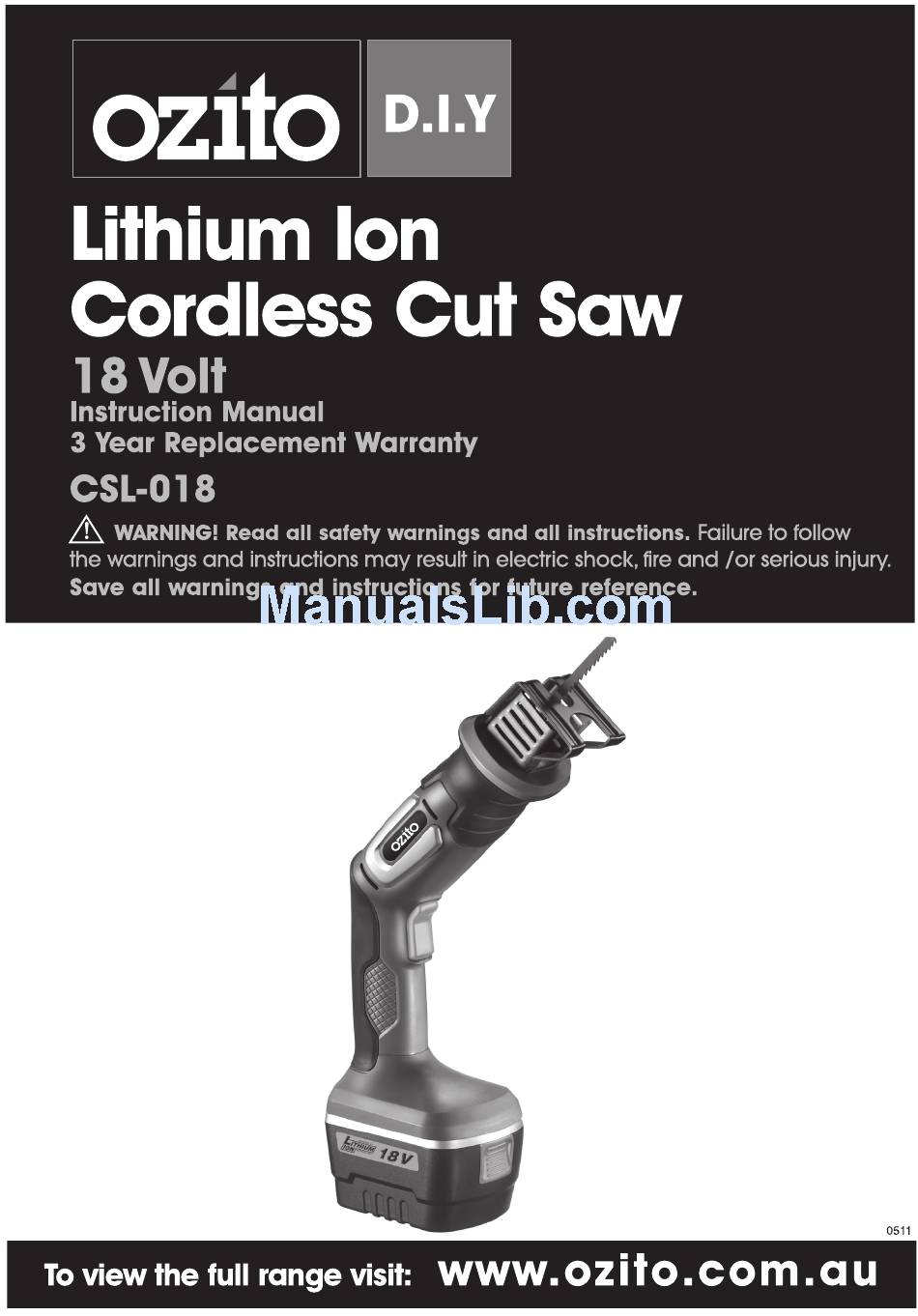

Lithium ion cordless cut saw 18 volt

Advertisement

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CSL-018 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ozito CSL-018

  • Page 2: Specifications

    SPECIFICATIONS – MODEL NO. CSL-018 Battery power: Charge time: 3 – 5 hours No load speed: 2000/min Stroke length: 13mm Blade fitment: Universal (U-shaped) only Maximum cutting capacity: Wood 20mm Aluminium sheet 2mm Non alloy steel 1mm Battery: 18V - 1.3Ah Lithium Ion Weight with 1 battery: 1.1kg...
  • Page 3: Table Of Contents

    TABLE OF CONTENTS SPECIFICATIONS ……………………………………….. Page 1 INTRODUCTION………………………………………… Page 3 ELECTRICAL SAFETY…………….……………………… Page 3 GENERAL POWER TOOL SAFETY WARNINGS……… Page 4 CUT SAW SAFETY WARNINGS!………………………. Page 7 LITHIUM ION BATTERY AND CHARGER SAFETY FEATURES…………….………………………… Page 8 CHARGING YOUR LITHIUM ION BATTERY.…………. Page 9 ASSEMBLY.……………………………………………….
  • Page 4: Introduction

    Saw. We aim to provide quality tools at an affordable price. We hope you will enjoy using this tool for many years. Your Lithium Ion Cordless Cut saw CSL-018 is an extremely versatile tool designed to cut many different types of light material in many varying situations.
  • Page 5: General Power Tool Safety Warnings

    GENERAL POWER TOOL SAFETY WARNINGS WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool" in all of the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
  • Page 6 GENERAL POWER TOOL SAFETY WARNINGS d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
  • Page 7 BATTERY AND CHARGER SAFETY WARNINGS THIS MANUAL CONTAINS IMPORTANT SAFETY AND OPERATING INSTRUCTIONS FOR YOUR BATTERY CHARGER. • Before using the charger read all instructions and cautionary markings on the charger, battery pack and the product using the battery pack. Danger! If the battery pack case is cracked or damaged, do not insert it into charger.
  • Page 8: Cut Saw Safety Warnings

    BATTERY AND CHARGER SAFETY WARNINGS • The longest life and best performance can be obtained if the battery pack is charged when the air temperature is between 18 - 24ºC. Do not charge the battery pack in an air temperature below 10ºC or above 40ºC. This is important and will prevent damage to the battery pack.
  • Page 9: Lithium Ion Battery And Charger Safety Features

    CUT SAW SAFETY WARNINGS! (cont.) • Watch out for cut-off portions of the work piece being cut. They may fall and cause injury to you or someone near you. • When cutting metals, be cautious of hot flying debris. • Do not touch the blade or the work piece immediately after operation;...
  • Page 10: Charging Your Lithium Ion Battery

    CHARGING YOUR LITHIUM ION BATTERY The batteries (6) have been shipped in a low charge condition, and requires charging prior to use. • Connect the charging jack (11) to the charging cradle (9) (see Fig. 1). • Plug the charging adaptor (10) into a mains power Charger outlet.
  • Page 11 CHARGING YOUR LITHIUM ION BATTERY (cont.) Subsequent charges • After normal usage, approximately 3-5 hours of charging time is required to fully recharge the battery (6). • If the battery (6) is completely discharged, 5 hours or longer of charging time will be required to fully recharge it.
  • Page 12: Assembly

    ASSEMBLY Installing the battery • Holding the cut saw upright and picking up the battery (6) in your opposite hand. Insert the battery (6) until it clicks into place (see Fig. 3). • Do not use excessive force when inserting the battery (6).
  • Page 13: Cut Saw Operation

    CUT SAW OPERATION Selecting the right saw blade Caution! The CSL-018 Cut Saw is designed to only accept Universal (u-shaped) style jigsaw blade. WARNING! Remove the battery (6) from the cut saw before inserting or removing a blade or when making any adjustments to your saw.
  • Page 14 CUT SAW OPERATION (cont.) Fully insert the new blade into tool-less blade clamp (1) and release the tool-free blade clamp lever (12). (See Fig. 5). Take care that the hole in the end of the blade is inserted into the tool-less blade clamp (1). Generally the teeth of the blade should face towards the bottom of the cut saw, but the blade can be reversed in the tool-less blade clamp (1) so the teeth...
  • Page 15 CUT SAW OPERATION (cont.) Cutting procedure The saw blade does most of its cutting as it travels towards the operator. This can cause splintering on the top surface of the work piece. Therefore, if possible, position yourself or the work piece so that the desired “good” side of the work piece is facing away from you.
  • Page 16: Maintenance

    • Blow out the ventilation slots with compressed air periodically. Note: Ozito Industries will not be responsible for any damage or injuries caused by repair of the cut saw by an unauthorised person or by mishandling of the cut saw.
  • Page 17: Description Of Symbols

    DESCRIPTION OF SYMBOLS Volts Hertz ac/~ Alternating current Watts ø Direct current Diameter Milliamperes No load speed /min Revolutions or Amp hour reciprocation per minute Electrical Emissions Transformer Energy Conformity (EMC) Rating (MEPS) Read instruction manual Warning Indoor use only Double insulated Thermal cut-out protection Polarity...
  • Page 18: Pack Contents

    PACK CONTENTS 1 x 18V Cordless Lithium Ion Cut Saw 2 x U Type jigsaw blades 1 x Instruction manual OZITO INDUSTRIES PTY LTD AUSTRALIA (Head Office) 1 - 23 Letcon Drive, Bangholme, Victoria, Australia 3175 Telephone: 1800 069 486 Facsimile: +61 3 9238 5588 Website: www.ozito.com.au...
  • Page 19: Warranty

    DATE PURCHASED: ________________________________________________ 3 YEAR REPLACEMENT WARRANTY Your Ozito tool is guaranteed for a period of 36 months from the original date of purchase and is intended for DIY (Do it yourself) use only. The Lithium Ion battery is covered by a 12 month warranty.
