Summary of Contents for Ozito CSL-235
-
Page 2: Specifications
CSL-235 manual.qxd 12/30/10 11:15 AM Page 2 SPECIFICATIONS MODEL NO. CSL-235 Motor Size: 2000W Input: 230-240V ~ 50Hz Blade Diameter: 235mm (9 ”) Blade Bore: 25mm No Load Speed: 4800/min Depth of Cut: 85mm @ 90º; 56mm @ 45º Laser Type:... -
Page 3: Table Of Contents
CSL-235 manual.qxd 12/30/10 11:15 AM Page 3 TABLE OF CONTENTS SPECIFICATIONS………………………………………… Page 2 KNOW YOUR PRODUCT……………………………….. Page 2 INTRODUCTION………………………………………... Page 4 ELECTRICAL SAFETY…………………………………… Page 4 GENERAL POWER TOOL SAFETY WARNINGS……… Page 5 ADDITIONAL SAFETY INSTRUCTIONS FOR CIRCULAR SAWS………………………………….. Page 7 OPERATION …………………………………………….. -
Page 4: Introduction

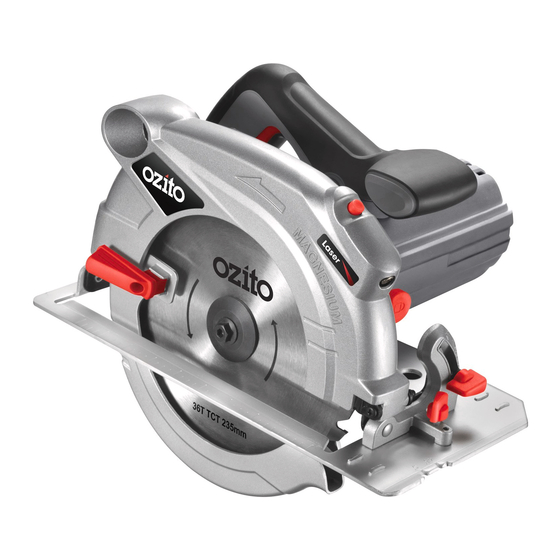

We hope you will enjoy using this appliance for many years. The Ozito Circular Saw CSL-235 has been designed to cut timber and is intended for DIY use only. ELECTRICAL SAFETY... -
Page 5: General Power Tool Safety Warnings
CSL-235 manual.qxd 12/30/10 11:15 AM Page 5 General Power Tool Safety Warnings - Personal Safety WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. - Page 6 CSL-235 manual.qxd 12/30/10 11:15 AM Page 6 General Power Tool Safety Warnings - Personal Safety (cont.) d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
-
Page 7: Additional Safety Instructions For Circular Saws
CSL-235 manual.qxd 12/30/10 11:15 AM Page 7 ADDITIONAL SAFETY INSTRUCTIONS FOR CIRCULAR SAWS DANGER! Keep hands away from cutting area and the blade. Keep your second hand on auxiliary handle, or motor housing. If both hands are holding the saw, they cannot be cut by the blade. - Page 8 CSL-235 manual.qxd 12/30/10 11:15 AM Page 8 ADDITIONAL SAFETY INSTRUCTIONS FOR CIRCULAR SAWS (cont.) c) When restarting a saw in the workpiece, centre the saw blade in the kerf and check that saw teeth are not engaged into the material. If saw blade is binding, it may walk up or kickback from the workpiece as the saw is restarted.
- Page 9 ADDITIONAL SAFETY INSTRUCTIONS FOR CIRCULAR SAWS (cont.) Additional safety instructions for laser lights The laser light/laser radiation used in the Ozito Circular Saw CSL-235 laser is Class 2 with maximun 1mW and 650nm wavelengths. These lasers do not normally present an optical hazard, although staring at the beam may cause flash blindness.
-
Page 10: Operation
CSL-235 manual.qxd 12/30/10 11:15 AM Page 10 OPERATION Depth Adjustment 1. Always disconnect the tool from the power source prior to making and adjustment 2. To loosen the depth adjustment lever (22) raise in an upward motion (Fig. 1). Fig. 1 3. - Page 11 CSL-235 manual.qxd 12/30/10 11:15 AM Page 11 OPERATION (cont.) Bevel Adjustment 1. Always disconnect the tool from the power source prior to making any adjustment. 2. The baseplate (15) can be adjusted up to 45º by loosening the bevel adjustment knob (10) at the front of the saw.
- Page 12 CSL-235 manual.qxd 12/30/10 11:15 AM Page 12 OPERATION (cont.) Using the Laser Light WARNING! Do not stare directly at the laser beam. • Always ensure that the laser light is turned off when the saw is not in use. •...
- Page 13 CSL-235 manual.qxd 12/30/10 11:15 AM Page 13 OPERATION (cont.) General Cuts • Always hold the soft grip handle (24) with one hand and the front handle (7) with the other (Fig. 11). WARNING! Always make sure either hand does not interfere with the free movement of the lower blade guard (16).
- Page 14 CSL-235 manual.qxd 12/30/10 11:15 AM Page 14 OPERATION (cont.) Rip Cuts The combination blade provided with the saw is for both cross cuts and rip cuts. Ripping is cutting lengthwise with the grain of the wood. Rip cuts are easy to do with a rip fence (25) (Fig. 12).
-
Page 15: Maintenance
CSL-235 manual.qxd 12/30/10 11:15 AM Page 15 MAINTENANCE 90º Cutting Angle Check 1. Always disconnect the tool from the power source prior to making any adjustments. 2. Set the baseplate (15) to the maximum depth of cut setting. 3. Loosen the bevel adjustment knob (10) (Fig. 14), set to 0º... - Page 16 CSL-235 manual.qxd 12/30/10 11:15 AM Page 16 MAINTENANCE (cont.) 4. Then remove the outer blade flange (17) (Fig. 18). Fig. 18 5. Carefully remove the blade (20) from the saw (Fig. 19). 6. Ensure blade flanges and blade bolt (19) are clean of sawdust, grease, etc.
-
Page 17: Spare Parts
Blow dust from the saw through the rear ventilation slots with compressed air periodically to ensure a dust free saw. Note: Ozito Industries will not be responsible for any damage or injuries caused by the repair of the saw by an unauthorised person or by mishandling of the saw. -
Page 18: Description Of Symbols
Revolutions or No load speed reciprocation per minute Double insulated Regulator compliance mark Nanometers Milliwatts PACK CONTENTS 1 x Circular Saw CSL-235 1 x 36 Tooth TCT blade 1 x Blade spanner 1 x Rip fence 1 x Instruction manual... -
Page 19: Caring For The Environment
Reuse of recycled material decreases pollution in the environment. Please recycle packaging where facilities exist. Check with your local council authority for recycling advice. OZITO INDUSTRIES PTY LTD AUSTRALIA (Head Office) 1 - 23 Letcon Drive, Bangholme, Victoria, Australia 3175... -
Page 20: Warranty
PURCHASED FROM: ________________________________________________ DATE PURCHASED: ________________________________________________ 3 YEAR REPLACEMENT WARRANTY Your Ozito tool is guaranteed for a period of 36 months from the original date of purchase and is intended for DIY (Do it yourself) use only. WARNING The following actions will result in the warranty being void.
