Summary of Contents for Paramount Fitness FR1010-T-72H

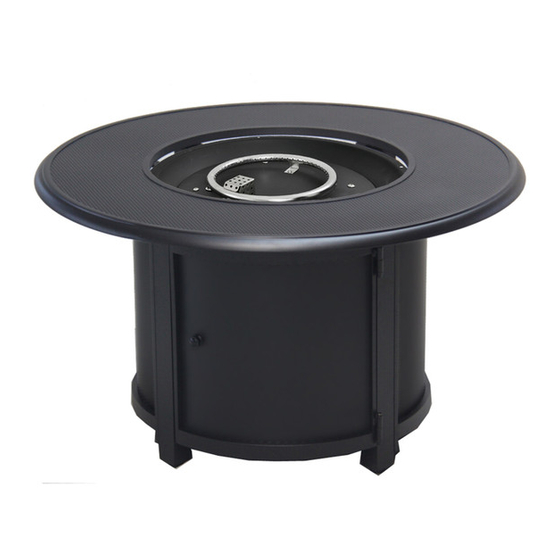

- Page 1 FP-541 HB FR1010-T-72H...
- Page 2 16 19...
- Page 3 Gas Tank Bracket Gas Tank Support Protective Cover Bolt (8*40mm) Bolt(6*20mm) Washer Qty. 8 Qty. 8 Hook Qty.1...
- Page 5 NOTE: It is best to use TWO PEOPLE for assembly of this gas fire pit table. Connect Side Panels (D,E,F,G) at top and bottom of each panel with Bolt , Washer (M) as shown in Figure 1 using Allen Wrench. NOTE: Do not over tighten all bolts.
- Page 6 Attach the 4 Bolt(8*40mm) (L) to the corners of the Table Top (C). Then align the Bolts with the holes in the Burner Bracket and assembled panels and insert the Bolts through the holes. Secure the Table Top to the Burner Bracket and assembled panels with 4 Washer,Spring Washer and Nuts (L).
- Page 7 Pour the Fire Glass (K) around the burner. Be careful not to obstruct pilot light housing. Put the Removable Burner Cover (A) on the burner when the fire pit is not in use or after use when the fire pit has cooled. When the fire pit has cooled completely, cover it with the Protective Cover (J).
- Page 11 OPERATING INSTRUCTIONS OPERATING INSTRUCTIONS CAUTION WARNING DANGER! Do not attempt to operate until you FOR OUTDOOR USE ONLY have read and understand all General Very hot while in operation! Safety Information in this manual and CARBON MONOXIDE HAZARD Do not touch Table Top or Burner all assembly is complete and leak Never use this inside a house, or other test has been performed.
-
Page 18: Gas Conversion From Lp To Ng
GAS CONVERSION FROM LP TO NG 5. Reconnect the brass coupler on the stainless steel flex connector to the air shutter. Tighten using 2 wrenches. 6. Turn all knobs to OFF. Remove propane regulator and hose with brass adapter from the burner control (manifold) with a wrench.
