Paramount Fitness FS1010-T-183 Instructions And Owner's Manual

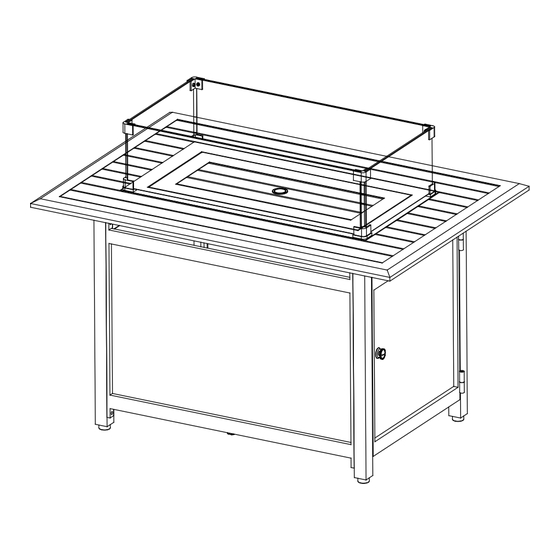

Outdoor fire pit
Hide thumbs Also See for FS1010-T-183:

Advertisement

Quick Links

Download this manual
FP-341G-GY
FS1010-T-183
Version A

Advertisement

loading
Need help?

Need help?

Do you have a question about the FS1010-T-183 and is the answer not in the manual?

Questions and answers

Related Manuals for Paramount Fitness FS1010-T-183

Summary of Contents for Paramount Fitness FS1010-T-183

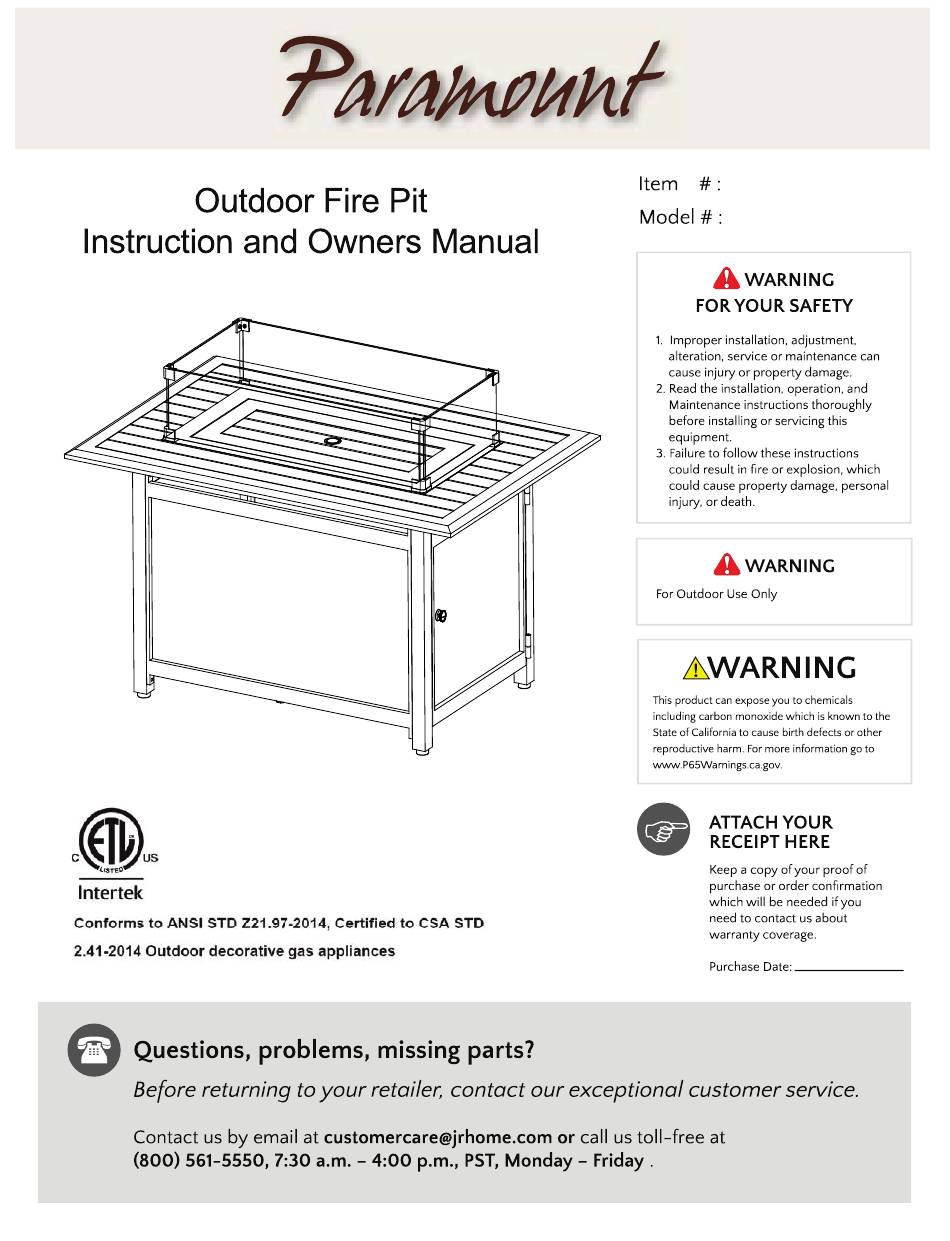

  • Page 1 FP-341G-GY FS1010-T-183 Version A...
  • Page 2 TABLE OF CONTENTS Table of Contents/Before You Begin Page 2 Package Contents Page 3 Safety Information Page 4 Assembly Page 5-8 Operating Instructions Pages 9-12 Care and Maintenance Page 13 Troubleshooting Page 14 Warranty Information Page 14 - 15 Conversion to Natural Gas Page 16 - 18 BEFORE YOU BEGIN Please read and understand this entire manual before attempting to assemble, operate or install...
  • Page 3 Burner Bracket 2 boxes Glass Windguard Short Glass Panels Long Glass Panels Up Snap with 2 bolts Down Snap with 2 bolts Soft pads Bolt(8*55mm) Nut(M8) Bolt(6*25mm) Screwdriver Washer Spring washer Washer Qty.1 Qty.4 Qty.10 Qty.1 Qty.1...
  • Page 4 SAFETY INFORMATION SAFETY INFORMATION DANGER DANGER This appliance has been tested to and FOR YOUR SAFETY EXPLOSION—FIRE HAZARD complies with the ANS Z 21.97-2010, Outdoor • Keep solid combustibles, such as building If you smell gas: Decorative Gas Appliances CGA CR 97-003 materials, paper, or cardboard a safe 1.
  • Page 5 Do not over tighten all Bolts.
  • Page 6 Place the Burner Bracket onto the assembled panels. Move the Burner so that the burner control can face Panel G. burner control Attach the 4 - Bolt(8*55mm) to the holes of the Table . Then align the Bolts with the holes in the Burner Bracket and assembled panels and insert the Bolts through the holes.
  • Page 7 Assemble the Glass Windguard carefully as photo showing. Use Glass Windguard Bolt with Screwdriver NOTE: There is a hole under each Down snaps hole Then put the soft pads on the bottom of the Down snaps bolt Then the Glass Windguard can be used as photo showing. NOTE: When the fire pit is NOT in use or after use,The glass windguard should be properly stored.

  • Page 9: Operating Instructions

    OPERATING INSTRUCTIONS A dented, rusted or damaged propane cylinder may be hazardous and should be checked by your cylinder supplier. Never use a propane cylinder with a damaged valve connection. Department of Transportation (DOT) or the standard for cylinders, spheres and tubs for transportation of dangerous goods and commission, CAN/CSA-B339.
  • Page 10 OPERATING INSTRUCTIONS LEAK CHECK WARNING! • Perform all leak tests outdoors. • • NEVER leak test when smoking. • Do not use the appliance until all connections have been leak tested and do not leak Hose / Regulator Regulator / Cylinder Connection Connection 1.
  • Page 11 OPERATING INSTRUCTIONS CAUTION AwARNING ADANGER! Do not attempt to operate until you FOR OUTDOOR USE ONLY have read and understand all General Very hot while in operation! Never lean over a fire pit while in use. Safety Information in this manual and CARBON MONOXIDE HAZARD Do not touch Table Top or Burner all assembly is complete and leak...
  • Page 12 OPERATING INSTRUCTIONS OPERATION CHECKLIST: WARNING For a safe and pleasurable heating experience, perform this check FOR YOUR SAFETY before each use: Be careful when attempting to manually ignite this appliance. Holding in the control BEFORE OPERATING: knob for more than 10 seconds before I am familiar with entire owner’s manual and understand all upon ignition.
  • Page 13 CARE & MAINTENANCE STORAGE: Between uses: perform the following maintenance activities on a regular basis: • Turn control knob OFF. • Disconnect LP source. cleaning agents. from direct contact with 2. While cleaning your unit, be sure to keep the area around the burner and inclement weather (such control compartment dry at all times.

  • Page 14: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Wait until the propane cylinder warms up and becomes Propane cylinder is frosted over unfrosted Burner will not light Clear blockage Control knob is not in ON position Turn control knob to ON Gas pressure is low Turn cylinder valve OFF and replace cylinder Outdoor temperature is less than Use a full cylinder...
  • Page 15 IMPORTANT For questions, concerns or problems with our product please Si vous éprouvez des dicultés, ou si vous avez des questions ou des email our customer service department: préoccupations, prière de faire parvenir un courriel à notre Service à la clientèle customercare@jrhome.com customercare@jrhome.com DATED PROOF OF PURCHASE REQUIRED FOR WARRANTY SERVICE...
  • Page 16 GAS CONVERSION FROM LP TO NG Paramount Natural Gas Conversion Kit This conversion must be performed by a qualified service person in accordance with the national regulations. All connections must be leak tested before operating the firepit. Refer to the manual for the part assembly diagrams and the exploded view of the unit. Warning! •...
  • Page 17 GAS CONVERSION FROM LP TO NG Unscrew Dévisser Unscrew / Dévisser Unscrew / Dévisser Unscrew Dévisser Unscrew Dévisser Pull Pull Séparez Séparez Unscrew Dévisser Unscrew Dévisser Set in se connecter Tool / outil tighten / Serrer...
  • Page 18 GAS CONVERSION FROM LP TO NG Set in se connecter tighten / Serrer tighten / Serrer tighten / Serrer tighten Serrer tighten / Serrer tighten / Serrer tighten Serrer...
