Paramount Fitness ULC-PC75-H-E Instructions And Owner's Manual

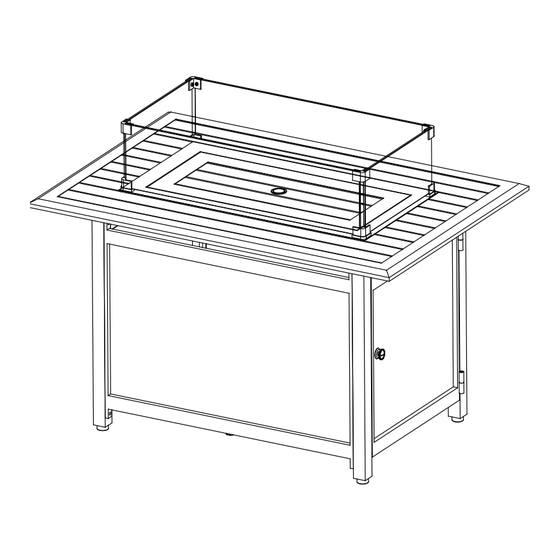

Outdoor fire pit
Hide thumbs Also See for ULC-PC75-H-E:

Advertisement

Quick Links

Download this manual
FP-341G-BK
FS1010-T-183 CARBON/
ULC-PC75-H-E

Advertisement

loading
Need help?

Need help?

Do you have a question about the ULC-PC75-H-E and is the answer not in the manual?

Questions and answers

Related Manuals for Paramount Fitness ULC-PC75-H-E

Summary of Contents for Paramount Fitness ULC-PC75-H-E

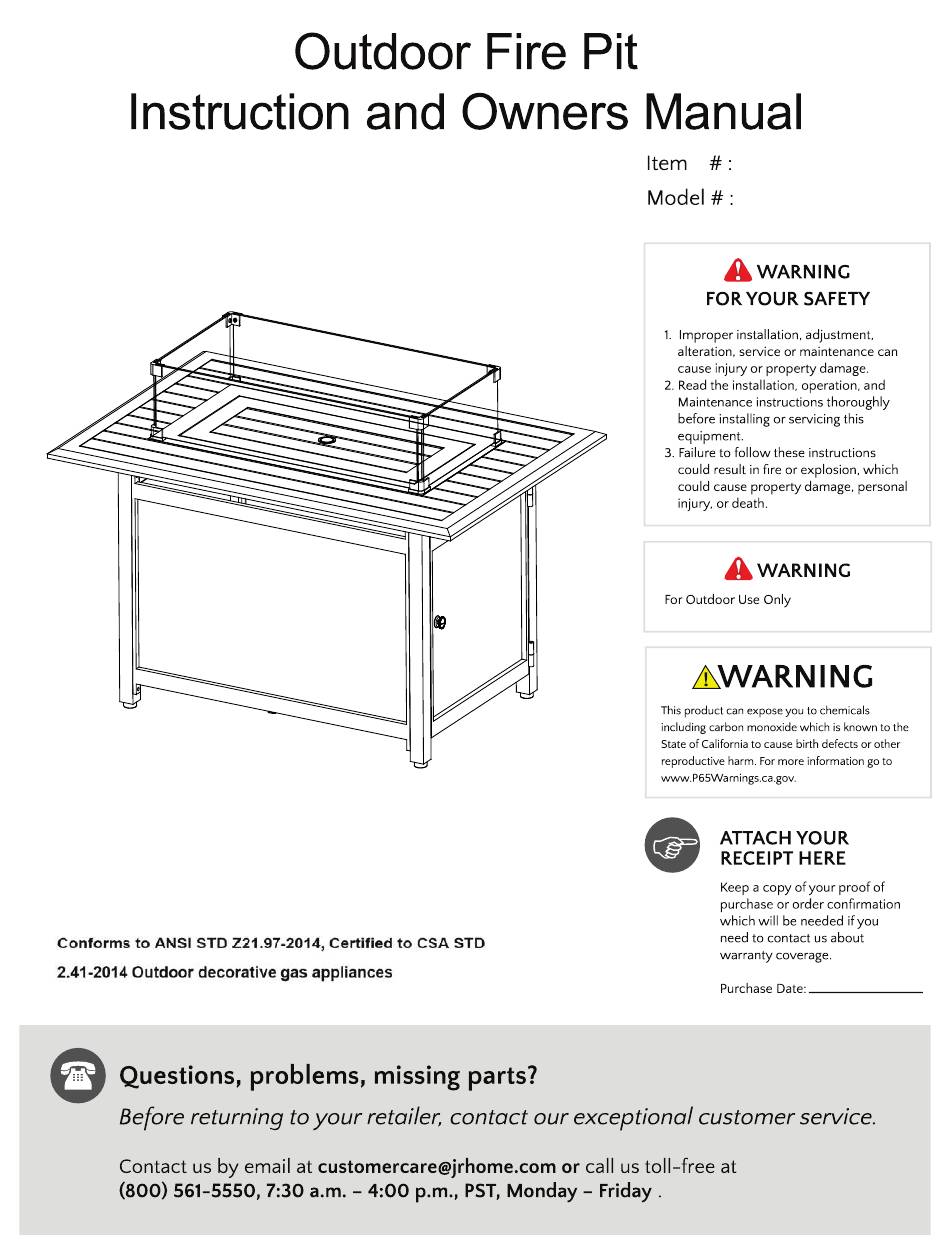

  • Page 1 FP-341G-BK FS1010-T-183 CARBON/ ULC-PC75-H-E...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Table of Contents/Before You Begin Page 2 Package Contents Page 3 Safety Information Page 4 Assembly Page 5-8 Operating Instructions Pages 9 Troubleshooting Page 10 Warranty Information Page 11 BEFORE YOU BEGIN Please read and understand this entire manual before attempting to assemble, operate or install this appliance.

  • Page 3: Package Contents

    Burner Bracket 2 boxes Glass Windguard Short Glass Panels Long Glass Panels Up Snap with 2 bolts Down Snap with 2 bolts Soft pads Bolt(8*60mm) Nut(M8) Bolt(6*25mm) Screwdriver Washer Spring washer Washer Qty.1 Qty.4 Qty.10 S Hook Qty.1 Qty.1 Qty.1...

  • Page 4: Safety Information

    SAFETY INFORMATION SAFETY INFORMATION DANGER DANGER This appliance has been tested to and FOR YOUR SAFETY EXPLOSION—FIRE HAZARD complies with the ANS Z 21.97-2010, Outdoor • Keep solid combustibles, such as building If you smell gas: Decorative Gas Appliances CGA CR 97-003 materials, paper, or cardboard a safe 1.

  • Page 5: Assembly

    Do not over tighten all Bolts.
  • Page 6 Place the Burner Bracket onto the assembled panels. Move the Burner so that the burner control can face Panel G. burner control Attach the 4 - Bolt(8*60mm) to the holes of the Table . Then align the Bolts with the holes in the Burner Bracket and assembled panels and insert the Bolts through the holes.
  • Page 7 Assemble the Glass Windguard carefully as photo showing. Use Glass Windguard Bolt with Screwdriver NOTE: There is a hole under each Down snaps hole Then put the soft pads on the bottom of the Down snaps bolt Then the Glass Windguard can be used as photo showing. NOTE: When the fire pit is NOT in use or after use,The glass windguard should be properly stored.
  • Page 8 WARNING When the hose is disconnected from the tank, use the hook P to hang the hose ext to the panel F.

  • Page 9: Operating Instructions Pages

    OPERATING INSTRUCTIONS A dented, rusted or damaged propane cylinder may be hazardous and should be checked by your cylinder supplier. Never use a propane cylinder with a damaged valve connection. Department of Transportation (DOT) or the standard for cylinders, spheres and tubs for transportation of dangerous goods and commission, CAN/CSA-B339.

  • Page 10: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Wait until the propane cylinder warms up and becomes Propane cylinder is frosted over unfrosted Burner will not light Clear blockage Control knob is not in ON position Turn control knob to ON Gas pressure is low Turn cylinder valve OFF and replace cylinder Outdoor temperature is less than Use a full cylinder...

  • Page 11: Warranty Information

    IMPORTANT For questions, concerns or problems with our product please Si vous éprouvez des dicultés, ou si vous avez des questions ou des email our customer service department: préoccupations, prière de faire parvenir un courriel à notre Service à la clientèle customercare@jrhome.com customercare@jrhome.com DATED PROOF OF PURCHASE REQUIRED FOR WARRANTY SERVICE...
  • Page 12 Convertible Burner Model # : Item # : WARNING FPB-RECT-002 and FPB-RECT-002MO FP-REC FOR YOUR SAFETY FP-SQ FPB-SQ-001 and FPB-SQ-001MO FP-RD FPB-RD-002 and FPB-RD-002MO 1. Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. 2. Read the installation, operation, and Maintenance instructions thoroughly before installing or servicing this equipment.
  • Page 13 TABLE OF CONTENTS Safety Information Page Page -8 Page - Operating Instructions Page Care and Maintenance Page Converting from Propane Natural Gas Page 1 - BEFORE YOU BEGIN Please read and understand this entire manual before attempting to assemble, operate or install this appliance.
  • Page 14 SAFETY INFORMATION SAFETY INFORMATION DANGER DANGER This appliance has been tested to and FOR YOUR SAFETY EXPLOSION—FIRE HAZARD • Keep solid combustibles, such as building complies with the ANS Z 21. 7-201 , Outdoor If you smell gas: materials, paper, or cardboard a safe Decorative Gas Appliances 1.
  • Page 15 1. Shut off gas to the appliance. 2. Extinguish any open flame. 3. If odor continues, keep away from the appliance and immediately call your gas supplier or fire department. Contact us for assistance: customercare@jrhome.com | (800) 561-5550...
  • Page 16 Contact us for assistance: customercare@jrhome.com | (800) 561-5550...
  • Page 17 Burner pan Guard Contact us for assistance: customercare@jrhome.com | (800) 561-5550...
  • Page 18 Model no.:ULC-PZ48-C-E Guard Contact us for assistance: customercare@jrhome.com | (800) 561-5550...
  • Page 19 Burner pan Guard Contact us for assistance: customercare@jrhome.com | (800) 561-5550...
  • Page 20 INSTALLATION GUIDELINES A. Carefully inspect the carton for shipping damage. If any parts are missing or damaged, call your customer assistance. Do not attempt to install the appliance unless all parts are in good condition. B. Correct installation is crucial to safe performance of your Outdoor Fire Pit. C.
  • Page 21 REQUIREMENTS 1. Only non-combustible materials should come in direct contact with any part of the Fire Pit. Underneath area should be non-combustible as well. be used to ensure a proper installation. 4. Y 5. Follow the local code requirements for the gas type being used. This Fire Pit should be installed in accordance with local codes and ordinances or in the absence of local codes, with the latest National Fuel Gas Code, ANSI Z223.1 NFPA54 or CSA B149.1, Natural and Propane Installation Code in Canada.
  • Page 22 WARNING *Do not use this fire pit for cooking. *Do not burn any other materials than are supplied with and intended for use in this fire pit. *Do not pour water into fire pit. *The installation of this product must conform with local codes. *Do not use this fire pit if any part has been under water.
  • Page 23 OPERATING INSTRUCTIONS FOR LIQUID PROPANE GAS UNITS *Do not attempt to disconnect the gas regulator or any gas fitting while your fire pit is in operation. *A dented or rusty liquid propane cylinder may be hazardous and should be checked by your gas supplier prior to use. *Do not use a liquid propane cylinder with a damaged valve and any other worn out parts.
  • Page 24 OPERATING INSTRUCTIONS LEAK CHECK WARNING! • Perform all leak tests outdoors. • • NEVER leak test when smoking. • Do not use the appliance until all connections have been leak tested and do not leak Hose / Regulator Regulator / Cylinder Connection Connection 1.
  • Page 25 OPERATING INSTRUCTIONS OPERATING INSTRUCTIONS CAUTION WARNING DANGER! Do not attempt to operate until you FOR OUTDOOR USE ONLY have read and understand all General Very hot while in operation! Safety Information in this manual and CARBON MONOXIDE HAZARD Do not touch Table Top or Burner all assembly is complete and leak Never use this inside a house, or other test has been performed.
  • Page 26 OPERATING INSTRUCTIONS OPERATION CHECKLIST: WARNING For a safe and pleasurable heating experience, perform this check FOR YOUR SAFETY before each use: Be careful when attempting to manually ignite this appliance. Holding in the control knob for more than 10 seconds before BEFORE OPERATING: I am familiar with entire owner’s manual and understand all upon ignition.
  • Page 27 CARE & MAINTENANCE STORAGE: To enjoy years of outstanding performance from your burner, make sure you Between uses: perform the following maintenance activities on a regular basis: • Turn control knob OFF. • Disconnect LP source. cleaning agents. from direct contact with 2.
  • Page 28 TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Wait until the propane cylinder warms up and becomes Propane cylinder is frosted over unfrosted Burner will not light Clear blockage Control knob is not in ON position Turn control knob to ON Gas pressure is low Turn cylinder valve OFF and replace cylinder Outdoor temperature is less than Use a full cylinder...
  • Page 29 IMPORT For questions, concerns or problems with our product please Si vous éprouvez si vous avez des questions ou des email our customer service department: préoccupations, prière de faire parvenir un courriel à notre Service à la clientèle customercare@jrhome.com customercare@jrhome.com DATED PROOF OF PURCHASE REQUIRED FOR WARRANTY SERVICE UNE PREUVE D’ACHAT DATÉE EST REQUISE POUR SE PRÉVALOIR DE LA GARANTIE.
  • Page 30 CONVERTING FROM LIQUID PROPANE (LP) TO NATURAL GAS (NG) WARNING MAKE SURE ALL CONTROL KNOBS & CYLINDER VALVE ARE IN OFF POSITION BEFORE CONVERTING. This appliance is portable and shipped from the factory for use with Liquid Propane (LP Gas), which is delivered to the grill from removable tanks (LP tanks and their use are covered elsewhere in this manual).
  • Page 31 GAS CONVERSION LP TO NG WARNING! To avoid the possibility of burns conversions should only be done when the burner is turned off. Turn gas off at source and disconnect the burner before beginning conversion. WARNING! tested before operating the appliance. Your burner comes from the factory set up for propane but it can be easily converted to natural gas by following these steps: 2.
  • Page 32 GAS CONVERSION LP TO NG 4. Separate the two parts of the orifice connector by using two wrenches. Orifice Connector 5. Replace the propane orifice with the natural gas orifice and retighten with wrenches. Natural Gas Orifice 6. Insert the Orifice holder into the air shutter. Tighten with wrench.
  • Page 33 GAS CONVERSION FROM LP TO NG GAS CONVERSION LP TO NG quick disconnect must not be installed in an upward direction and a readily accessible manual shut-off valve must be installed upstream of, and as close to, the quick disconnect as is feasible. Contact us for assistance: customercare@jrhome.com | (800) 561-5550...
