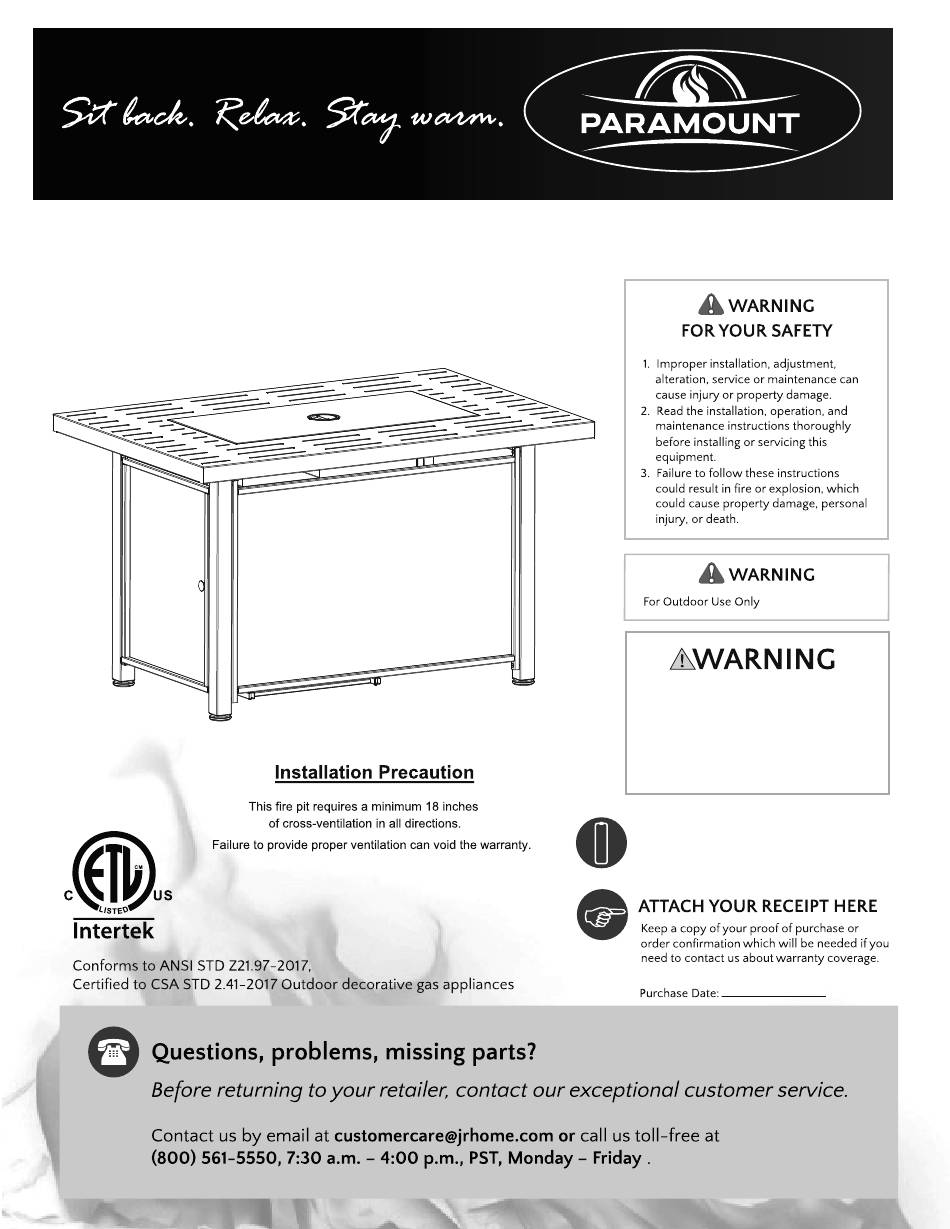

Charlie Aluminum
Convertible Fire Table
Manual and Instruction Guide
M
odel #: FP-10314
Item #: KLD4007
This product can expose you to chemicals
including Lead, Chromium (hexavalent
compounds), Di(2-ethylhexyl) phthalate (DEHP)
and Diisononyl phthalate (DINP), which are known
to the State of California to cause cancer and birth
defects or other reproductive harm. For more
information, go to www.P65Warnings.ca.gov.
Electronic Ignition
+
Requires 1 AA battery
_
(not included)
TM/MC
Advertisement
Table of Contents
Related Manuals for Paramount Fitness FP-10314
Summary of Contents for Paramount Fitness FP-10314
- Page 1 TM/MC odel #: FP-10314 Charlie Aluminum Item #: KLD4007 Convertible Fire Table Manual and Instruction Guide This product can expose you to chemicals including Lead, Chromium (hexavalent compounds), Di(2-ethylhexyl) phthalate (DEHP) and Diisononyl phthalate (DINP), which are known to the State of California to cause cancer and birth defects or other reproductive harm.
-
Page 2: Before You Begin
BEFORE YOU BEGIN TM/MC 11-12 Troubleshooting 4-15 Page 16-19 Converting from Propane to Naturals Gas Contact us for assistance: customercare@jrhome.com | (800) 561-5550... -
Page 3: Safety Information
SAFETY INFORMATION TM/MC PART DESCRIPTION Table Top Bowl Frame Back Panel Right Side Panel Left Side Panel Front Panel Burner Door Handle Bottom Cylinder Fixing Plate Fire Glass Electronic ignition. Requires (1) AA Battery. (Not Included) HARDWARE CONTENTS M6x30 screw M6x25 screw Qty: 12 Qty: 4... - Page 4 SAFETY INFORMATION TM/MC Contact us for assistance: customercare@jrhome.com | (800) 561-5550...
- Page 5 TM/MC Locate 4 panels D/E/F/G. Note: Side panel E and F bottom hole towards to Front panel G Attach using 8pcs M6x12 Screws (AA). Hardware: M6x30 screw x 8 K to the Bottom J Attach the 2pcs Cylinder with the preassembled M6x12 Bolts (DD) and M6 Nuts (EE) Attach the bottom to the side panel E/F with 4pcs M6x25 screws (BB).
- Page 6 TM/MC Carefully turn the side panel assembly upside down. Attach the Bowl Frame C to Front/Back Panel D/G with 4pcs M6x30 screws (AA). NOTE: To insure proper bowl frame orientation, locate the Label “C”. Make sure the “C” label side faces towards the inside of the table.
- Page 7 TM/MC Attach the Door Handle I to the Front panel G with preassmebled M4x8 screw (GG) and M4 Washer (HH). Hardware: M4x8 Screw (Preassembled) x 1 HH M4 Washer (Preassembled) x 1 obstruct pilot lighting housing. Put the Lid A on the burner.
- Page 8 TM/MC Connect hose and regulator to cylinder. The propane gas and cylinder are sold separately. Use a standard 20lb propane cylinder have this book. Storage of an appliance indoors is permissible only if the cylinder is disconnected and removed from the appliance. A cylinder must be stored outdoors in a well-ventilated area out of the reach of children.
- Page 9 TM/MC Contact us for assistance: customercare@jrhome.com | (...
- Page 10 TM/MC LEAK CHECK WARNING! Hose / Regulator Regulator / Cylinder Connection Connection 2. Apply several drops of solution where hose attaches to regulator. 3. Apply several drops of solution where regulator connects to cylinder. 5. Turn cylinder valve ON. If bubbles appear at any connection there is a leak. 1.
- Page 11 TM/MC FOR YOUR SAFETY OPERATION CHECKLIST: Contact us for assistance: customercare@jrhome.com | (800) 561-5550...
- Page 12 TM/MC Refer to Step 9. Smell all around the unit area for gas. Be sure to smell near the bottom as gas is heavier than air and will settle to the lowest point. If you smell gas, shut off the gas to the appliance, extinguish any open department.
-
Page 13: Care And Maintenance
CARE AND MAINTENANCE TM/MC Contact us for assistance: customercare@jrhome.com | (... -
Page 14: Troubleshooting
TROUBLESHOOTING TM/MC WARRANTY AND REVIEWS ® ActiveFlame F I R E P L A C E S ® ® JR HOME COLLECTION bringing innovation to all part of your home ® ® une touche d’ i nnovation à toutes les pièces de votre maison ®... - Page 15 IMPORTANT For questions, concerns or problems with our product please Si vous éprouvez si vous avez des questions ou des email our customer service department: préoccupations, prière de faire parvenir un courriel à notre service à la clientèle customercare@jrhome.com customercare@jrhome.com DATED PROOF OF PURCHASE REQUIRED FOR WARRANTY SERVICE UNE PREUVE D’ACHAT DATÉE EST REQUISE POUR SE PRÉVALOIR DE LA GARANTIE.
- Page 16 CONVERTING FROM LIQUID PROPANE (LP) TO NATURAL GAS (NG) TM/MC WARNING MAKE SURE ALL CONTROL KNOBS & CYLINDER VALVE ARE IN OFF POSITION BEFORE CONVERTING. This appliance is portable and shipped from the factory for use with Liquid Propane (LP Gas), which is delivered to the grill from removable tanks (LP tanks and their use are covered elsewhere in this manual).
- Page 17 GAS CONVERSION LP TO NG TM/MC WARNING! To avoid the possibility of burns conversions should only be done when the burner is turned off. Turn gas off at source and disconnect the burner before beginning conversion. WARNING! tested before operating the appliance. Your burner comes from the factory set up for propane but it can be easily converted to natural gas by following these steps: 1.
- Page 18 GAS CONVERSION LP TO NG TM/MC 4. Separate the two parts of the orifice connector by using two wrenches. Orifice Connector 5. Replace the propane orifice with the natural gas orifice and retighten with wrenches. Natural Gas Orifice 6. Insert the Orifice holder into the air shutter. Tighten with wrench.
- Page 19 GAS CONVERSION LP TO NG TM/MC quick disconnect must not be installed in an upward direction and a readily accessible manual shut-off valve must be installed upstream of, and as close to, the quick disconnect as is feasible. Contact us for assistance: customercare@jrhome.com | (800) 561-5550...
