Electronic ignition.

Requires (1) AAA.

(Not Included)

FP-341-GY

FPT1879

Need help?

Do you have a question about the FP-341-GY and is the answer not in the manual?

Questions and answers

Summary of Contents for Paramount Fitness FP-341-GY

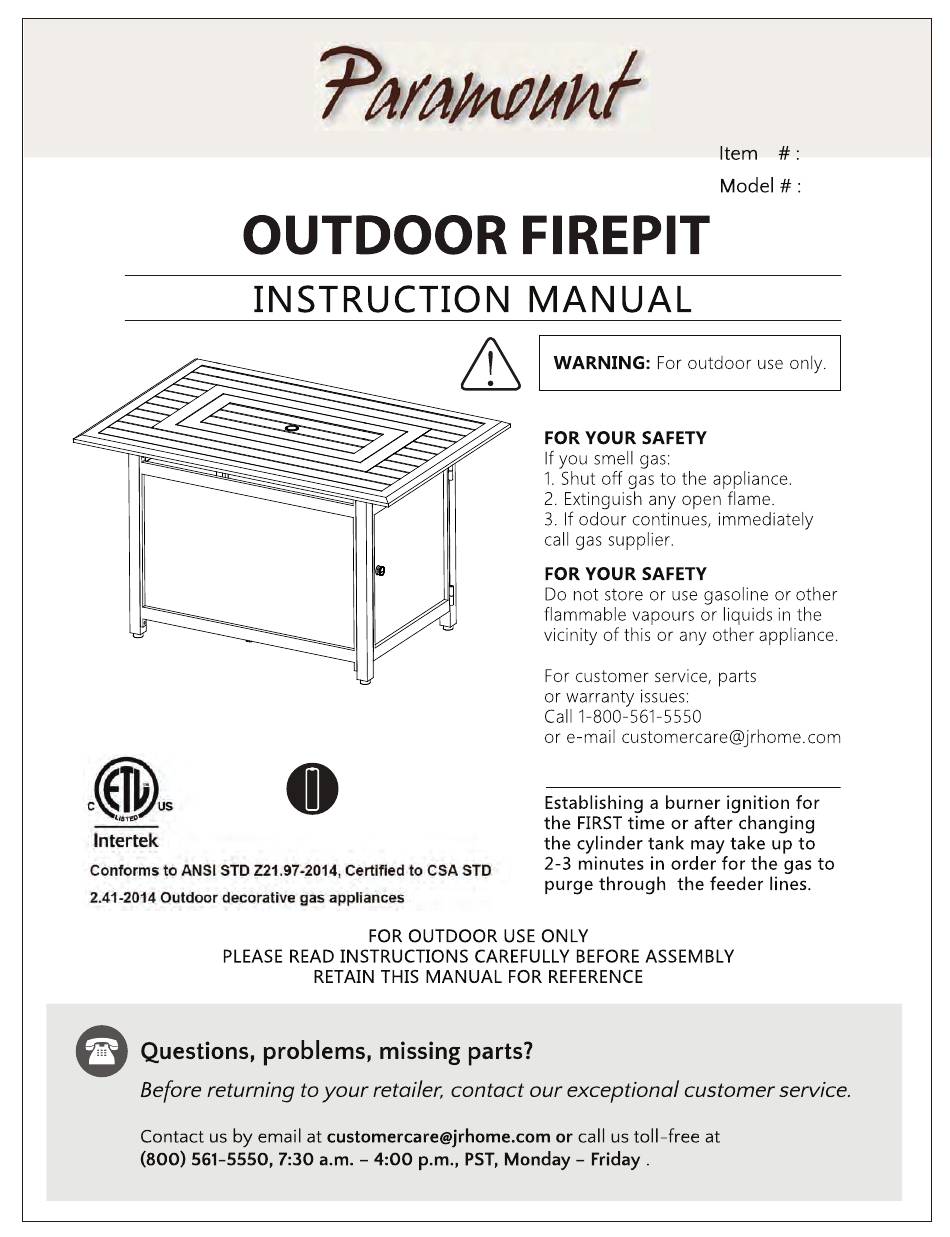

Page 1 FP-341-GY FPT1879 Electronic ignition. Requires (1) AAA. (Not Included)
Page 2 Page 3 Page Page 5- Page 1 WARRANTY WARNING : This product can expose you to chemicals including Di(2-ethylhexyl)phthlate (DEHP) and Diisononyl Phthalate (DINP)which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Page 3 PACKAGE CONTENTS Burner Table Top Front Door Panel Side Panels Back Panel Gas Tank Support Bar Gas Tank Support Ring...
Page 4 HARDWARE CONTENTS Washer 6mm Bolt 6x16mm Bolt 8x20mm Washer/Spring Washer 8mm Bolt 6x25mm Qty: 12 Qty: 4 Qty: 5 Qty: 5 Qty: 9 (11 for assembly +1 extra) (3 for assembly +1 extra) (4 for assembly +1 extra) (4 for assembly +1 extra) (8 for assembly +1 extra) Hex Wrench Wrench...
Page 5 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS Locate 4 Panels D/E/F. Place a Washer P on each of 8 Bolts N and insert through holes of Side Panels into the holes of Leg Panels D/F. Tighten all Bolts N with Hex Wrench S. Hardware: N Bolt (6x25mm) x 8 P Washer (6mm) x 8...
Page 6 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS Gas Tank Support Ring H over Gas Tank Support Bar G and align hole on front of Gas Tank Support Ring with holes at the bottom of Front Door Panel D. Insert. Bolt O through Washer P and then through hole. Tighten with Hex Key S.
Page 7 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS Gently place the Burner B into the hole in the Table Top C , allowing the hose and regulator to drop into the fire pit base. Make sure the Control Panel on the Burner faces the Front Door Panel D Hang the S hook J into the hole of Side Panel’s vertical pipe, then the pipe of the Burner to the hook.
Page 8 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS Connect hose and regulator to cylinder. The propane gas and cylinder are sold separately. Use a standard 20lb propane cylinder have this book. Storage of an appliance indoors is permissible only if the cylinder is disconnected and removed from the appliance. A cylinder must be stored outdoors in a well-ventilated area out of the reach of children.
Page 9 ASSEMBLY INSTRUCTIONS When the hose is disconnected from the tank, use the hook X to hang the hose next to the panel.
Page 10 TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Wait until the propane cylinder warms up and becomes Propane cylinder is frosted over unfrosted Burner will not light Clear blockage Control knob is not in ON position Turn control knob to ON Gas pressure is low Turn cylinder valve OFF and replace cylinder Outdoor temperature is less than Use a full cylinder...
Page 11 IMPORTANT For questions, concerns or problems with our product please Si vous éprouvez si vous avez des questions ou des email our customer service department: préoccupations, prière de faire parvenir un courriel à notre service à la clientèle customercare@jrhome.com customercare@jrhome.com DATED PROOF OF PURCHASE REQUIRED FOR WARRANTY SERVICE UNE PREUVE D’ACHAT DATÉE EST REQUISE POUR SE PRÉVALOIR DE LA GARANTIE.
