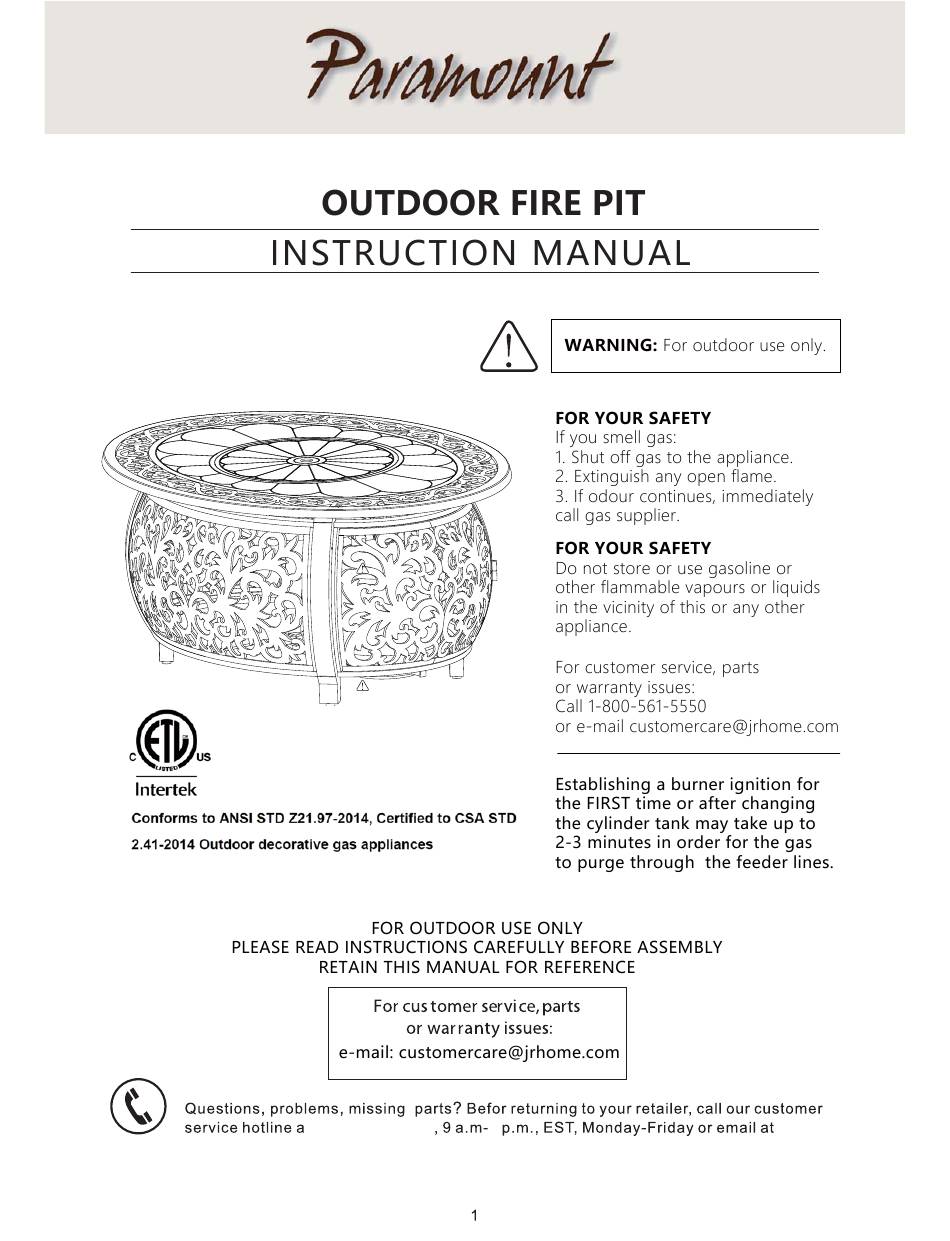

- Page 1 Item# ： FP-271 Model# ： FPT-14002 1-800-561-5550 customercare@jrhome.com...
- Page 3 PA C K A G E CO NT E NT S Q UA NT IT Y PA R T DE S C R IP T IO N Removable Burner Cover Table Top Burner Burner Bracket Side Panel 1 Side panel 2 Gas Tank Support 1 Gas Tank Support 2 Door...
-
Page 4: Hardware Contents
HA R DWA R E CO NT E NT S Wrench Washer(M6) Spring washer(M6) Nut(M6) Stud 6 40mm Bolt 6 30mm Qty.16 Qty.3 Qty.22 Qty.19 Qty.19 Qty.2 Washer(M8) Spring washer(M8) Nut(M8) Screwdriver Stud 8 30mm Stud 8 35mm Qty.4 Qty.4 Qty.8 Qty.8 Qty.8... -
Page 5: Safety Information
SAFETY INFORMATION DANGER DANGER ·EXPLOSION - FIRE HAZARD · CARBON MONOXIDE HAZARD ·Keep solid combustibles, such as building materials, ·This fire pit is a combustion appliance. All combustion paper or cardboard, a safe distance away from the appliances produce carbon monoxide (CO) during the fire pit as recommended by the instructions combustion process. - Page 6 SAFETY INFORMATION WARNING WARNING California Proposition 65 ·This product is fueled by propane gas. Propane gas Combustion by-products produced when using is invisible, odorless, and flammable. An odorant is this product contain chemicals known to the State normally added to help detect leaks and can be of California to cause cancer, birth defects, and described as a "rotten egg”smell.
-
Page 7: Operation Checklist
OPERATION CHECKLIST Operation Checklist For a safe and pleasurable heating experience, perform this check before each use. Before Operating 1. I am familiar with entire owner’s manual and understand all precautions noted. 2. All components are properly assembled, intact and operable. 3. - Page 8 ASSEMBLY INSTRUCTIONS 1.Screw the Stud(6*40mm)-L onto the 4 legs-E. The Stud on the leg through the hole in the Side Panels-F1, then slide on Washer(M6)-N, Spring washer(M6)-O, and secure with Nut(M6)-P. Use Wrench -Q to secure. DO NOT OVERTIGHTEN.In order to assemble the E and F2, F3.Final installation H, these two bolts should not be pre-threaded.must line-up holes on door panel and leg first,then thread the bolts.
- Page 9 ASSEMBLY INSTRUCTIONS 3.Affix the Gas Tank Support 2-G1 onto the Gas Tank Support 1 by placing it onto Gas Tank support, Insert Bolt(6*30)-M, thru Washer (M6)-N, then insert Bolt/Washer threw holes. Side Washer(M6)-N and Spring washer(M6)-O,over Bolt end, Nut(M6)-P. Use Wrench -Q to secure. Hardware used Bolt(6*30mm) Washer(M6)
- Page 10 ASSEMBLY INSTRUCTIONS 5 Place the Table Top onto the assembled fire pit and secure to the fire pit using Stud 8*30mm R Washer(M8)-T Spring Washer(M8) -U &Nut 8mm V Use Wrench -Q and Screwdriver -W to secure. Stud(8*30mm) Washer(M8) Spring washer(M8 Nut(M8) Wrench Screwdriver...
- Page 11 ASSEMBLY INSTRUCTIONS 7. Connect hose and regulator to cylinder. The propane gas and cylinder are sold separately. Use a standard 20 Ib. propane cylinder only. Use this heater only with a propane vapor withdrawal supply system. See chapter 5 of the standard for storage and handling of liquefied petroleum gas, Your local library or fire department ANSI/NF PA58.
- Page 12 ASSEMBLY INSTRUCTIONS A dented, rusted or damaged propane cylinder may be hazardous and should be checked by your cylinder supplier. Never use a propane cylinder with a damaged valve connection. The propane cylinder must be constructed and ma e rk d in accor dance with the specifications for LP gas...
- Page 13 OPERATION INSTR UCTIONS Leak Check WARNING ·Perform all leak tests outdoors ·Extinguish all open flames. ·NEVER leak test when smoking. · Do not use the fire pit until all connections have b leak tested and do not leak. Hose / Regulator Regulator / Cylinder connection connection...
- Page 14 OPERATION INSTRUCTIONS DANGER WAR1,1* Very hot while in operation ‡ &$5%21 0212;,'( +$=$5' 1HYHU OHDQ RYHU WKH ILUHSODFH ZKLOH LQ XVH ‡ )RU RXWGRRU XVH RQO\ 1HYHU XVH LQVLGH KRXVH RU RWKHU 'R QRW WRXFK WLOH RI VSDUN JXDUG ZKLOH WKH ILUH SLW LV LQ XQYHQWLODWHG RU HQFORVHG DUHDV 7KLV ILUH SLW FRQVXPHV DLU RSHUDWLRQ ZDLW XQWLO WKH ILUH SLW KDV FRROHG GRZQ DIWHU XVH R[\JHQ 'R QRW XVH LQ XQYHQWLODWHG RU HQFORVHG DUHDV WR...
-
Page 15: Care And Maintenance
OPERATION INSTRUCTIONS WARNING FOR YOUR SAFETY Be careful when attempting to manually ignite this fire pit. Holding in the control know for more than 10 seconds before igniting the gas will cause a ball of flame upon ignition When fire pit is ON Burner will display tongues of blue and yellow flame. - Page 16 CARE AND MAINTENANCE Gas odor with extreme yellow tipping of flame. Fire pit does NOT reach the desired temperature. Fire pit glow is excessively uneven. Fire pit makes popping noises. Spiders and insects can nest in burner or orifices. This dangerous condition can damage fire pit and render it unsafe for use.
-
Page 17: Troubleshooting
TROUBLESHOOTING Wait until the propane cylinder Propane cylinder is frosted over warms up and becomes unfrosted Burner won´ light Blockage in orifice Clear blockage Control knob is not in ON position Turn control knob to ON Turn cylinder valve OFF and fill the Gas pressure is low cylinder The temperature is less than 40°F... -
Page 18: Warranty
IMPORTANT For questions, concerns or problems with our product please email our customer service department: customercare@jrhome.com or call 1-800-561-5550. DATED PROOF OF PURCHASE REQUIRED FOR WARRANTY SERVICE. WARRANTY This product is inspected, tested and carefully packaged to minimize the chance of damage during shipment.
