Summary of Contents for Paramount Fitness FPT1524

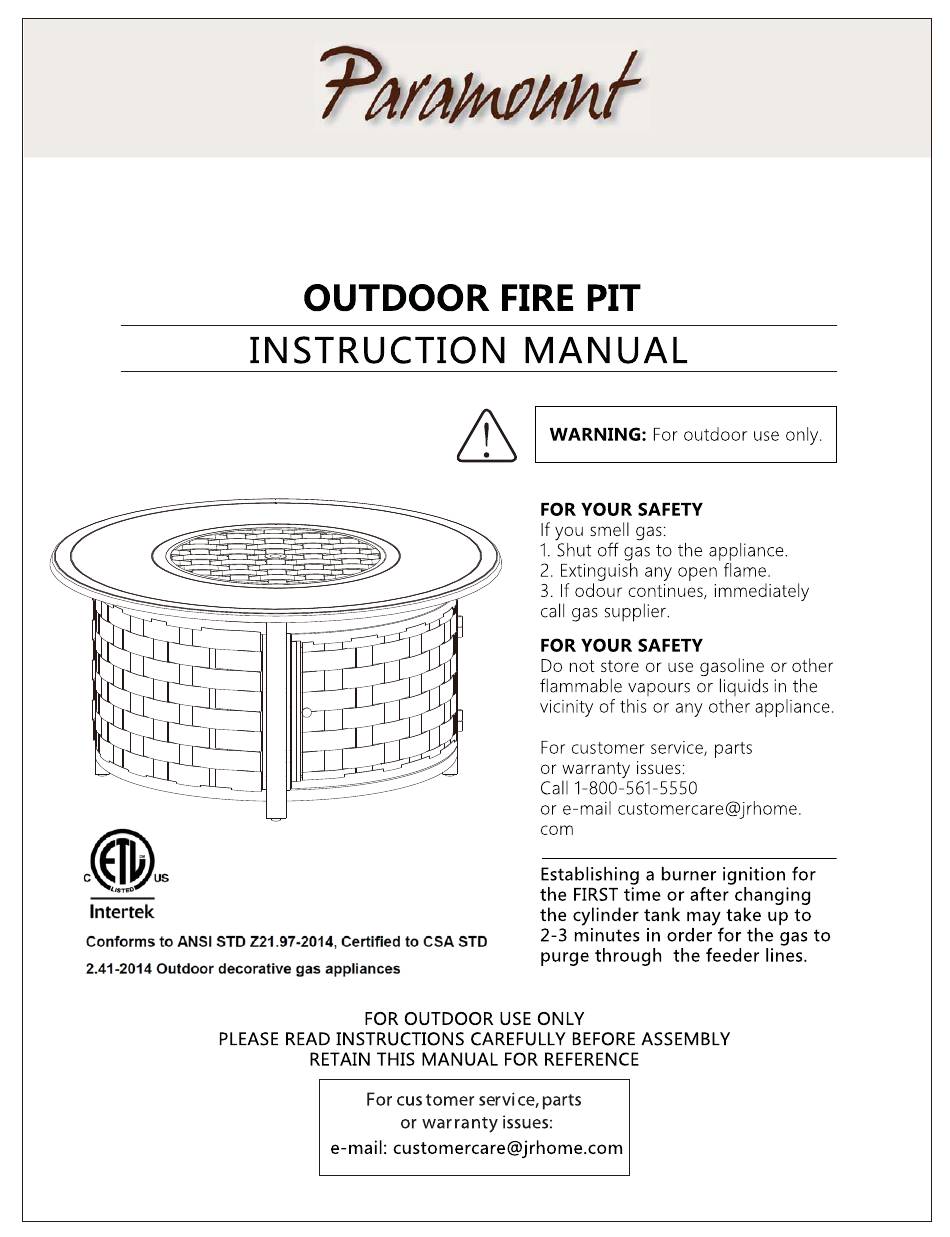

- Page 1 Item#： FP-285 Model#： FPT1524 Lorem ipsum...
- Page 2 Page 3 Page Page 5-6 Page 7 Page 8-12 CONVERSION TO NATURAL GAS Page 13-16 Page 17 -18 Page 19 Page 20 WARRANTY / REVIEWS Page 20 Page 21...
-
Page 3: Package Contents
PACKAGE CONTENTS PART DESCRIPTION QUANTITY Removable Burner Cover Burner Table Top Side Panels Door Panel Legs Gas Tank Support Bar Gas Tank Support Ring Protective Cover Fire Glass... -
Page 4: Hardware Contents
HARDWARE CONTENTS Stud 8x30mm Washer, Spring Washer M6 Bolt 6x18mm Stud 6x40mm Qty: 5 Washer, Nut 8mm Qty: 22 Qty: 6 Qty: 17 Qty: 5 (21 for assem. +1 extra) (4 for assem. +1 extra) (5 for assem. +1 extra) (16 for assem. -
Page 5: Safety Information
SAFETY INFORMATION... - Page 6 SAFETY INFORMATION WARNING CARBON MONOXIDE HAZARD California Proposition 65 This fire pit is a combustion appliance. All combustion Combustion by-products produced when using appliances produce carbon monoxide (CO) during the this product contain chemicals known to the State combustion process. This product is designed to produce of California to cause cancer, birth defects, and extremely minute, non-hazardous amounts of CO if used other reproductive harm.
-
Page 7: Operation Checklist
OPERATION CHECKLIST Operation Checklist For a safe and pleasurable heating experience, perform this check before each use. Before Operating ensure: 1. You are familiar with entire owner manual and understand all precautions noted. 2. All components are properly assembled, intact and operable. 3. - Page 8 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS 1. NOTE: It is best to use TWO PEOPlE for assembly of this gas fire pit. Locate 4 legs -F . Screw 2 Studs -M into the holes on each side of the leg. Make sure all legs have the foot end facing down, then align holes in 3 Side Panels -D with ends of the Studs -M sticking out of each leg.
- Page 9 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS 3. Place Table Top -C so underside is facing up on an even soft. clean surface.Screw 4-Studs -K into the Table Top -C using the Screwdriver -R .Then turn the Table Top over, and align the Studs with the holes in the top of legs.Slide Washer/Spring Washer/Nut L over the end of the Stud-K and secure with Nut-L .
- Page 10 ASSEMBLY INSTRUCTIONS 5 . Connect hose and regulator to cylinder. The propane gas and cylinder are sold separately. Use a standard 20 Ib. propane cylinder only. Use this heater only with a propane vapor withdrawal supply system. See chapter 5 of the standard for storage and handling of liquefied petroleum gas, ANSI/NFPA58.
- Page 11 ASSEMBLY INSTRUCTIONS...
- Page 12 OPERATION INSTRUCTIONS Leak Check Leak Test WARNING *Perform all leak tests outdoors. *Extinguish all open flames. *NEVER leak test when smoking. *Do not use the fire pit until all connections have been leak tested and do not leak. Hose Regulator Regulator / Cylinder connection connection...
-
Page 13: Conversion To Natural Gas
GAS CONVERSION FROM LP TO NG CONVERSION TO NATURAL GAS WARNING MAKE SURE ALL CONTROL KNOBS & CYLINDER VALVE ARE IN OFF POSITION BEFORE CONVERTING. This appliance is portable and shipped from the factory for use with Liquid Propane (LP Gas), which is delivered to the grill from removable tanks (LP tanks and their use are covered elsewhere in this manual). - Page 14 GAS CONVERSION FROM LP TO NG WARNING! To avoid the possibility of burns conversions should only be done when the burner is turned off. Turn gas off at source and disconnect the burner before beginning conversion. WARNING! tested before operating the appliance. Your burner comes from the factory set up for propane but it can be easily converted to natural gas by following these steps: 1.
- Page 15 GAS CONVERSION FROM LP TO NG 5. Reconnect the brass coupler on the stainless steel flex connector to the air shutter. Tighten using 2 wrenches. 6. Turn all knobs to OFF. Remove propane regulator and hose with brass adapter from the burner control (manifold) with a wrench.
- Page 16 GAS CONVERSION FROM LP TO NG burner disconnect must not be installed in an upward direction and a readily accessible manual shut-off Contact us for assistance: customercare@jrhome.com | (800) 561-5550...
- Page 17 OPERATING INSTRUCTIONS OPERATING INSTRUCTIONS OPERATION INSTRUCTIONS CAUTION WARNING DANGER! Do not attempt to operate until you FOR OUTDOOR USE ONLY have read and understand all General Very hot while in operation! Safety Information in this manual and CARBON MONOXIDE HAZARD Do not touch Table Top or Burner all assembly is complete and lea Never use this inside a house, or other...
- Page 18 OPERATION INSTRUCTIONS Leak Check WARNING FOR YOUR SAFETY Be careful when attempting to manually ignite this fire pit. Holding in the control know for more than 10 seconds before igniting the gas will cause a ball of flame upon ignition. When fire pit is ON: Burner will display tongues of blue and yellow flame.
-
Page 19: Care And Maintenance
CARE AND MAINTENANCE Leak Check... -
Page 20: Troubleshooting
TROUBLESHOOTING Leak Check Warranty And Reviews Extend Your Warranty By Leaving A Review We want your opinion about your purchase...and we want you to tell everyone about it! Just leave a review for the product on the retailers website where you made your purchase, or at paramount.com, and fill in the online warranty at www.mountathome.com/warranty to receive a complimentary extra year of warranty protection. - Page 21 IMPORTANT For questions, concerns or problems with our product please Si vous éprouvez des dicultés, ou si vous avez des questions ou des email our customer service department: préoccupations, prière de faire parvenir un courriel à notre Service à la clientèle customercare@jrhome.com customercare@jrhome.com DATED PROOF OF PURCHASE REQUIRED FOR WARRANTY SERVICE...
