Summary of Contents for Paramount Fitness FPT19134

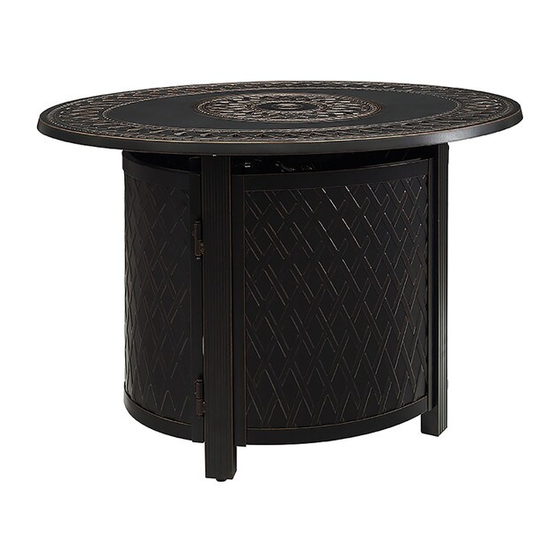

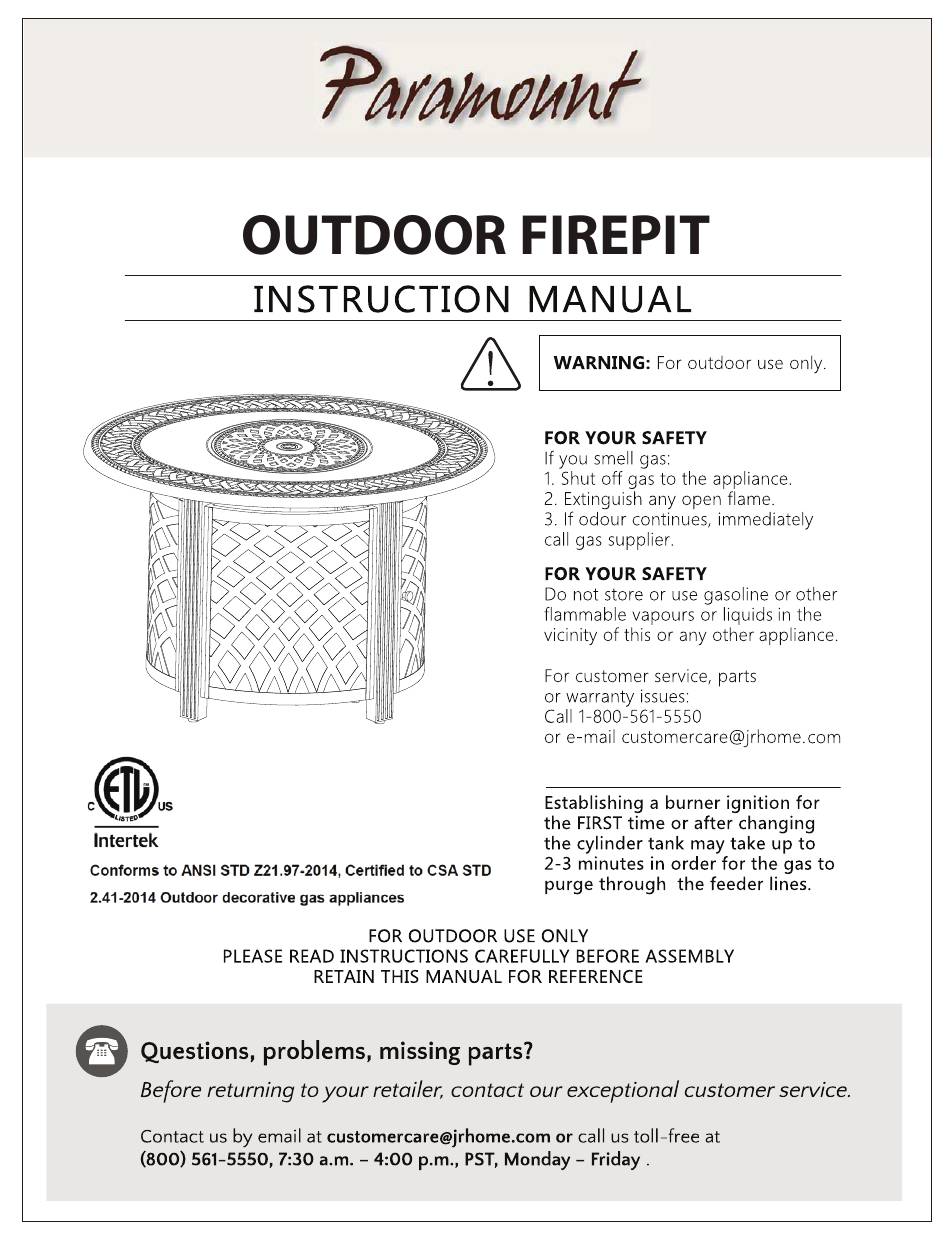

- Page 1 Model#：FPT19134 / ULC-PY12A-E Item#：FP-452...
- Page 2 Page 3 Page Page 5- Page 1 WARRANTY...
-
Page 3: Package Contents
PACKAGE CONTENTS PART DESCRIPTION QUANTITY Removable Burner Cover Burner Table Top Back Panel Door Frame Leg Support Leg Tank Support Bar Tank Support Ring Protective Cover Fire Glass... -
Page 4: Hardware Contents
HARDWARE CONTENTS Washer M6 Washer/Spring Washer/ Bolt 6x16mm Spring Washer (M6) Stud (6x40mm) Stud (8x30mm) Nut (8mm) Qty: 6 Qty: 18 Qty 13 Qty 13 Qty 5 Qty 5 (12 for assy. +1 extra) (12 for assy. +1 extra) (5 for assy. +1 extra) (17 for assy. - Page 5 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS 1. NOTE: It is best to use TWO PEOP E for assembly of this gas fire pit. Assemble the fire pit base: Locate Door Panel D, three Side Panels E/F Door Frame Leg G, and 2 Support Legs H.Screw Studs O into the holes in the sides of all four legs, including the leg pre-assembled to the door.
- Page 6 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS 3. Turn the assembled panels down,then attach Tank Support Bar H to Panel E by aligning holes at each end of Tank Support Bar with holes at the bottom of Panel . Insert bolt P through Washer Q into holes,tighten loosely with Allen Wrench W.
- Page 7 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS Place the Burner B into the hole in the Table Top C, rotated slightly to face the left side of the door opening. Unscrew the igniter button and insert a AAA Battery with positive end facing out. Screw the button back onto the control panel.
- Page 8 ASSEMBLY INSTRUCTIONS Standard 20 lb. tank...
- Page 9 ASSEMBLY INSTRUCTIONS...
-
Page 10: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Wait until the propane cylinder warms up and becomes Propane cylinder is frosted over unfrosted Burner will not light Clear blockage Control knob is not in ON position Turn control knob to ON Gas pressure is low Turn cylinder valve OFF and replace cylinder Outdoor temperature is less than Use a full cylinder... - Page 11 IMPORTANT For questions, concerns or problems with our product please Si vous éprouvez si vous avez des questions ou des email our customer service department: préoccupations, prière de faire parvenir un courriel à notre service à la clientèle customercare@jrhome.com customercare@jrhome.com DATED PROOF OF PURCHASE REQUIRED FOR WARRANTY SERVICE UNE PREUVE D’ACHAT DATÉE EST REQUISE POUR SE PRÉVALOIR DE LA GARANTIE.
