What's in the shipping package?
The package includes the following items:

Installing Windows Driver

Step 1: Setup the Windows driver. The driver is located at:

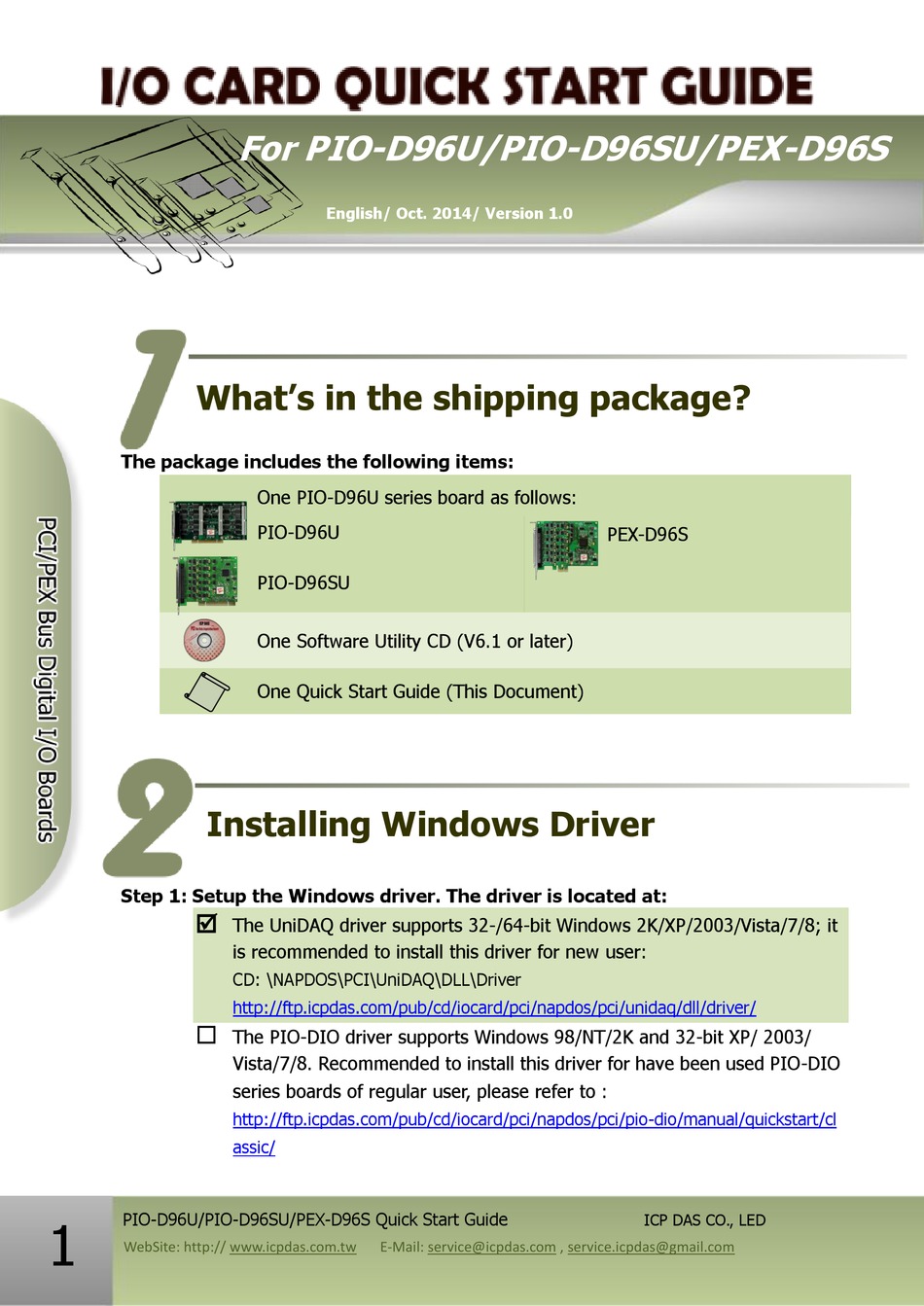

PIO-D96U/PIO-D96SU/PEX-D96S Quick Start Guide
1
WebSite: http:// www.icpdas.com.tw
For PIO-D96U/PIO-D96SU/PEX-D96S
English/ Oct. 2014/ Version 1.0
One PIO-D96U series board as follows:
PIO-D96U
PIO-D96SU
One Software Utility CD (V6.1 or later)
One Quick Start Guide (This Document)
The UniDAQ driver supports 32-/64-bit Windows 2K/XP/2003/Vista/7/8; it
is recommended to install this driver for new user:
CD: \NAPDOS\PCI\UniDAQ\DLL\Driver
http://ftp.icpdas.com/pub/cd/iocard/pci/napdos/pci/unidaq/dll/driver/
The PIO-DIO driver supports Windows 98/NT/2K and 32-bit XP/ 2003/
Vista/7/8. Recommended to install this driver for have been used PIO-DIO
series boards of regular user, please refer to :
http://ftp.icpdas.com/pub/cd/iocard/pci/napdos/pci/pio-dio/manual/quickstart/cl
assic/
E-Mail: service@icpdas.com , service.icpdas@gmail.com

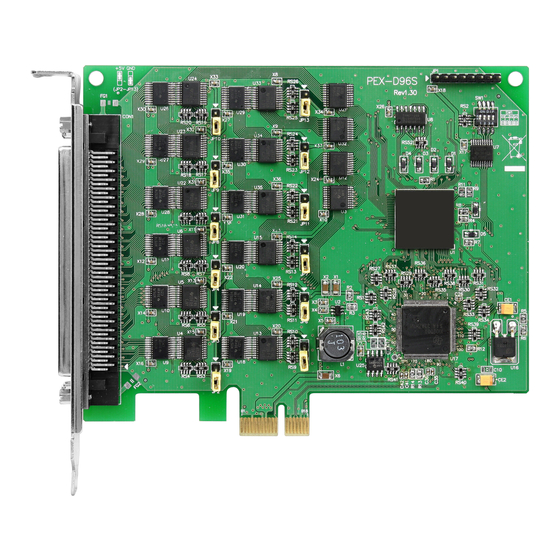

PEX-D96S
ICP DAS CO., LED

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PIO-D96U and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ICP DAS USA PIO-D96U

Summary of Contents for ICP DAS USA PIO-D96U

  • Page 1 For PIO-D96U/PIO-D96SU/PEX-D96S English/ Oct. 2014/ Version 1.0 What’s in the shipping package? The package includes the following items: One PIO-D96U series board as follows: PIO-D96U PEX-D96S PIO-D96SU One Software Utility CD (V6.1 or later) One Quick Start Guide (This Document) Installing Windows Driver Step 1: Setup the Windows driver.
  • Page 2 After powering-on the computer, please finish the Plug&Play steps according to the prompted messages. For detailed information about the driver installation, please refer to Chapter 3 “Hardware Installation” of the user manual. PIO-D96U/PIO-D96SU/PEX-D96S Quick Start Guide ICP DAS CO., LED WebSite: http:// www.icpdas.com.tw E-Mail: service@icpdas.com , service.icpdas@gmail.com...
  • Page 3 PA20-27: Port6; PB20-27: Port7; PC20-27: Port8 PA30-37: Port9; PB30-37: Port10; PC30-37: Port11 PIO-D96U: CON1: PA0-7(Port0); PB0-7(Port1); PC0-7(Port2) CN1: PA0-7(Port3); PB0-7(Port4); PC0-7(Port5) CN2: PA0-7(Port6); PB0-7(Port7); PC0-7(Port8) CN3: PA0-7(Port9); PB0-7(Port10); PC0-7(Port11) PIO-D96U/PIO-D96SU/PEX-D96S Quick Start Guide ICP DAS CO., LED WebSite: http:// www.icpdas.com.tw E-Mail: service@icpdas.com , service.icpdas@gmail.com...
  • Page 4 Self-Test Self-test wiring of the PIO-D96U as follows:  1. Use the DN-37 (optional) to connect the CON1 on the board. PIO-D96U 2. Connect the Port0 (PA0~PA7) with Port1 (PB0~PB7). PIO-D96U/PIO-D96SU/PEX-D96S Quick Start Guide ICP DAS CO., LED WebSite: http:// www.icpdas.com.tw...
  • Page 5 Self-test wiring of the PIO-D96SU/PEX-D96S as follows:  1. Use the DN-100 (optional) to connect the CON1 on the board. PIO-D96SU/PEX-D96S 2. Connect the Port0 (PA00~PA07) with Port1(PB00~PB07). PIO-D96U/PIO-D96SU/PEX-D96S Quick Start Guide ICP DAS CO., LED WebSite: http:// www.icpdas.com.tw E-Mail: service@icpdas.com , service.icpdas@gmail.com...
  • Page 6 4. Execute the UniDAQ Utility Program. Double-Click Click this button to start test. Confirm the PIO-D96 series card successfully installed to PC. It start s from PIO-D96U/PIO-D96SU/PEX-D96S Quick Start Guide ICP DAS CO., LED WebSite: http:// www.icpdas.com.tw E-Mail: service@icpdas.com , service.icpdas@gmail.com...
  • Page 7 Select the “Port 1” Click “Digital Input” item. The corresponding D/I becomes red for channel 0, 2, 4, 6 of D/O is ON. Select the “Port 0” -Complete- PIO-D96U/PIO-D96SU/PEX-D96S Quick Start Guide ICP DAS CO., LED WebSite: http:// www.icpdas.com.tw E-Mail: service@icpdas.com , service.icpdas@gmail.com...
  • Page 8 Related Information PIO-D96U/PIO-D96SU/PEX-D96S Series Card Product Page:  http://www.icpdas.com.tw/product/solutions/pc_based_io_board/pci/pio-d96.html DN-37, DN-100, CA-3710 and CA-SCSI100-15 page (optional):  http://www.icpdas.com/products/DAQ/screw_terminal/dn_37.htm http://www.icpdas.com/products/DAQ/screw_terminal/dn_100.htm http://www.icpdas.com/products/Accessories/cable/cable_selection.htm Documentation:  CD:\NAPDOS\PCI\PIO-DIO\Manual\ http://ftp.icpdas.com/pub/cd/iocard/pci/napdos/pci/pio-dio/manual/ Software:  CD:\NAPDOS\PCI\UniDAQ\DLL\ http://ftp.icpdas.com/pub/cd/iocard/pci/napdos/pci/unidaq/dll/ PIO-D96U/PIO-D96SU/PEX-D96S Quick Start Guide ICP DAS CO., LED WebSite: http:// www.icpdas.com.tw E-Mail: service@icpdas.com , service.icpdas@gmail.com...
