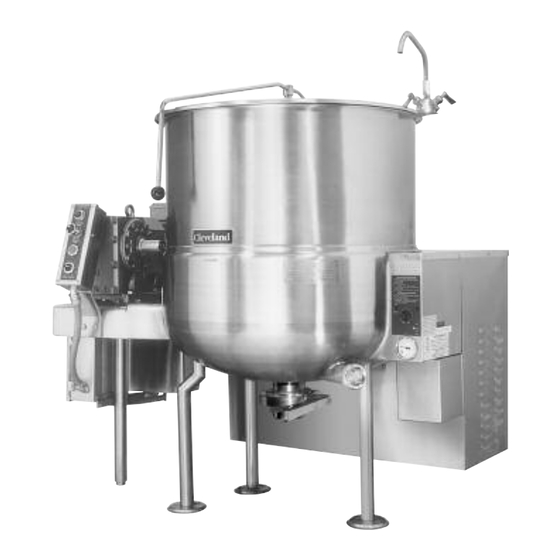

Cleveland HA-MKGL-100 Specifications

™
Cleveland
MIXER KETTLES
MIXER KETTLES, GAS-FIRED
HORIZONTAL AGITATOR
2/3 STEAM JACKETED, STATIONARY
Cleveland Standard Features
I 60, 80 or 100 gallon working capacity
I Type 304 stainless steel with #4 finish on kettle and
supports
I Precise solid state temperature control
I Solid state low water safety controls in a plug-in module
I L.E.D. indicators for heat cycle and low water warning
I 3˝ dia. butterfly valve
I Three (3) horse power horizontal agitator drive
I Variable mixer speed control from 5 to 20 r.p.m. with
agitator start/stop controls
I Spring loaded teflon blades scrape the entire heated
surface area
I Internal mixing fins for most efficient, uniform mixing
of products
I Easily removable agitator without the use of tools
I 190 M-BTU high efficiency power burner heating
system for fast heat-up and recovery times
I "Glow type" automatic safety ignition system
I Kettle steam jacket permanently filled with treated
distilled water
I 50 psi steam jacket rating and safety valve
I Front mounted combination pressure-vacuum gauge
I Heavy duty welded rim bar
I Water fill faucet with swing spout for hot and cold water
I Faucet mounting bracket.
I Spring assisted, hinged stainless steel cover
I Standard for Natural Gas operation
I Standard Electrical for agitator drive is 208V/3Ph/60Hz
I Accepted for use in USDA inspected facilities
I Typical approvals include AGA, CSA, CE, NSF and
ASME
Options & Accessories
Ë Type 316 stainless steel kettle liner for high acid products (316)
Ë Dolly for horizontal agitator
Ë Automatic water meter (GMF or LMF) Wall or stand
mounted
1333 East 179 St.,
Cleveland, Ohio, U.S.A. 44110
Tel: 1-216-481-4900 Web Site: www.ClevelandRange.com
Fax: 1-216-481-3782 Email: Steam@ClevelandRange.com
MODELS: HA-MKGL-60
HA-MKGL-80
Short Form Specifications
Shall be CLEVELAND Model HA-MKGL- ____ , gas fired, 2/3 steam
jacketed, ____ gallon operating capacity, stationary
horizontal agitator mixer kettle. 190M BTU High Efficiency Power
Burner heating system with automatic Glow Type Ignition,
type 304 stainless steel with #4 finish on kettle and supports,
insulated Heat Exchanger, 50 psi jacket rating, 3HP Motor Drive
for mixer arm with variable speed control, variable temperatures
control, L.E.D. indicators for heat cycle and low water warning,
3" dia. Butterfly Valve.
Ë 3" diameter air operated flush mounted piston draw-off
valve with variable control (FPVA3, for use with a food
pump, replaces 3˝ butterfly valve, requires air
compressor)
Ë Stainless steel bi-fold hinged cover
Ë Kettle Accessory Kit (KAK) includes:
Ë Clean-up Brush (CB) Ë 36" Kettle Paddle (KP)
Ë 36" Kettle Whip (KW) Ë 36" Kettle Brush (KB)
Ë Draw-off Brush (DB) Ë 24 oz. Ladle (KL)
Ë Option for propane gas operation (PG)
Ë Voltage option for agitator drive other
than standard 208V/3Ph/60Hz
Project ________________________________
Item __________________________________
Quantity _______________________________
FCSI Section ____________________________
Approval _______________________________
Date __________________________________
HA-MKGL-100
XI 23
SECT. PAGE
0707
