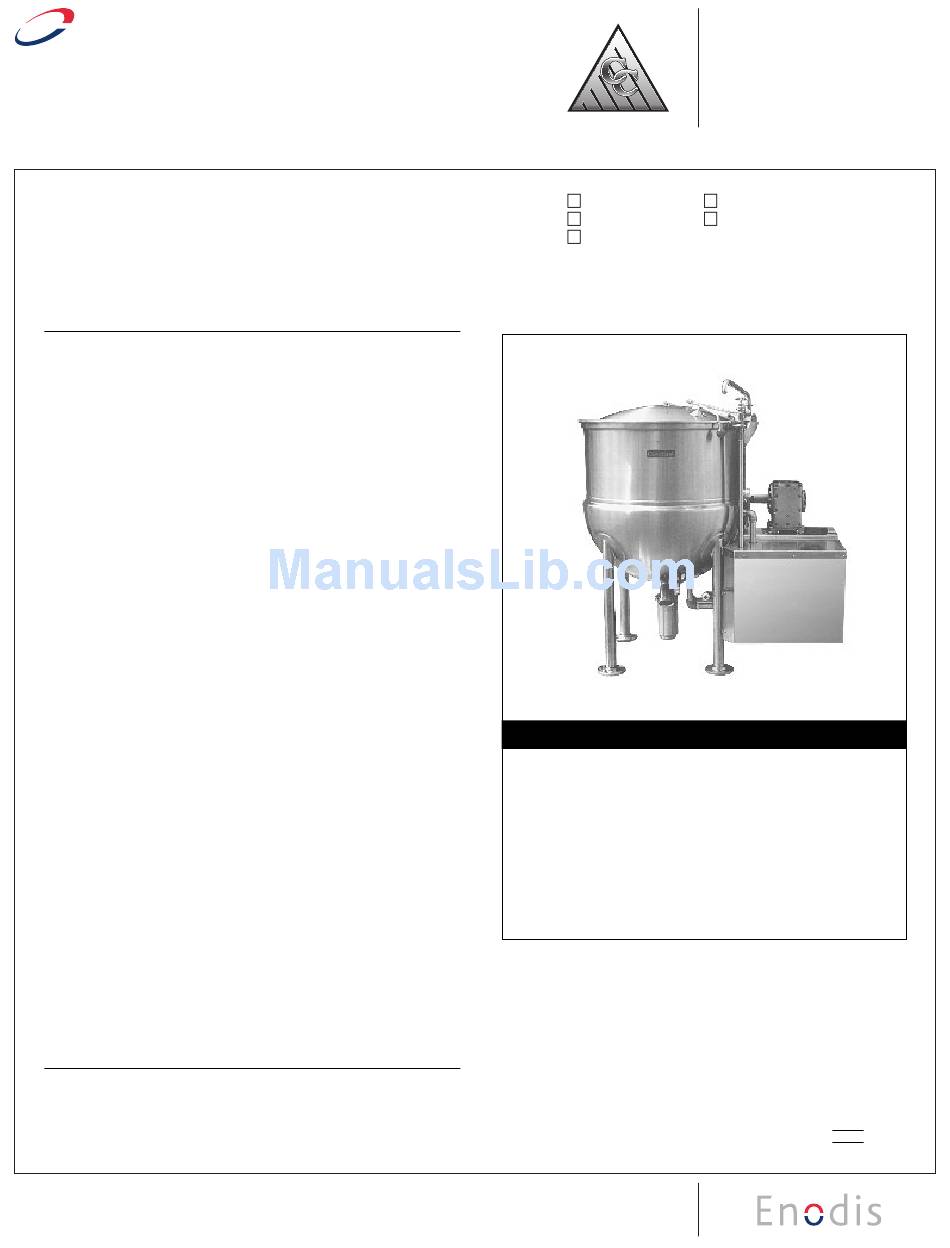

Cleveland HA-MKDL-100-CC Specifications

™
Cleveland
COOK CHILL SYSTEMS
COOK/CHILL
HORIZONTAL AGITATOR
STATIONARY MIXER KETTLES
Cleveland Standard Features
I Full 60, 100, 150, 200 or 300 gallon working capacity
I Electrically driven, Horizontal Agitator Mixer Arm
I Variable mixer speed control
I Spring loaded blades scrape entire heated surface area
I Internal mixing fins for most efficient, uniform mixing, heating
and cooling
I Flush mounted, easily removable temperature probe
I Simmer control for cooking delicate products
I 3" diameter air operated, flush mounted piston draw-off valve
(requires air compressor)
I Spiral flights for even water cooling
I Easily removable agitator without the use of tools
I Spring assist, one piece cover (bifold cover with
counterweight for 300 gallon model)
I Heavy duty rim bar
I 100 psi steam jacket rating and safety valve
I Type 316 stainless steel for all food contact surfaces
I Water fill faucet with swing spout
I Kettle mounted valve box for single point utility connections
I NSF approved
I Accepted for use in USDA inspected facilities
Note: This COOK/CHILL mixer kettle requires a control panel for opera-
tion. (Please specify remote mounted control center or kettle
mounted control center.)
Standard Features for Kettle Control Center:
I Solid State temperature control with digital read-out
I Time/Temperature Chart Recorder to provide permanent record
of Batch Processing
I Automatic and manual steam control
I Automatic and manual jacket water cooling
I Simmer control for delicate products
I Automatic water meter with accumulative "add on" button and
digital readout
I U.L. approved
Options & Accessories
Ë Clean in place (CIP) agitator idler bearing with hot water/steam
connector
Ë Water meter for hot and cold kettle fill
Ë Single or dual remote control center
1333 East 179 St.,
Cleveland, Ohio, U.S.A. 44110
Tel: 1-216-481-4900 Web Site: www.ClevelandRange.com
Fax: 1-216-481-3782 Email: Steam@ClevelandRange.com
Cook/Chill Systems
MODELS: HA-MKDL-60-CC
HA-MKDL-100-CC
HA-MKDL-150-CC
Contact Cleveland Range for kettles over 300 gallons
Short Form Specifications
Shall be CLEVELAND Model HA-MKDL-___-CC; COOK/CHILL
STATIONARY HORIZONTAL MIXER KETTLE, ___ gallons; leg
mounted; 2/3 jacketed, direct steam;100 psi Steam Jacket
Pressure Rating; 316 Stainless Steel Liner; electrically driven
Horizontal Agitator; Variable Mixer Speed Control; 3" diameter air
operated, flush mounted Piston Draw-Off Valve; spring loaded
Scraper Blades; flush mounted Temperature Probe; Automatic
Water Meter with Digital Readout; Water Fill Faucet with swing
spout; Time/Temperature Chart Recorder (located in Control
Center); Spring Assist, one piece Cover (bifold cover with counter-
weight for 300 gallon model).
Ë Kettle mounted control center (100 gal. and larger)
Ë Dolly for horizontal agitator
Ë Stainless steel bifold hinged cover
Ë 3" 90° Elbow
Ë Tilting models
Ë 3" flush mounted ball valve
Ë Loading bucket and dolly
Ë Jacket pressure ratings other than standard
Ë Electric chain hoist for lifting the
product load
Project ________________________________
Item __________________________________
Quantity _______________________________
FCSI Section ____________________________
Approval _______________________________
Date __________________________________
HA-MKDL-200-CC
HA-MKDL-300-CC
XIV
SECT. PAGE
0707
7
