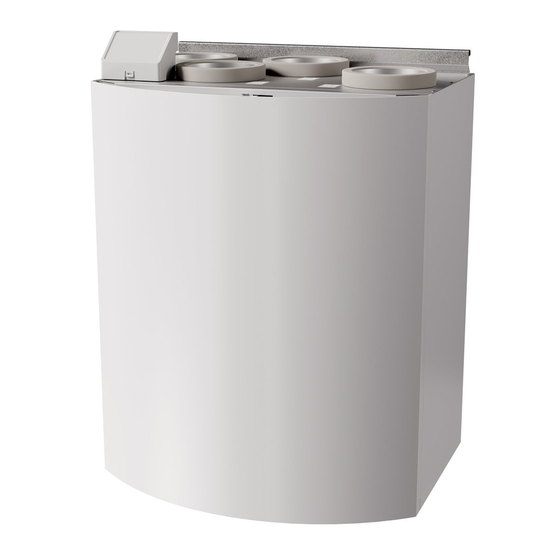

SystemAir SAVE VTR 150/K Installation Instructions Manual
Hide thumbs
Also See for SAVE VTR 150/K:
- User manual (98 pages) ,
- Installation and service (50 pages) ,
- How-to (8 pages)
Related Manuals for SystemAir SAVE VTR 150/K
Summary of Contents for SystemAir SAVE VTR 150/K
- Page 1 SAVE VTR 150/K Installation instructions Document in original language | 254494 · v01...
- Page 2 This also applies to products already ordered, as long as it does not affect the previously agreed specifications. Systemair is not liable or bound by warranty if these instructions are not adhered to during installation or service. 254494 | v01...
-
Page 3: Table Of Contents
Contents Overview ............1 12 EU Declaration of Conformity ......13 General Description ........1 Warranty ..........1 Type label..........1 Important Safety Information ......1 Intended Use.........1 Admonitions .........2 Technical Data ..........2 Electrical data ........2 Dimensions and Weight ......3 Connections Left and Right models.....4 Installation recommendation regarding condensation ........4 3.4.1... -
Page 5: Overview
For the assertion of warranty claims, the products must be correctly connected and operated, and used in accordance with the data sheets. Further prerequisites are a completed maintenance plan with no gaps and a commissioning re- port. Systemair will require these in the case of a warranty claim. Type label Before calling your service representative, make a note of the specification and production number from the type label, which can be found next to the external connections and inside of the unit. -
Page 6: Admonitions
• Risk of injury due to rotating parts that have not come to a complete standstill after mains supply to the unit have been disconnected. Technical Data Electrical data SAVE VTR 150/K come with 500 W or 1000 W installed re-heater battery. 500 W 1000 W Re-heater (W) -
Page 7: Dimensions And Weight
Technical Data | Dimensions and Weight Fig. 2 Dimensions and weight, L model The unit weight is 85 kg. 254494 | v01... -
Page 8: Connections Left And Right Models
| Technical Data Connections Left and Right models Position Description Right hand model (Supply air connection is situated on the right hand side of the unit viewed from the front) Left hand model (Supply air connection panel is situated on the left hand side of the unit viewed from the front) Description Description... -
Page 9: Condensation Outside Of The Unit
Transport and storage The SAVE VTR 150/K should be stored and transported in such a way that it is protected against physical damage. It should be covered so dust, rain and snow cannot enter and damage the unit and its components. -
Page 10: Where/How To Install
Access to Power supply The SAVE VTR 150/K is supplied with approximately 1,5 m cable and plug for 230V, single phase earthed connection. Make sure a power outlet is reachable by the plug. - Page 11 C — concrete/bricks, W — wood block, G — gypsum, M — mineral wool X* — adaptable height according to needs. SAVE VTR 150/K should be installed more than 2,3 m above the floor (or any other needed height). 254494 | v01...
-
Page 12: Ventilation Duct Connection And Insulation
Electrical connections The SAVE VTR 150/K is wired internally from factory. The electrical connection box can be found on the exhaust air outlet side of the unit. The print card can easily be taken out from the unit, without using tools. -
Page 13: Main Circuit Board Layout
Electrical connections | Fig. 4 Main circuit board position Main circuit board layout The SAVE VTR 150/K is equipped with built-in regulation and internal wiring. Fig. 5 Main circuit board connections Position Description Connection to the external connection box Terminals for a heater... -
Page 14: External Connections (Connection Board)
| Electrical connections Position Description Analog input 2 — Supply air sensor Analog input 3 — Freely configurable Analog input 4 — Freely configurable / Overheat temperature sensor (units with heater) Analog input 5 — Freely configurable Digital input 1 — Rotor guard sensor (only for VSR, VTR models) Digital input 2 —... -
Page 15: Before Starting The System
Before Starting the System | Position Description UI1–5 Freely configurable universal input. Can be set as analog input (0–10 V) or a digital input (24 V). UI1 default configuration: Pressure guard UI2 default configuration: Cooker hood UI3 default configuration: Fire alarm UI4 default configuration: Refresh Maximum current 200mA at 24VDC +-10%. -
Page 16: Concluding Routines
| Concluding Routines Set speed of supply and extract air fans for each level. When finished, review your settings. It is possible to go back to previous menus and make modifications. Choose heating type or none. Reset filter changer timer if necessary. Finish startup wizard with OK button. - Page 17 The manufacturer hereby confirms that EN 61000-6-2 SAVE VTR 150/K Electromagnetic compatibility (EMC) – Part 6-2: Generic standards – Immunity for industrial environments. comply with all applicable requirements in the following directives and regulations.
- Page 18 Systemair UAB Linų st. 101 LT–20174 Ukmergė, LITHUANIA Phone +370 340 60165 Fax +370 340 60166 www.systemair.com...
