Cleveland 24-EM-K6-24 Specifications

™
Cleveland
MODULAR BASES

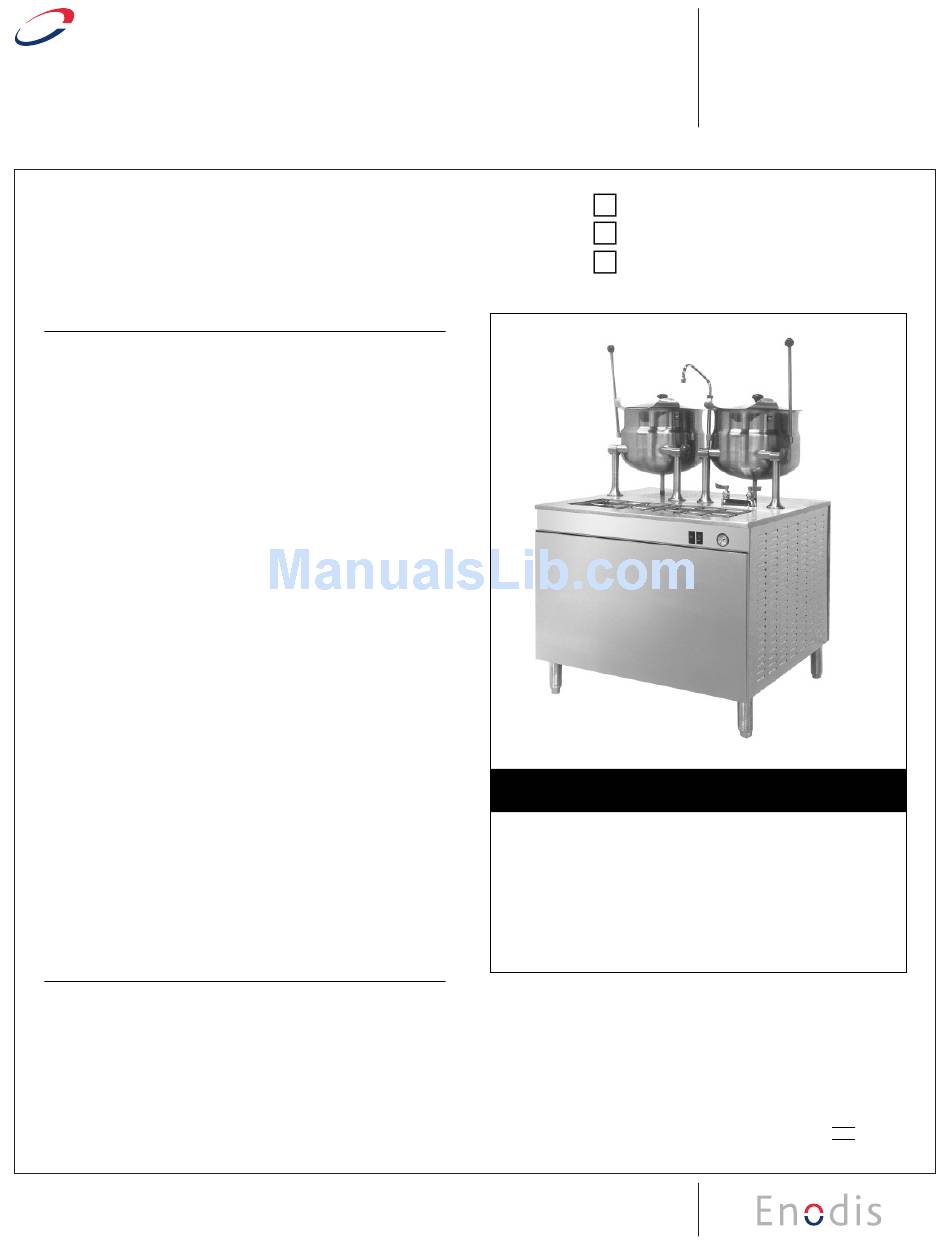

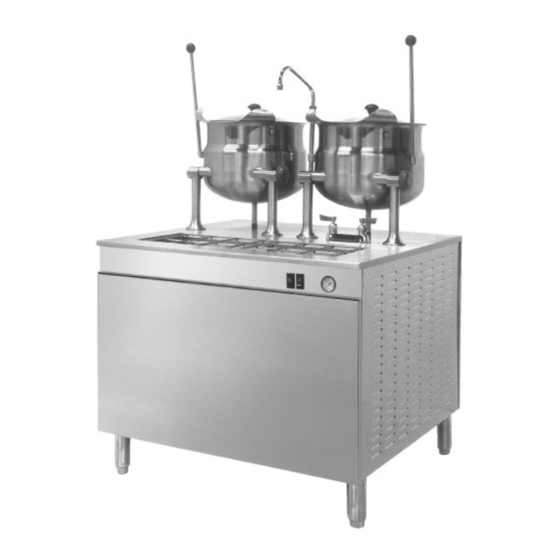

MODULAR BASE WITH KETTLE(S)
24 KW ELECTRIC STEAM GENERATOR
ONE or TWO 6 GALLON KETTLE(S)
CABINET BASE: 24" (600MM) or 36" (900MM) WIDE
Cleveland Standard Features
I Factory assembled Kettle/Steam Generator Base
combination with one or two, 6 gallon kettles with 24 KW
Electric Steam Generator
I Solid State steam generator Water Level Controls
I Low Water Safety Cut-off
I Pressure Limit Controls with 15 psi Safety Valve
I Type 430 Stainless Steel exterior enclosure, and table top
(with Drain Trough which has 1.50" diameter male drain),
#4 exterior finish
I Type 304 Stainless kettle(s), #4 exterior finish
I Separate Start/Rest Illuminated Switch Controls, plus
Pressure Gauge
I Major components serviceable from the front of the unit
I 6 gallon kettle(s) are 2/3 Steam Jacket rating, and include
Lift-off Covers
I Hot and Cold Water Faucet with Swing Spout
I Kettle(s) have 50 psi chrome plated Safety Valve(s) and
Manual Tilting balanced design
I Tilt Handles can be mounted on either side
I Steam Generator empties under pressure (blowdown)
automatically upon each Shut-Down. Automatic Water
Refill on Start-Up
I "Clear access" Lift-Off Front Panel
Ë Secondary Low Water Cut-Off, factory installed (CALE)
(Required for AZ. AR. CA. CO. CT. DE. FL. GA. HI. IL. IA. KS. MD. MA. MI.
MN. MT. NE. NV. NM. NC. OK. OR. PR. RI. TN. UT. VA. WA. WV., Buffalo, NY,
Wash. DC)
I Standard voltage is 208volt, 60 Hz, 3 Phase, 3 Wire
I Adjustable Flanged Feet (FF-A)
Options & Accessories
Ë Power Take-Off Kit (EPTO)
Ë Voltages other than standard
Ë Type 316 Stainless Steel kettle interior for high acid food
products (316)
Ë Food Strainers (FS)
Ë Stainless Steel Base Frame (FSS)
Ë Boiler Descaling Pump Kit (107142)
1333 East 179 St.,
Cleveland, Ohio, U.S.A. 44110
Tel: 1-216-481-4900 Web Site: www.ClevelandRange.com
Fax: 1-216-481-3782 Email: Steam@ClevelandRange.com
MODELS: 24-EM-K6-24
36-EM-K36-24
36-EM-K66-24
Short Form Specifications
Shall be CLEVELAND, Modular Cabinet Base with one or two, 6 gallon ket-
tle(s),Model _____ -EM-K _____ -24,with 24KW Electric Steam Generator; type
430 Stainless Steel exterior enclosure, table top and 4 level adjustable feet.
2/3 Steam Jacketed, type 304 Stainless Steel kettle(s) with 50 psi Steam
Jacket Rating; needle type Steam Control Valve on each kettle. Console
mounted Controls, Pressure Gauge and Illuminated "Start/Reset" Control
Switches. Solid State Water Level Steam Generator Controls. Steam
Generator drains under pressure (blowdown) after each Shut-Down with
Automatic Water Refill on Start-Up. 15 psi Safety Valve.
