Advantech PCIE-1182 Startup Manual

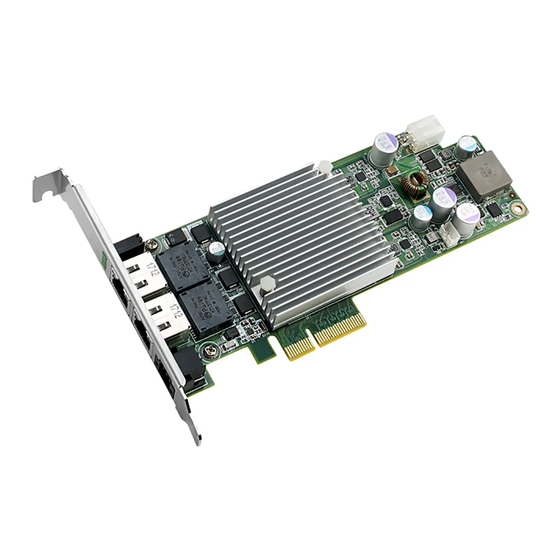

PCIE-1182/81 2/1 port PCI Express 10 GigE Vision
Frame Grabber
Startup Manual
Packing List
Before you begin installing your card, please make sure that
the following items have been shipped:
1. PCIE-1182/81, Dual/Single port 10 GigE Vision Frame
Grabber
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Specifications
General
• Chipset:
Intel X550-AT10GBASE-T MAC and PHY
Compliant with IEEE 802.3, IEEE 802.3u, IEEE802.3ab,
IEEE802.3x, IEEE802.3af, IEEE802.3at
• Interface: PCIE 3.0 4x
• Data Transfer Rate: 10,000/5,000(Linux only)/1,000
Mbps
• Protection:
ESD: 8KV(Air), 6KV(Contact)
EFT: 2KV
Surge protection: 1KV
Note: For better compatibility, please change the
PCIe settings to Gen 3.0 on device card slot.
Mechanical and Environmental
• Dimensions (L x W): 167 x 68.9 mm PCIE low profile
• Power Requirements:
12 VDC direct from PCIe slot, or with optional 12 V
AT/ATX power jack input
PoE+ output 60W (2 port) / 30Watt (1 port), protect by
recoverable eFuse
V output 12 V up to 48Watt (2 port) / 24Watt (1 port),
DC DC
protect by recoverable eFuse
• Net Weight: 300 g
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
For technical support and service, please visit our
support website at:
http://support.advantech.com.tw/support/default.
aspx
This manual is for the PCIE-1182/81.
Part No. 20411182000
Printed in China
Connectors
Main Board Connectors
Ports
RJ Port1 ~ Port 2
Connector1
LED indicators of RJ 45 (Lan) connector
LEDs
Lan LED (In the left of
RJ45 connector)
Link LED (In the right
of RJ45 connector)
Bracket LED indicators
LEDs
DC 1~2(PCIE-1182)
DC 1 (PCIE-1181)
POE 1~2 (PCIE-1182)
POE 1 (PCIE-1181)
DC
1st Edition
April 2020
Function
10 GigE ports 1~2
12V DC output
Description
Green: Ethernet connected
Yellow: 5G/2.5G/1G/100 Mbps
Green: 10G
Description
12V DC output
Power over Ethernet
Figure 1: Bracket LED Indicators
PCIE-1182/81 Startup Manual 1
