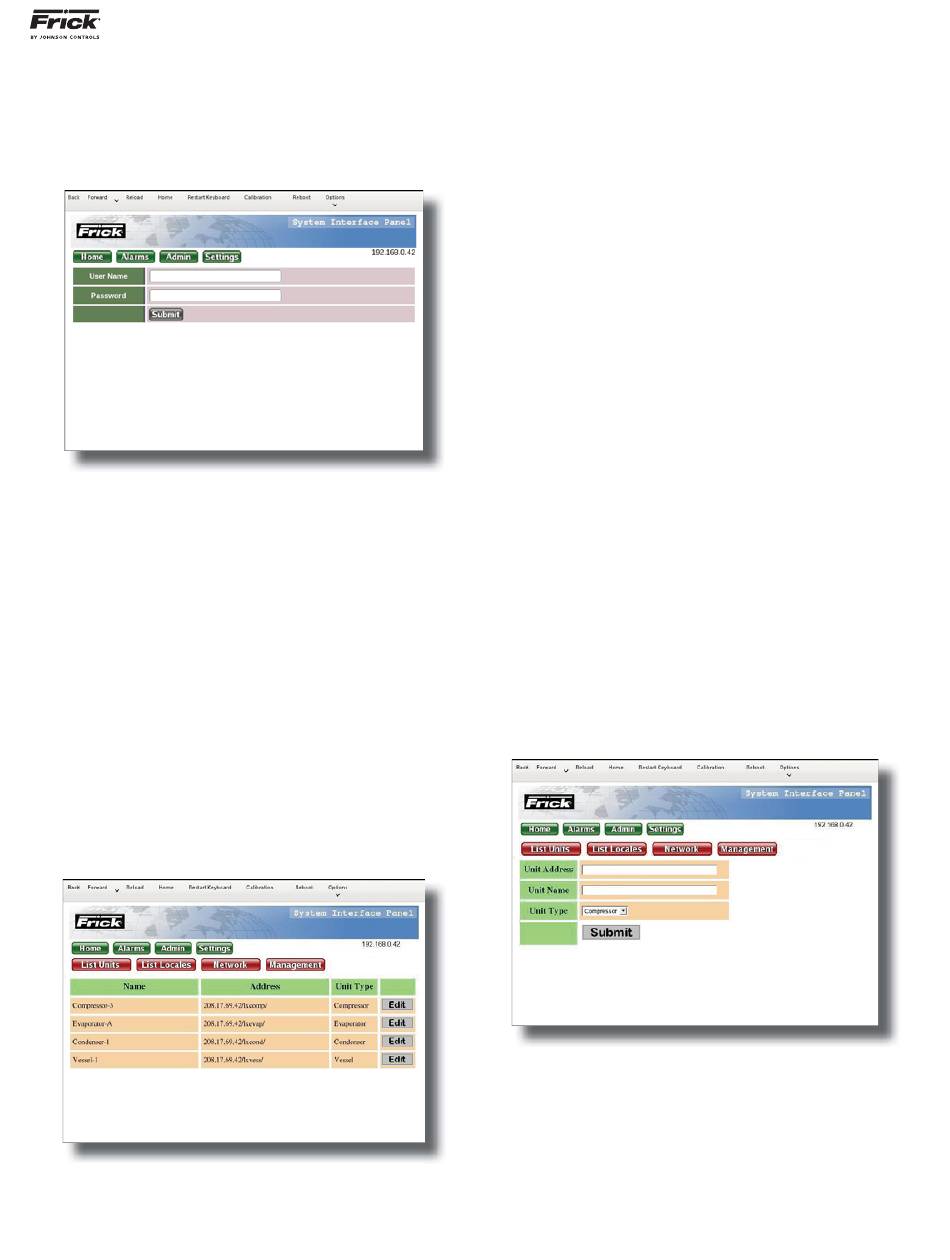

Login Page

To access the Login screen, press the [Admin] but-
ton. The following screen will appear:
The Login screen is similar in appearance and func-
tion as a login screen that network administrators use
for windows based networks, and allows the user to
enter into the administration functions. This Login
screen is only applicable to the function of the touch
screen, and does not affect any of the Quantum™
LX panels that are attached, or the Ethernet network
itself, if attached.
To properly login, the user must fi rst enter their User
Name, which has been pre-assigned as [admin]. The
user is also requested to enter a password, which is
also pre-assigned as [2staycold]. After entering the
proper User Name and Password, press [Submit].

List Page

This page is used to view all the currently confi gured
and recognized Quantum™ LX devices that are con-
nected to this SIP. The NAME, ADDRESS and UNIT
TYPE are shown.
If the SIP has not yet been confi gured, then this f h SIP h
screen will have nothing list for units. If any confi g-
ured units are listed, the Edit button at the end of
each row allows the user to change the confi guration
of a specifi c unit. A row of Admin buttons across the
QUANTUM™ LX SYSTEM INTERFACE PANEL

SIP SCREENS AND SETUP

b fi d h hi
OPERATION
top of the page allow the user to add new units, or
delete units from the list of registered units. Each
unit must have a unique name (no two units can have
the same name) and an IP address (the IP address is
not required to be unique, so more than one link can
redirect the user to the same unit).
also select the type of unit which results in an appro-
priate icon being displayed on the panel Home Page
where all units are listed.

Add Page

Use this page whenever you wish to add a Quan-
tum™ LX device to this Ethernet connection. The se-
lections are:
Unit Address – Enter the IP address of the de-
vice.
Unit Name – Enter a unique name here that
tends to describe the device, such as Compres-
sor 1, or Evaporator Roof 2.
Unit Type – Select from the pull down menu
the type of unit. Selecting the type of unit here,
determines the associated image that will be
shown for the unit on the Home page. The se-
lections are:
AcuAir
Compressor
Evaporator
Condenser
Vessel
When fi nished enter information, press the [Submit] but-
ton.
090.030-O (JULY 12)
Page 9
The user can
