Metasys Integrator® MIG3500 Series
Installation Instructions
MS
MIG3520-0
-
Applications
The Metasys Integrator® MIG3500 Series unit is an
interface device that connects third-party devices to a
Metasys® Building Automation System (BAS). The
MIG3500 uses the same hardware platform as the
Network Automation Engine (NAE) 45, but contains the
firmware of the MIG300 Series Metasys Integrator unit.
See Figure 1.
North American Emissions Compliance
United States
This equipment has been tested and found to comply with
the limits for a Class A digital device pursuant to Part 15 of
the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when
this equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instruction manual, may cause
harmful interference to radio communications. Operation
of this equipment in a residential area is likely to cause
harmful interference, in which case the user will be
required to correct the interference at his/her own
expense.
62
2.5
131
5.2
System Status
Light-Emitting Diodes
(LEDs)

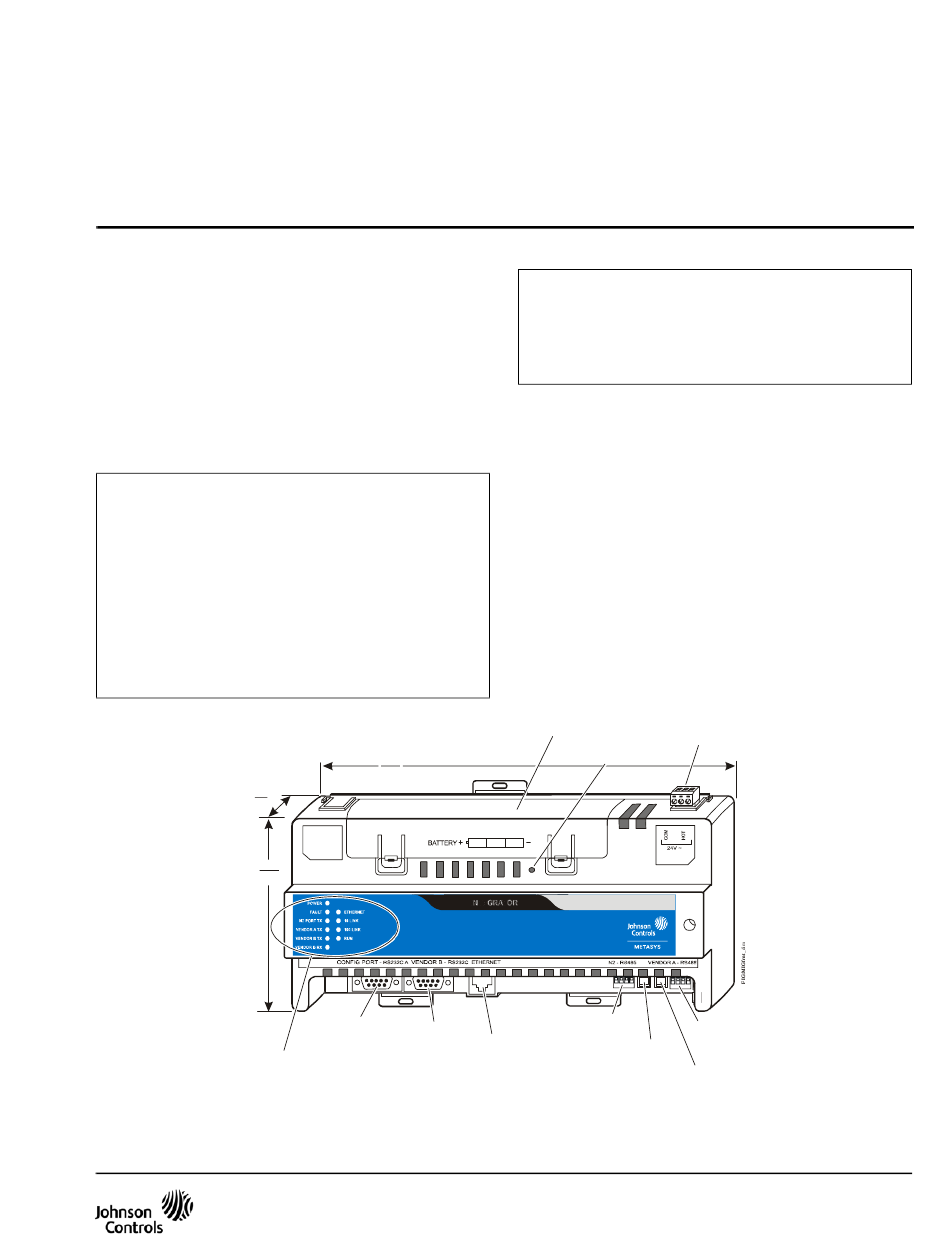

Figure 1: Front of MIG3500 Showing Dimensions, mm (in.), and Physical Features
270
10.6
Config Port - RS-232C
Vendor B
Port
RS232C
(Commissioning)
Port
Metasys Integrator® MIG3500 Series Installation Instructions
Canada
This Class (A) digital apparatus meets all the requirements
of the Canadian Interference-Causing Equipment
Regulations.
Cet appareil numérique de la Classe (A) respecte toutes
les exigences du Règlement sur le matériel brouilleur du
Canada.
Battery
Compartment
Restart Switch
Access Hole
N2 Bus
RS485
RJ-45 8-Pin
Port
N2
Ethernet
End-of-Line
Port
Switch
Part No. 24
10050
30, Rev. A
-
-
Release 10.0
Issued January 27, 2009
Supersedes October 6, 2008
24 VAC
Power Terminal
Vendor A
RS485
Port
RS485B
End-of-Line
Switch
1
