Before You Begin
Get to Know the Physical Features of the Controller
The following sections identify the physical features of the controller that are relevant to the installation and mounting
instructions that this guide provides. Before you begin the installation process, Ruckus Networks strongly recommends that you
become familiar with these physical features.
Front Panel

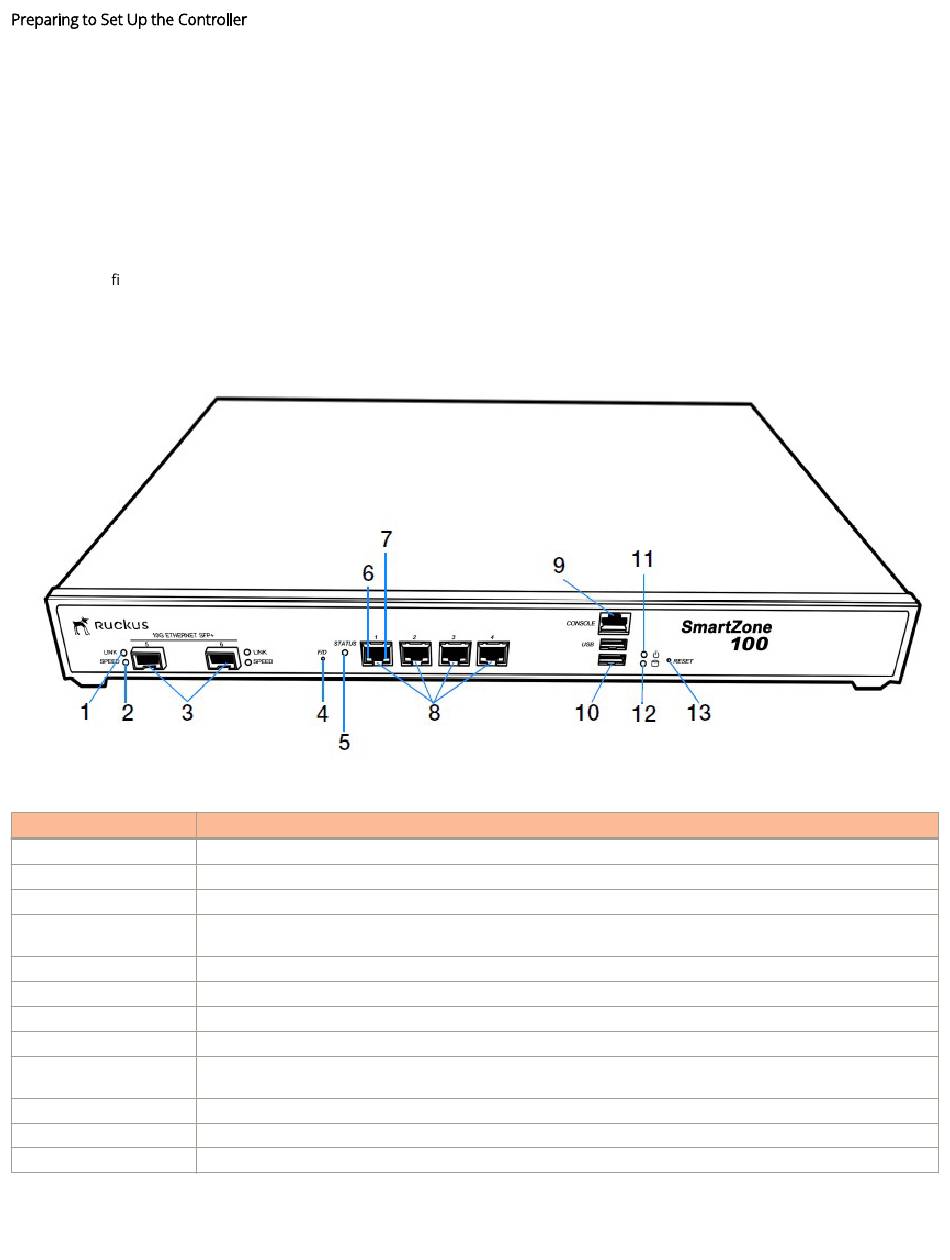

The following gure shows the controller's front panel with the bezel installed. For descriptions of the numbered parts, refer to
the table below.

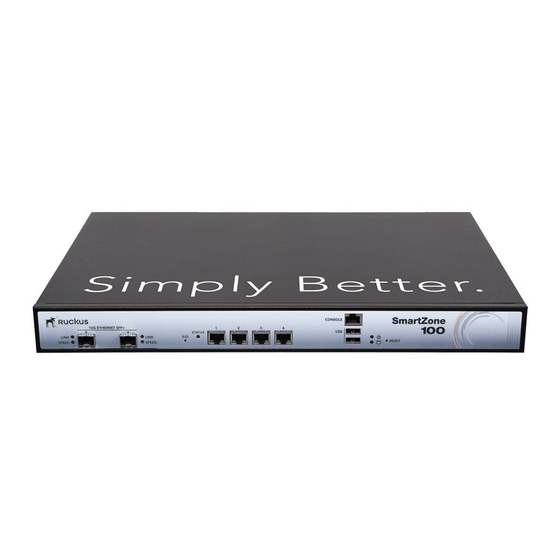

FIGURE 3 The front panel of the SmartZone 100 (SKU P01-S124-WW10)
TABLE 3 Front panel parts
Number
1
2
3
4
5
6
7
8
9
10
11
12
14
Description
10G Ethernet link LED (see LEDs on the Front Panel
10G Ethernet speed LED (see
Two 10GBASE-X (SFP+) ports (SKU P01-S124-WW10 only)
F/D (factory default) button. Press this button for at least 10 seconds to reset the controller to factory default
settings.
Status LED (see LEDs on the Front Panel
1000BASE-T link LED (see LEDs on the Front Panel
1000BASE-T status LED (see LEDs on the Front Panel
Four 1000BASE-T (RJ-45) ports
Console (RJ-45 serial) port. Use the supplied console cable (or any rollover cable, also known as Cisco
cable) to connect this port to another device.
Two USB ports
Power LED (see LEDs on the Front Panel
HDD LED (see LEDs on the Front Panel
on page 15)
LEDs on the Front Panel on page 15)
on page 15)
on page 15)
on page 15 )
on page 15)
on page 15)
™
serial RJ-45
