Model #THD1100
USE AND CARE GUIDE
PRE-PACKAGED SEWAGE BASIN SYSTEM
WITH HEAVY DUTY 1/2 HP SEWAGE PUMP
Questions, problems, missing parts?
Call Everbilt Customer Service
8 a.m. - 7 p.m. EST, Monday - Friday and Saturday 9 a.m. - 6 p.m. EST
1-877-297-6069
HOMEDEPOT.COM
THANK YOU
We appreciate the trust and confidence you have placed in Everbilt through the purchase of this sewage system. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your
home improvement needs. Thank you for choosing Everbilt!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Everbilt THD1100
Summary of Contents for Everbilt THD1100
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Everbilt through the purchase of this sewage system. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ............2 Installation ..............5 Safety Information ............2 Pump Performance Chart ..........8 Warranty ................. 3 Pump Care and Cleaning ..........8 Pre-Installation .............. 4 Troubleshooting ............9 Safety Information PRECAUTIONS WARNING: Extension cords may not deliver 1. -
Page 3: Warranty
Safety Information CAUTION: Know the pump and its applications, WARNING: Do not allow the electrical cord plug to limitations, and potential hazards. be submerged. WARNING: Do not use extension cords. They are a CAUTION: Periodically inspect the pump and fire hazard and can reduce voltage sufficiently to system components to ensure the pump intake is prevent pumping and/or damage the motor. -
Page 4: Pre-Installation
Pre-Installation APPLICATION This submersible sewage basin system is designed for pumping sewage, effluent, wastewater, or flooded water with up to 2 in. diameter solids. The pump is built with overload thermal protections and auto reset. The pump is equipped with a 10 ft. -
Page 5: Installation

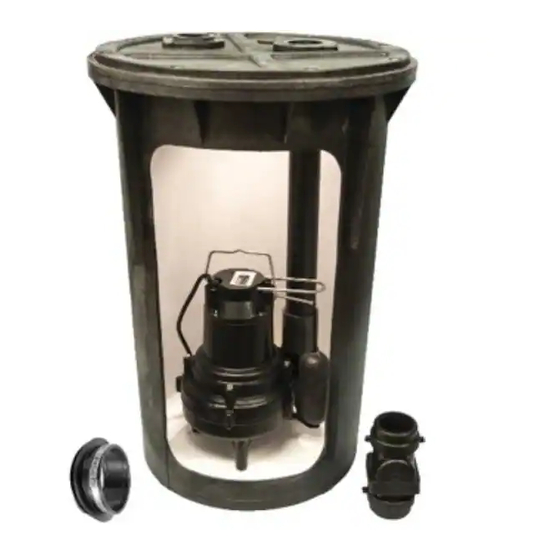

Part Description Basin (with pump and accessories inside) Gas-tight Cover w/Pipe Flanges and Cord Grommet Everbilt Model HDSS50 1/2 HP Cast Iron Sewage Pump 2 in. Discharge Pipe Assembly w/Weep Hole* 2 in. Compression Fit Check Valve 4 in. Snap-In Inlet Hub Reusable Seal *The weep hole prevents the pump from becoming “air-locked”, a condition which will not allow the pump to pump water. - Page 6 Installation Connecting the inlet piping □ The center of the inlet opening is 10.5 in. from the top inside edge of the basin. □ Insert the 4” Snap-In Hub into the inlet hole in the basin so that the basin wall is between the two curved flanges of the hub.
- Page 7 Installation Connecting the discharge piping □ Install a 2 in. PVC Schedule 40 threaded male adapter (not included) into the discharge flange on the top of the cover. Use thread seal tape to seal the threads. Make sure that you are connecting to the sewage pump discharge and not the vent.
-
Page 8: Pump Performance Chart
Pump Performance Chart Care and Cleaning... -
Page 9: Troubleshooting
Troubleshooting WARNING: Before servicing a pump, always shut off CAUTION: Call an electrician when in doubt. The the main breaker and unplug the pump. Under pump should be connected to a separate 15 A flooded conditions, make sure you are not standing in circuit breaker or 15 A fuse block. - Page 10 Questions, problems, missing parts? Call Everbilt Customer Service 8 a.m. - 7 p.m. EST, Monday - Friday and Saturday 9 a.m. - 6 p.m. EST 1-877-297-6069 HOMEDEPOT.COM Retain this manual for future use.
