FRAME IT ALL 700001021-MD350 Installation Instructions

700001021-MD350, 70002021-MD550, 71001021-MD1000
71001021-EC1200, 71002021-MD1250, 71002021-EC1200
72001021-MD1500, 72001021-EC1900, 72001021-EP2000
72002021-EC1900, 72002021-EP2000, 73001021-EC2700
73001021-EP3000, 73002021-EC2700, 73002021-EP3000
1 LEVEL KIT CONTAINS:
•
14 x Composite Timbers 4' Curved
•
28 x Stacking Brackets
•
14 x Anchor/Ground Level Serrated Stakes
•
40 x Plugs/Locking Nubs
•
14 x Caps
•
1 x Rubber Liner
•
1 x Underlayment
•
1 x Water Pump
•
1 x Pump Tubing
IMPORTANT: READ ALL
INSTRUCTIONS BEFORE
STARTING YOUR BUILD!
**NOTE
Stacking stakes should only be used
when stacking boards for water
garden application.
ONLY Stacking Stakes can stack!
Customer Service: 1800-914-9835 |
support@frameitall.com
© Frame It All. All Rights Reserved.
Water Garden
Lagoon
1 LEVEL
Required Tools:
•
Shovel
•
Levelling tool
•
Hammer
Recommended Tools:
•
Pond Safe Foam
Sealant
•
Grading Rake
2 LEVEL KIT CONTAINS:
•
28 x Composite Timbers 4' Curved
•
56 x Stacking Brackets
•
14 x Stacking Stakes (**See Note Below)
•
14 x Anchor/Ground Level Serrated Stakes
•
112 x Plugs/Locking Nubs
•
14 x Caps
•
1 x Rubber Liner
•
1 x Underlayment
•
1 x Water Pump
•
1 x Pump Tubing

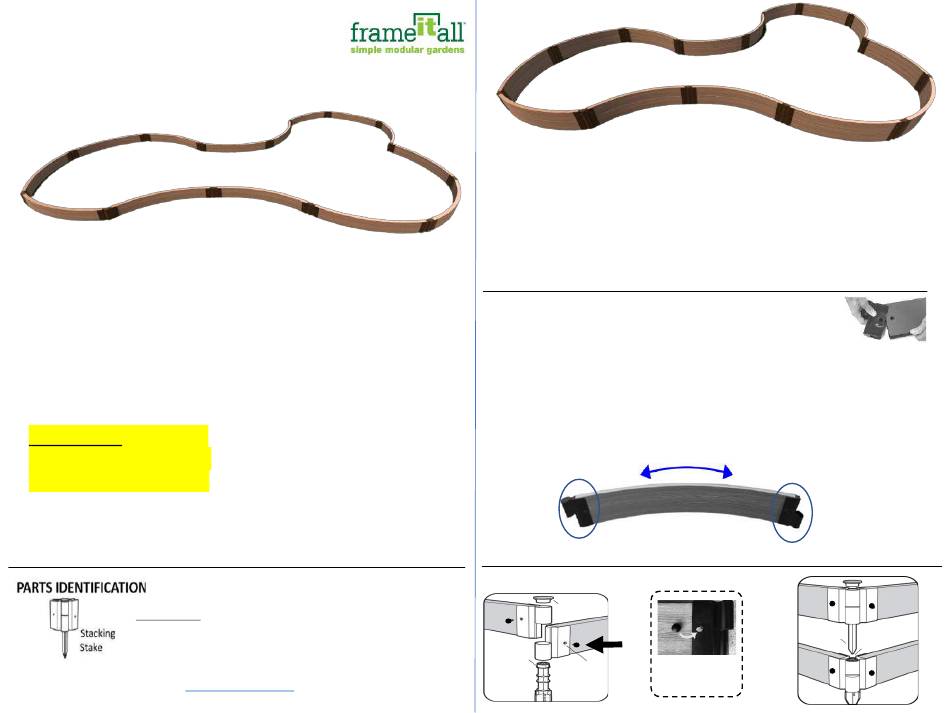

ASSEMBLY INSTRUCTIONS – Building the Frame
STEP 1:
Assemble the curved timbers by sliding one end of the timber into the channel end of one
of the brackets. Use plugs to lock the bracket in place.
Repeat this process on the other end of the timber flipping the bracket in the opposite
direction. Make sure that all your curved timbers have brackets connected in the same
way with relation to the curve.
(see example). Repeat for all curved timbers.
How the Joints Work
Use a Cap to
complete the
top level.
Use anchor
stakes for
ground level
frames and
Use plugs to
Use plugs (included)
stacking stakes
cover the holes
for additional
to cover the holes on
– two plugs are
levels.
required per
both side of timbers
bracket (1 on
each side)
2 LEVELS
Use stacking
stake when
creating a multi-
level
