Connecting The Reader; Figure 14 - Matrix COSEC ATOM RD100 Quick Installation Manual

Connecting the Reader

1. RS-232 connectivity for COSEC Doors - COSEC VEGA, COSEC PATH and COSEC
ARGO.
2. RS-485 connectivity for COSEC ARC.
3. Wiegand connectivity for 3rd party Access Control Panel.
COSEC ATOM RD100

Figure 14

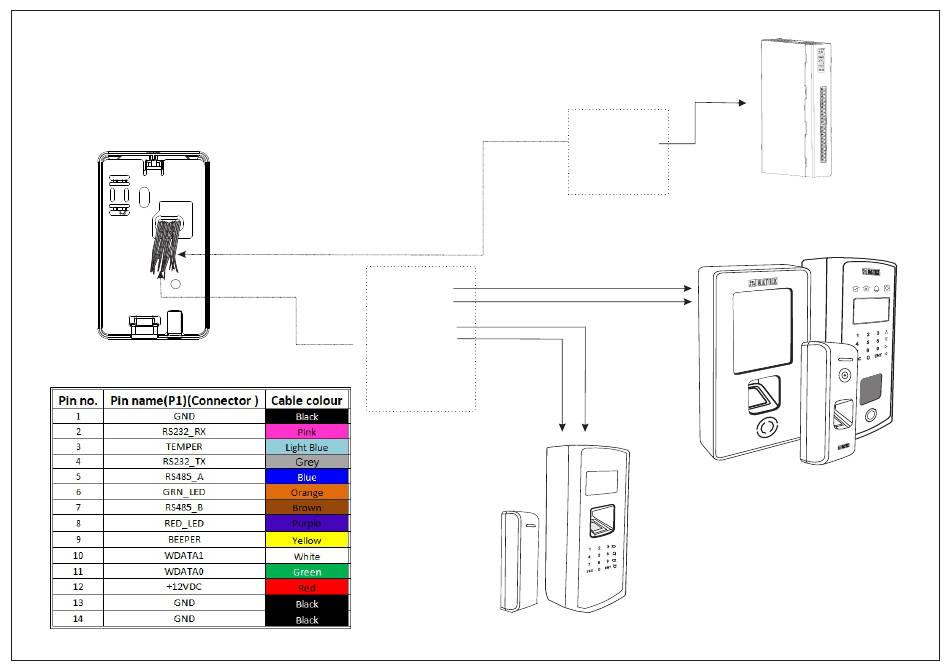

Pin Diagram
17
RS-485
GND Black
RS232 TX Grey
RS232 RX Pink
TEMPER Light Blue
D1
W DATA1 White
W DATA0 Green
D0
BEEPER Yellow
RED LED Purple
GREEN LED Orange
GND Black
+12V_RDR Red
RD
TO 3 PARTY ACCESS CONTROL DEVICES
RS-485 A Blue
RS-485 B Brown
GND Black
+12V_RDR White
GND Black
TO COSEC ARC Controllers
RS-232
Wiegand
Interface
Figure 17
Figure 15
TO COSEC DOORs
Figure 16
