What your Package contains

Ÿ ATOM RD100 Unit (with cable assembly)
Ÿ Wall Mounting Screws (2 nos.)
Ÿ Plastic Screw Grips (2 nos.)

Things You will Need

Ÿ Power Drill
Ÿ Screw Driver Set
Ÿ A Wire Striper
Ÿ Insulation Tape
Ÿ Necessary Cabling
Ÿ Wiegand supported device
Ÿ Access to COSEC Server Application to configure COSEC
ATOM RD100
Before You Start:
Make sure:
Ÿ The device in the package is in good condition and all the
assembly parts are included.
Ÿ All the related equipments are powered-off before installation.
5

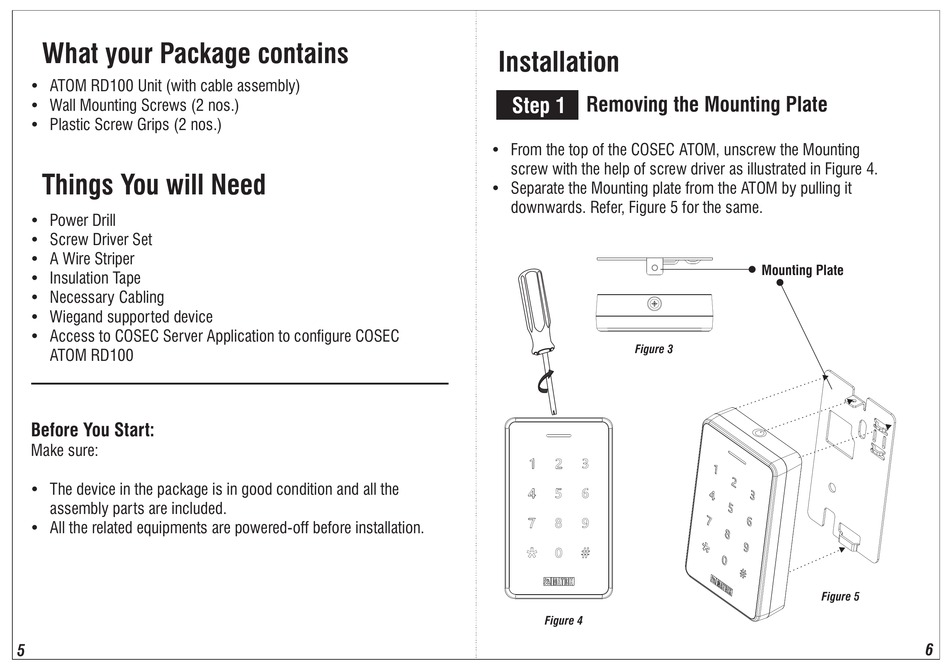

Installation
Removing the Mounting Plate
Step 1
Ÿ From the top of the COSEC ATOM, unscrew the Mounting
screw with the help of screw driver as illustrated in Figure 4.
Ÿ Separate the Mounting plate from the ATOM by pulling it
downwards. Refer, Figure 5 for the same.
Figure 3
Figure 4
Mounting Plate
Figure 5
